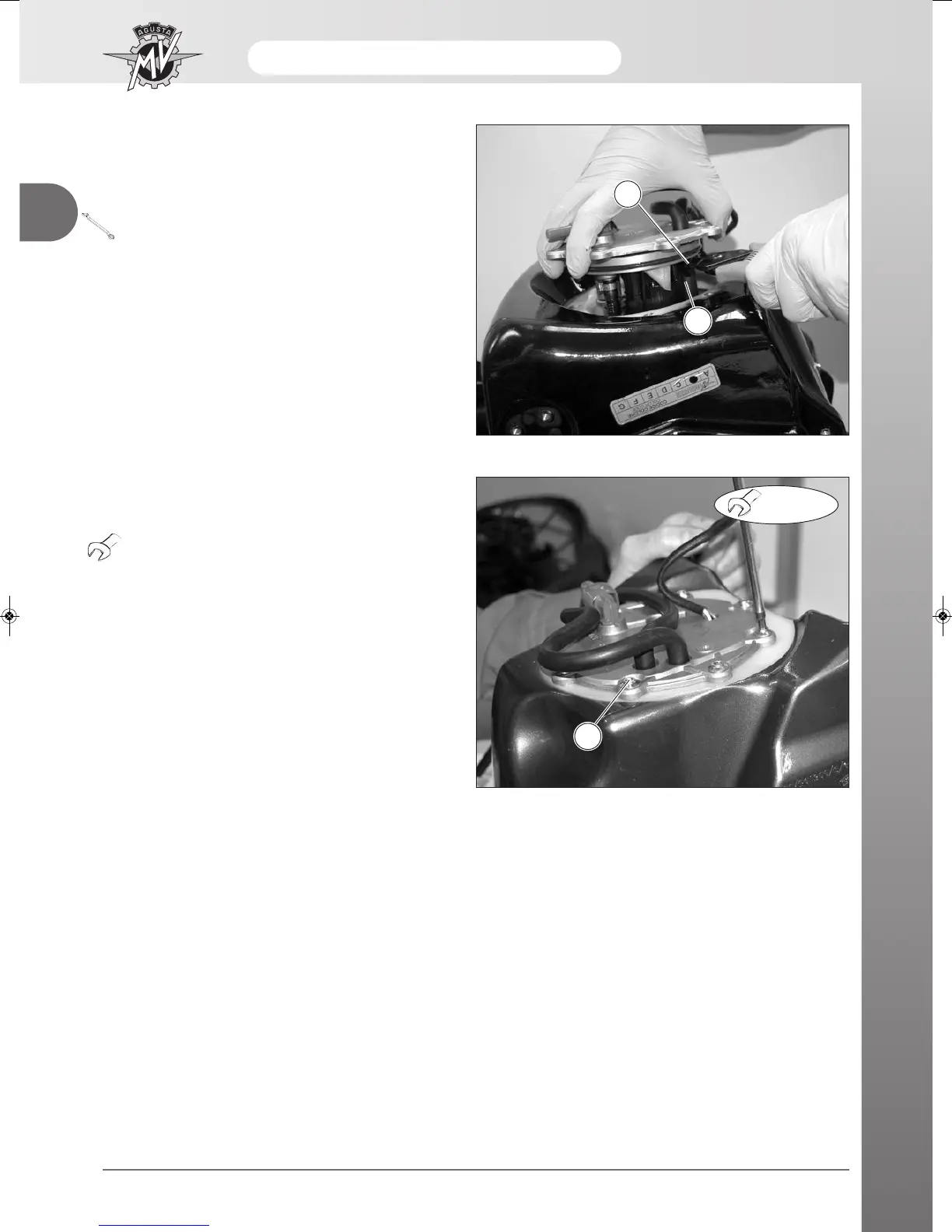

Insert two CLIC R 96 105 band fasteners (1) onto the
small tubes. Insert the two small rubber tubes (2) onto
the appropriate spigot on the die-cast flange. Tighten
the band fasteners by using the CLIC 205 pincers.
Specific pliers: CLIC R 205
Part code 800095850
1
2
Gently press down the flange assembly into its seat
and then tighten the eight locknuts (3).
Torque pressure: 6÷8 N·m
Proceed with the assembly of the parts removed by fol-
lowing the removal operation in reverse order to that
shown in chapter C “Bodywork”.
• Fuel tank
• Rear side panels
• Seats
• Fuel tank side panels
3
6÷8 N•m
