NETGEAR UTM9S Reference Manual

Firewall Protection
140
ProSecure Unified Threat Management (UTM) Appliance

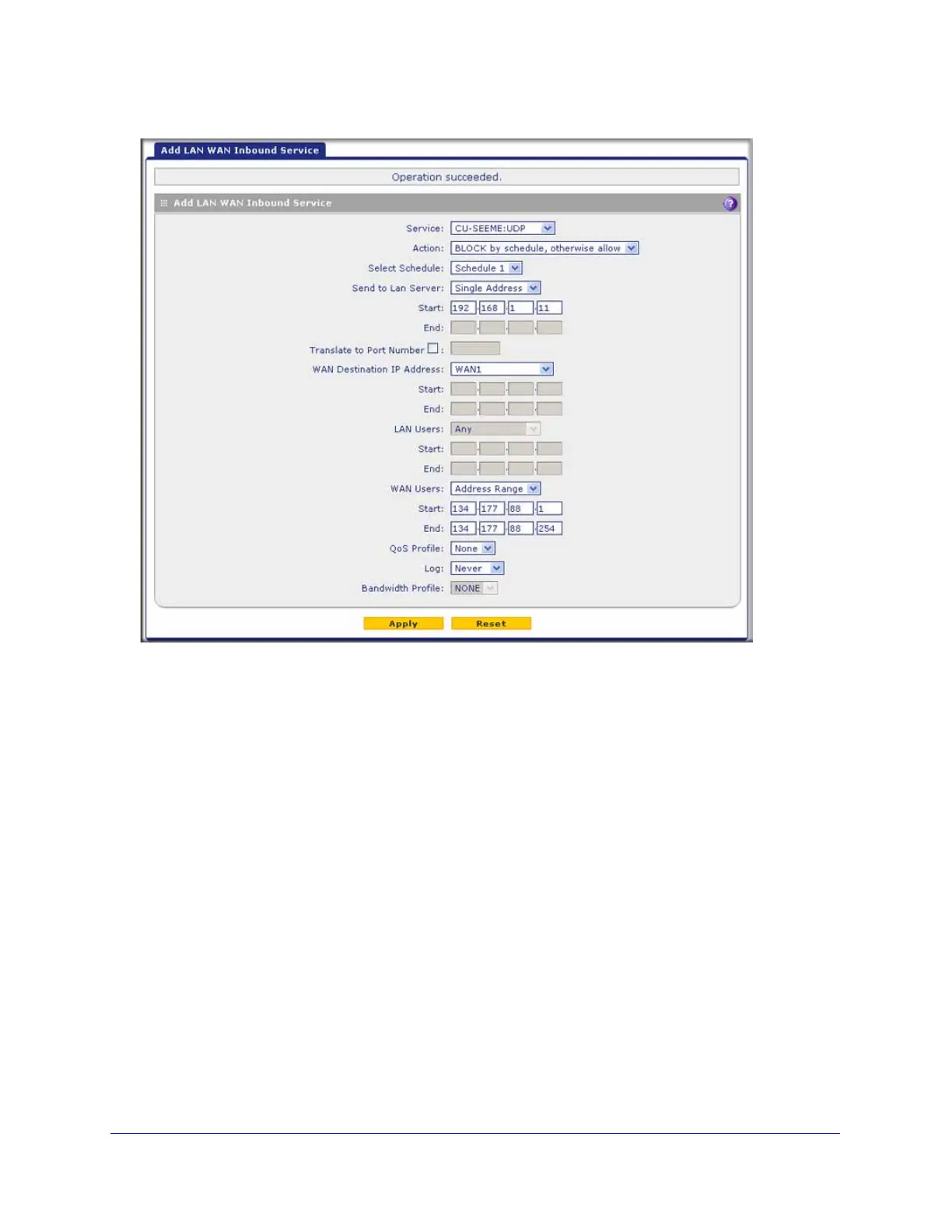

Figure 75.
LAN WAN or DMZ WAN Inbound Rule: Set Up One-to-One NAT Mapping
In this example, multi-NAT is configured to support multiple public IP addresses on one WAN
interface. An inbound rule configures the UTM to host an additional public IP address and
associate this address with a web server on the LAN.
The following addressing scheme is used to illustrate this procedure:
• NETGEAR UTM:
- WAN IP address. 10.1.0.118
- LAN IP address subnet. 192.168.1.1 with subnet 255.255.255.0
- DMZ IP address subnet. 192.168.10.1 with subnet 255.255.255.0
• Web server PC on the UTM’s LAN:
- LAN IP address. 192.168.1.2
- DMZ IP address. 192.168.10.2
- Access to web server is (simulated) public IP address. 10.1.0.52
