ReadyNAS Integration

573

ProSecure Unified Threat Management (UTM) Appliance

Install the UTM9S Add-On on the ReadyNAS

 To install the UTM9S add-on on the ReadyNAS:

1. Start a web browser.

2. In the address field, enter the IP address of the ReadyNAS, for example, enter

https://192.168.168.168. The ReadyNAS web management interface displays.

3. In the User Name field, type admin; in the Password field, type netgear1.

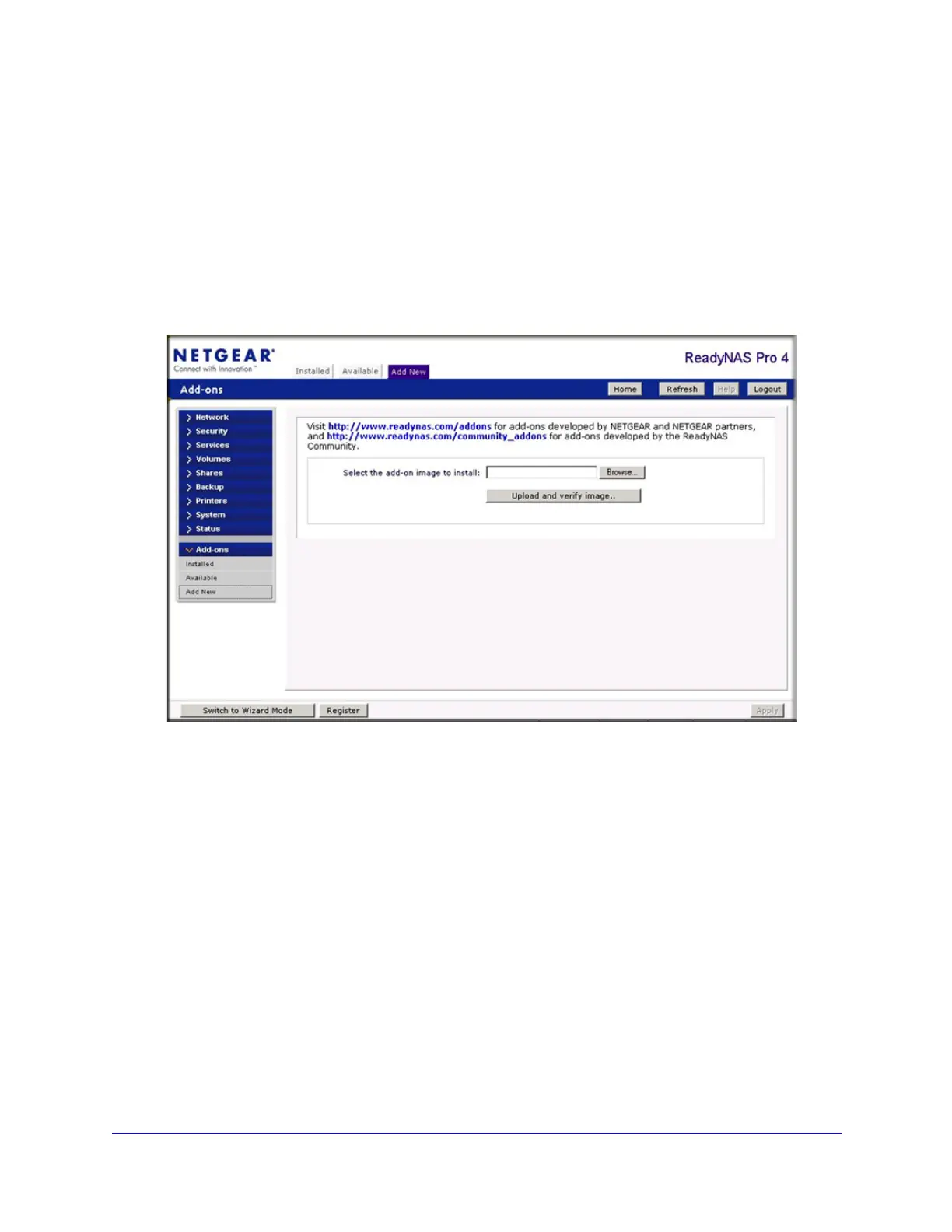

4. Select Add-ons > Add New.

Figure 345.

5. Click Browse. Navigate to and select the UTM9S add-on image.

6. Click Upload and verify image. When the upload is finished and the image has been

verified, the screen adjusts.
