Introduction
31
ProSecure Unified Threat Management (UTM) Appliance
Rear Panel UTM50 and UTM150
The rear panel of the UTM includes a cable lock receptacle, a console port, a factory default
Reset button, and an AC power connection.

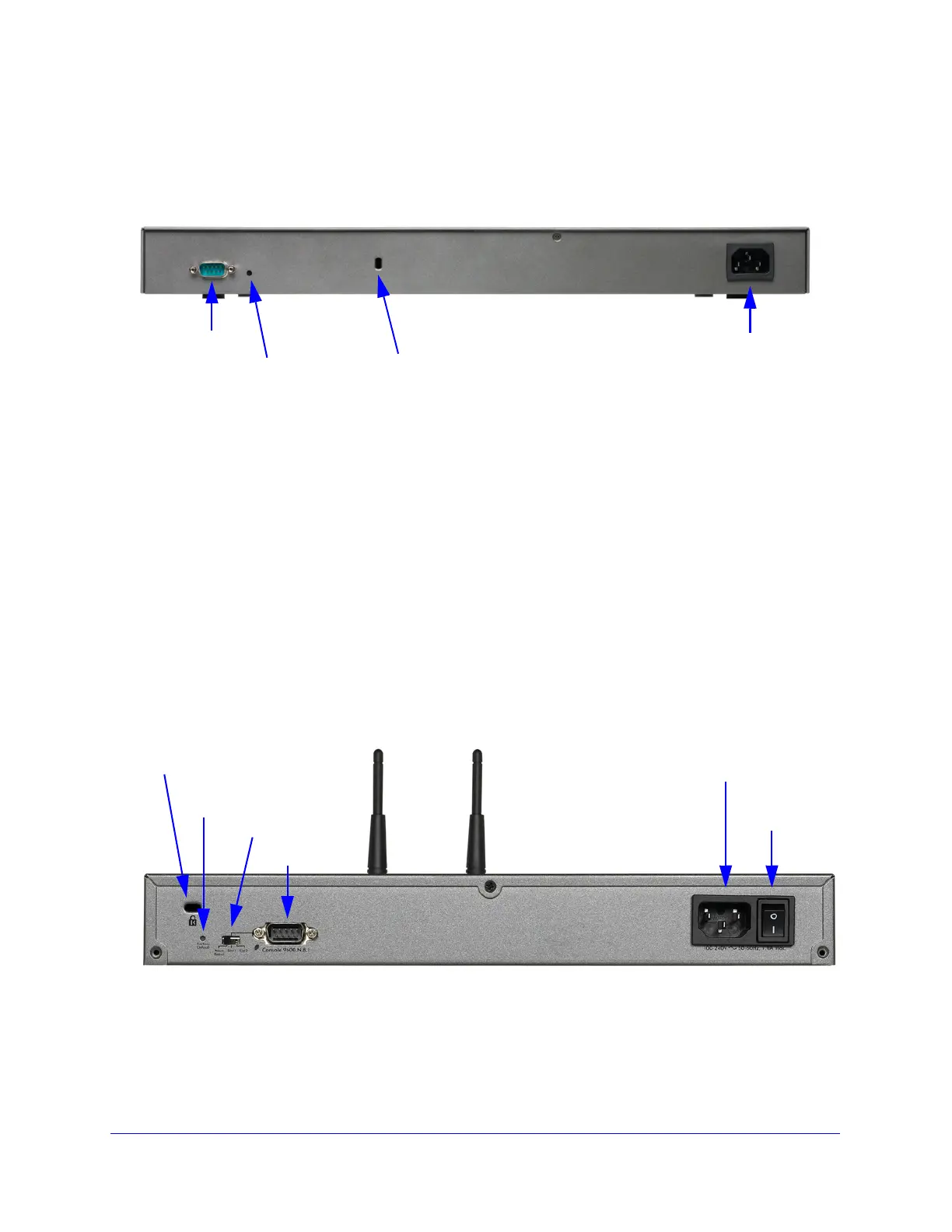

Figure 10. Rear panel of the UTM50 and UTM150
Viewed from left to right, the rear panel of the UTM50 and UTM150 contains the following
components:
1. Console port. Port for connecting to an optional console terminal. The port has a DB9
male connector. The default baud rate is 9600 K. The pinouts are (2) Tx, (3) Rx, (5) and
(7) Gnd.
2. Factory default Reset button. Using a sharp object, press and hold this button for about
8 seconds until the front panel Test LED flashes to reset the UTM to factory default settings.
Configuration changes are lost, and the default password is restored.
3. Cable security lock receptacle.
4. AC power receptacle. Universal AC input (100–240 VAC, 50–60 Hz).
Rear Panel UTM9S
Figure 11. Rear panel of the UTM9S
Security lock
receptacle
Console port
Factory Defaults
AC power
receptacle
reset button
Security lock
receptacle
Console port
Factory Defaults
AC power
receptacle
reset button
Console switch
Power
switch
