ProSecure Unified Threat Management (UTM) Appliance

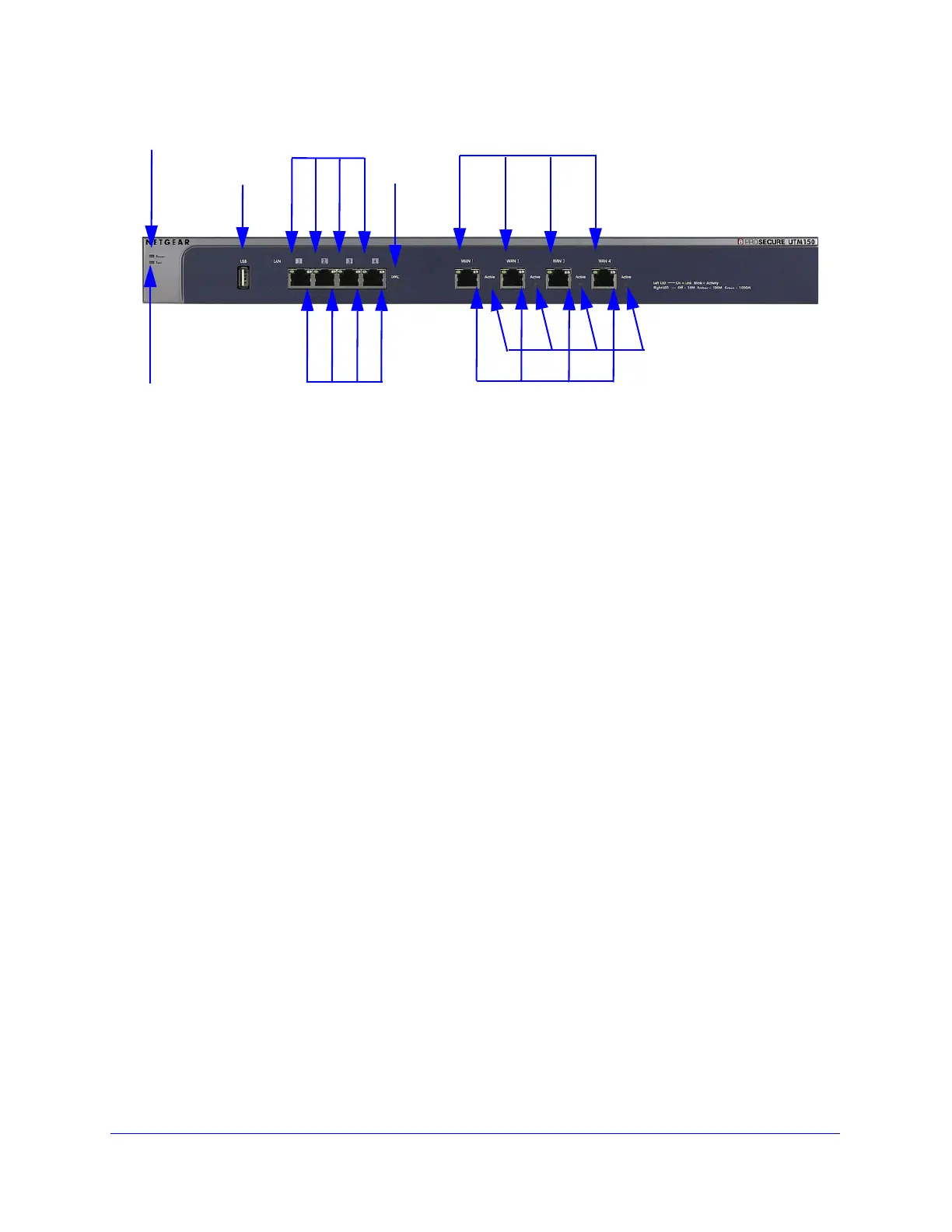

Figure 5. Front panel UTM150
Front Panel UTM9S and Modules
Viewed from left to right, the UTM9S front panel contains the following ports and slots:
• One nonfunctioning USB port. This port is included for future management
enhancements. The port is currently not operable on the UTM9S.
• LAN Ethernet ports. Four switched N-way automatic speed negotiating, Auto MDI/MDIX,
Gigabit Ethernet ports with RJ-45 connectors.
• WAN Ethernet ports. Two independent N-way automatic speed negotiating, Auto
MDI/MDIX, Gigabit Ethernet ports with RJ-45 connectors.
The front panel also contains three groups of status indicator LEDs, including Power and Test
LEDs, LAN LEDs, and WAN LEDs, all of which are explained in detail in Table 3 on page 28.
Some LED explanation is provided on the front panel below the LAN and WAN ports.
Power LED
Test LED
Left LAN LEDs
Right LAN LEDs
DMZ LED
Left WAN LEDs
Right WAN LEDs
Active WAN LEDs
USB port
