Firewall Protection
155
ProSecure Unified Threat Management (UTM) Appliance
One advantage of a service group is that you can create a single firewall object with multiple
noncontiguous ports (for example ports 3000, 4000, and 5000) and apply the object in a
single firewall rule. For example, if there are 10 web servers, each of which requires the
same three port-forwarding rules, you can create a service group for the port-forwarding
rules, an IP group for the web servers (see Create IP Groups on page 156), and then create
only one firewall rule.
 To create a service group:

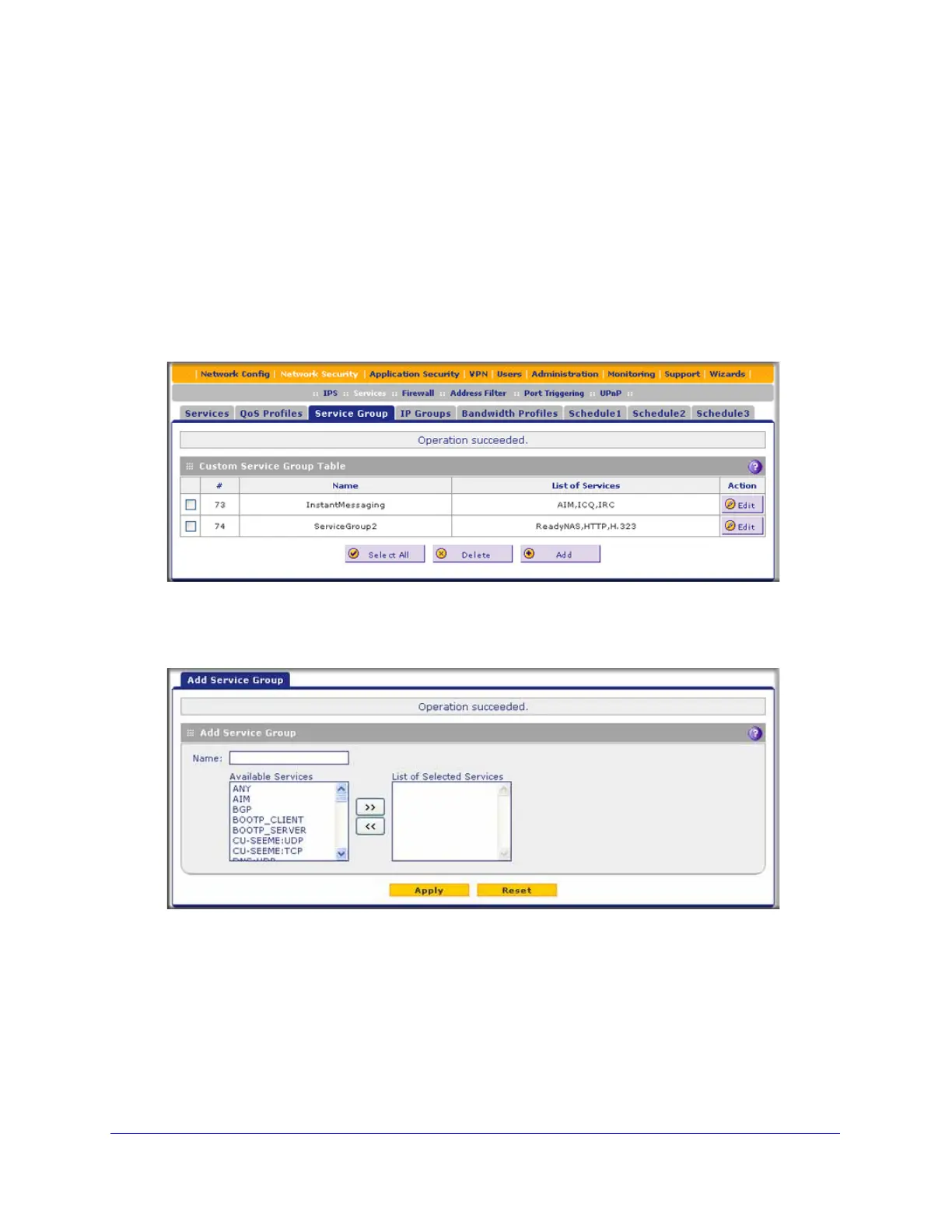

1. Select Network Security > Services > Service Group. The Service Group screen
displays. (The following figure shows two groups in the Custom Service Group table as
an example.)
Figure 87.
2. Under the Custom Service Group table, click the Add table button. The Add Service Group
screen displays:
Figure 88.
3. In the Name field, enter a name for the service.
4. Use the move buttons (<< and >>) to move services between the Available Services field
and the List of Selected Services field to specify the services that you want to be part of the
group.
5. Click Apply to save your changes. The new service group is displayed in the Custom
Services Group table on the Service Groups screen.
