LAN Configuration

ProSecure Unified Threat Management (UTM) Appliance

2. Either select an entry from the VLAN Profiles table and click the corresponding Edit table

button, or add a new VLAN profile by clicking the Add table button under the VLAN Profiles

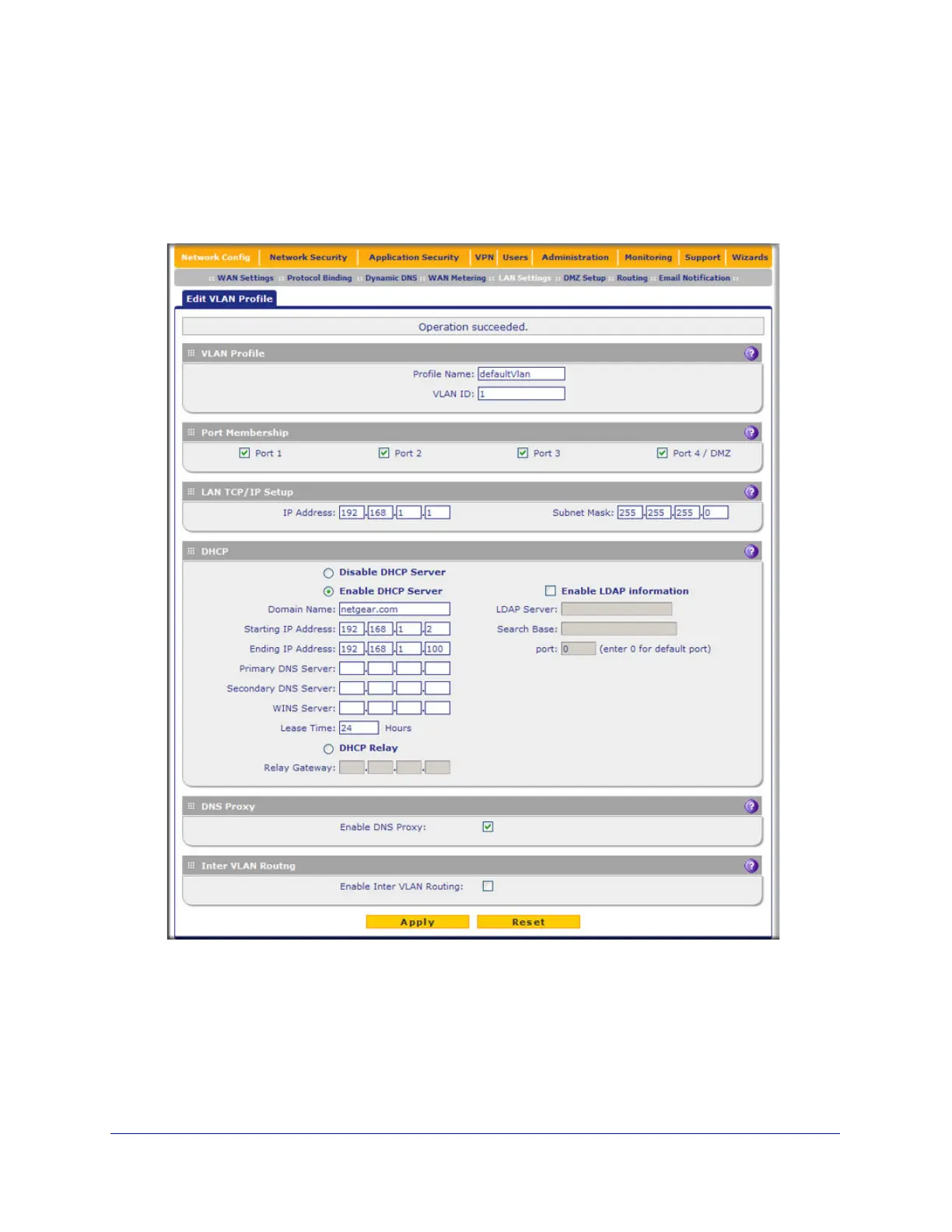

table. The Edit VLAN Profile screen displays. The following figure shows the Edit VLAN

Profile screen for the UTM with four ports in the Port Membership section. Note that the Edit

VLAN Profile screens for the UTM50 (not shown in this manual) has six ports in the Port

Membership section.

Figure 54.
