Configure System Information
111
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual
7. Next to l1, select the check box.
8. From the Trust Mode menu, select Enable to indicate that the interface is trusted.
The Trust Mode field indicates whether the interface is trusted for dynamic ARP
inspection purposes. All interfaces are untrusted by default.
9. In the Rate Limit (pps) field, specify the rate limit value for dynamic ARP inspection
purposes.
If the incoming rate of ARP packets per second exceeds the configured burst interval per
second, ARP packets are dropped. If this value is None (N/A), no limit exists. The value
can be set to –1, which means N/A. The rate limit range is 0–300. The default is 15
packets per second (pps).
10. In the Burst Interval(secs) field, specify the burst interval value for rate limiting purposes on
this interface.
If the rate limit is None, the burst interval is also nonapplicable and is displayed as N/A.
The burst interval range is 1–15 seconds. The default is 1 second.
11. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.

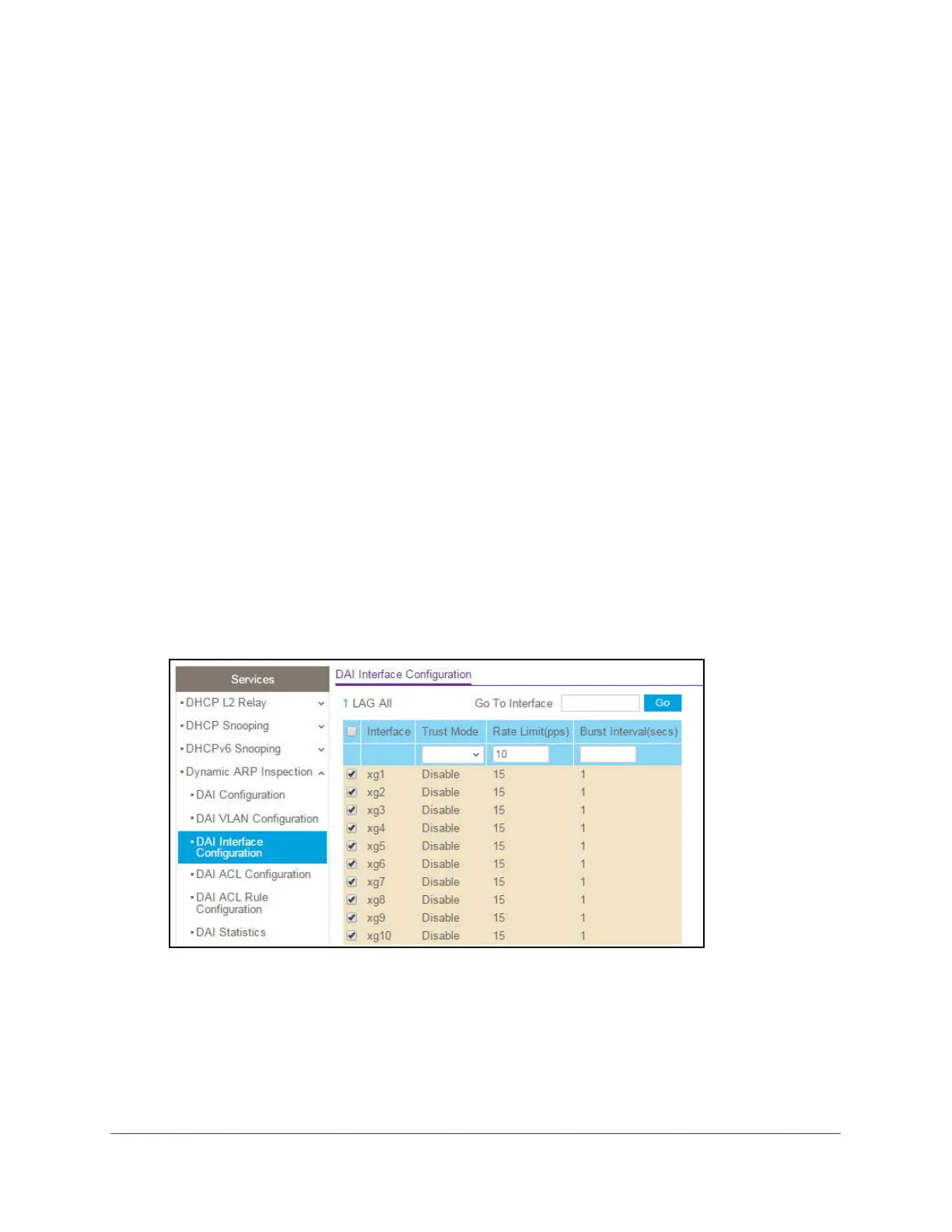

12. To configure rate limiting for ports 1–10, which are untrusted ports, do the following:
a. Click 1 in the interface-selection field to view all ports.
b. Select each check box associated with ports 1–10.
c. In the Rate Limit field, enter 10.
13. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.
