NETGEAR XS708T User Manual

Configure Switching
193
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual

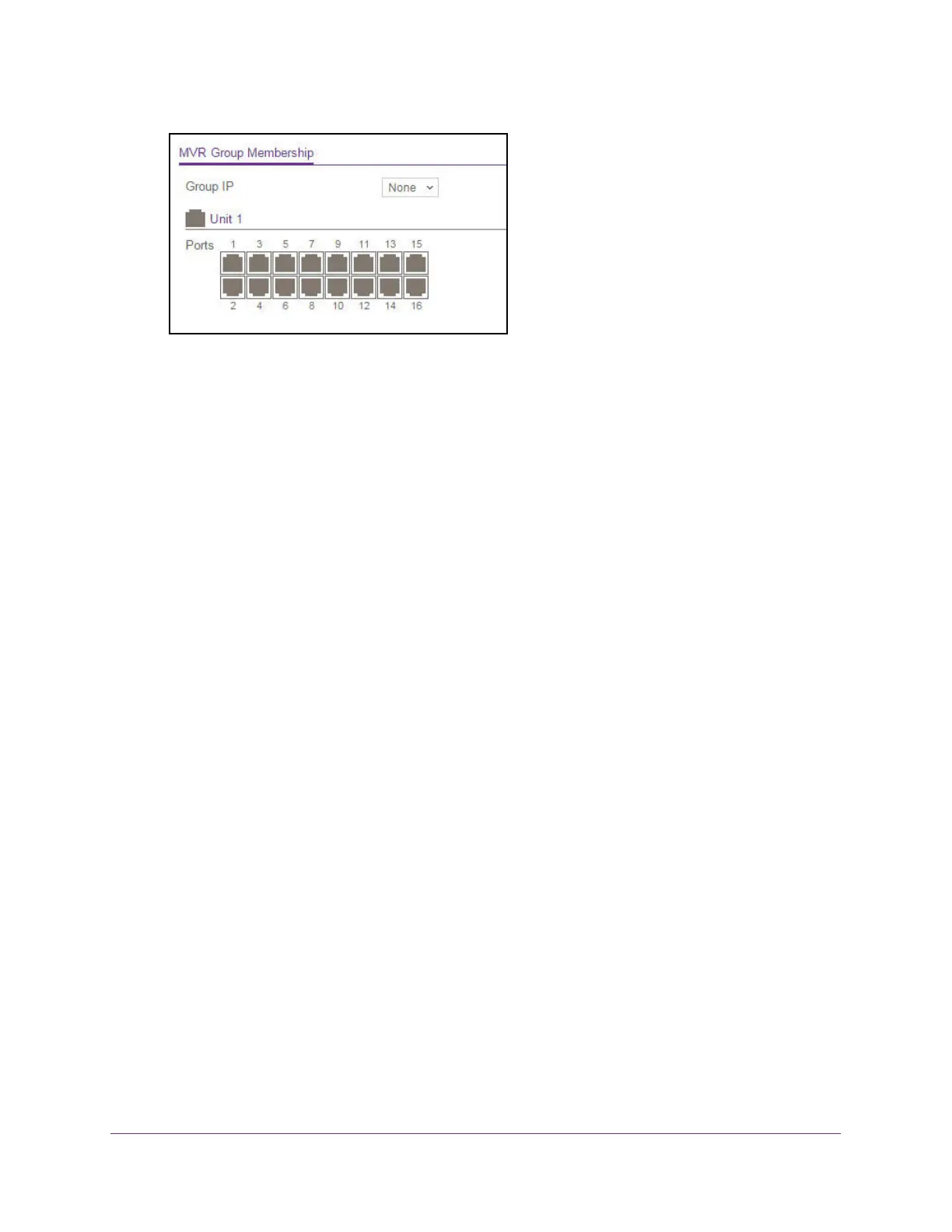

6. From the Group IP menu, select the IP multicast address of the MVR group.
7. In the Ports table, click each port that you want to make a member of the MVR group.
A selected port is shown by a check mark.
8. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.
View MVR Statistics
 To view MVR statistics:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.
5. Select Switching > MVR > Advanced > MVR Statistics.

NETGEAR XS708T Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
USB 2.0 ports quantity	1
SFP+ module slots quantity	2
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	8
Certification	CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
Product color	Black
LED indicators	Activity, Link, Power
Number of fans	1 fan(s)
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN
Cable types supported	Cat5e, Cat6, Cat6a, Cat7
Copper ethernet cabling technology	10GBASE-T
Noise level	29.1 dB
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276832 h
Jumbo frames	9000
Latency (10 Gbps)	3.012 µs
MAC address table	16000 entries
Packet buffer memory	2 MB
Number of static routes	32
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Access Control List (ACL) rules	100
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	96 W
Operating altitude	0 - 3000 m
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2980 g
