Manage Device Security
320
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual
ACL Wizard Example

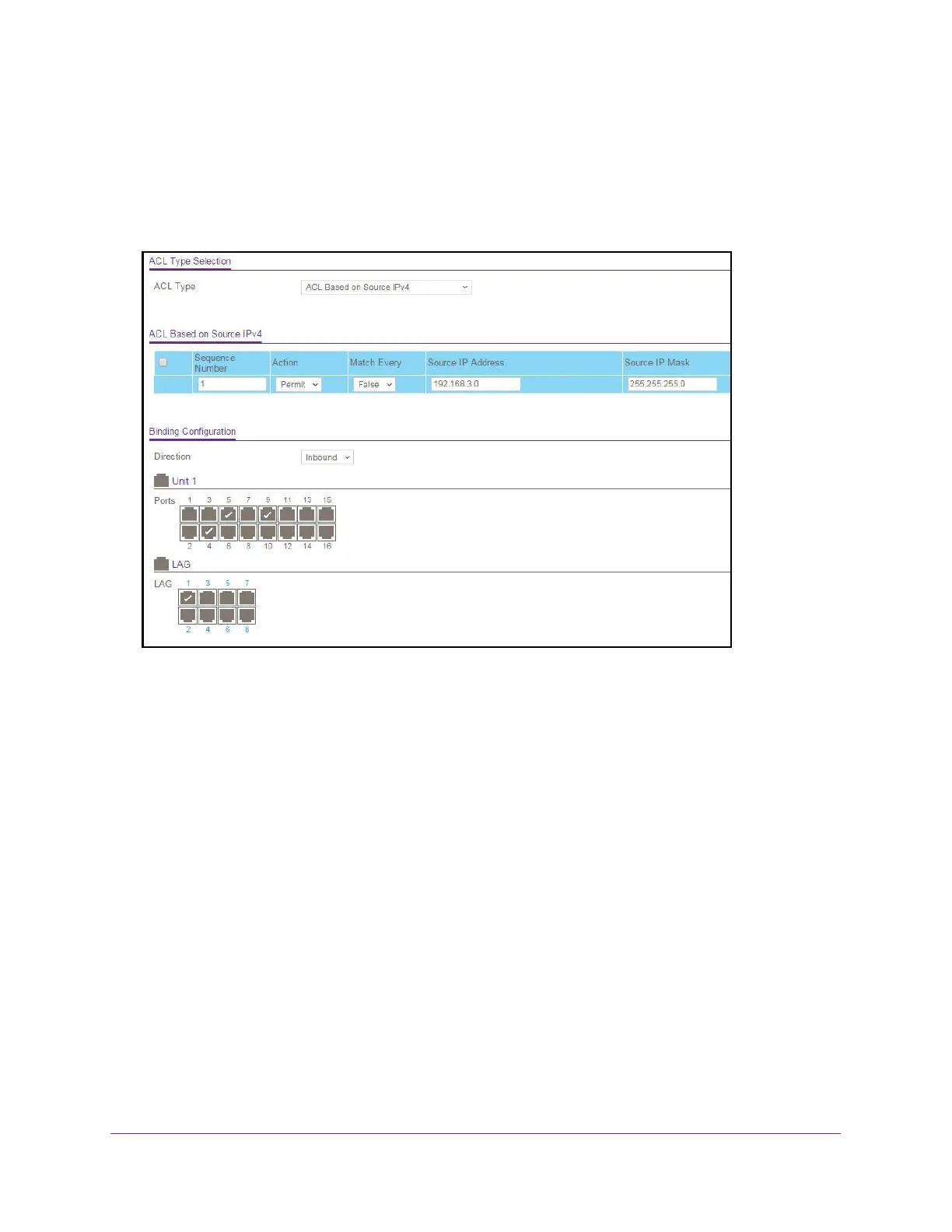

In the following figure, the ACL rule is configured to check for packet matches on ports 4, 5,
and 9 and on LAG 1. Only the Inbound option is valid. Packets that include a source address
in the 192.168.3.0/16 network are permitted to be forwarded by the interfaces. All other
packets are dropped because every ACL includes an implicit deny all rule as the last rule.
For information about the ACL Wizard, see Use the ACL Wizard to Create a Simple ACL on
page 315.
Configure a Basic MAC ACL
A MAC ACL consists of a set of rules that are matched sequentially against a packet. When a
packet meets the match criteria of a rule, the specified rule action (Permit or Deny) is taken,
and the additional rules are not checked for a match. Rules for the MAC ACL are created
using the MAC ACL Rule Configuration page.
Multiple steps are involved in defining a MAC ACL and applying it to the switch:
1. Create the ACL ID.
2. Create a MAC rule.
3. Associate the MAC ACL with one or more interfaces.
You can view or delete MAC ACL configurations in the MAC Binding table (see View or
Delete MAC ACL Bindings in the MAC Binding Table on page 328.
