Configure Switching
144
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual

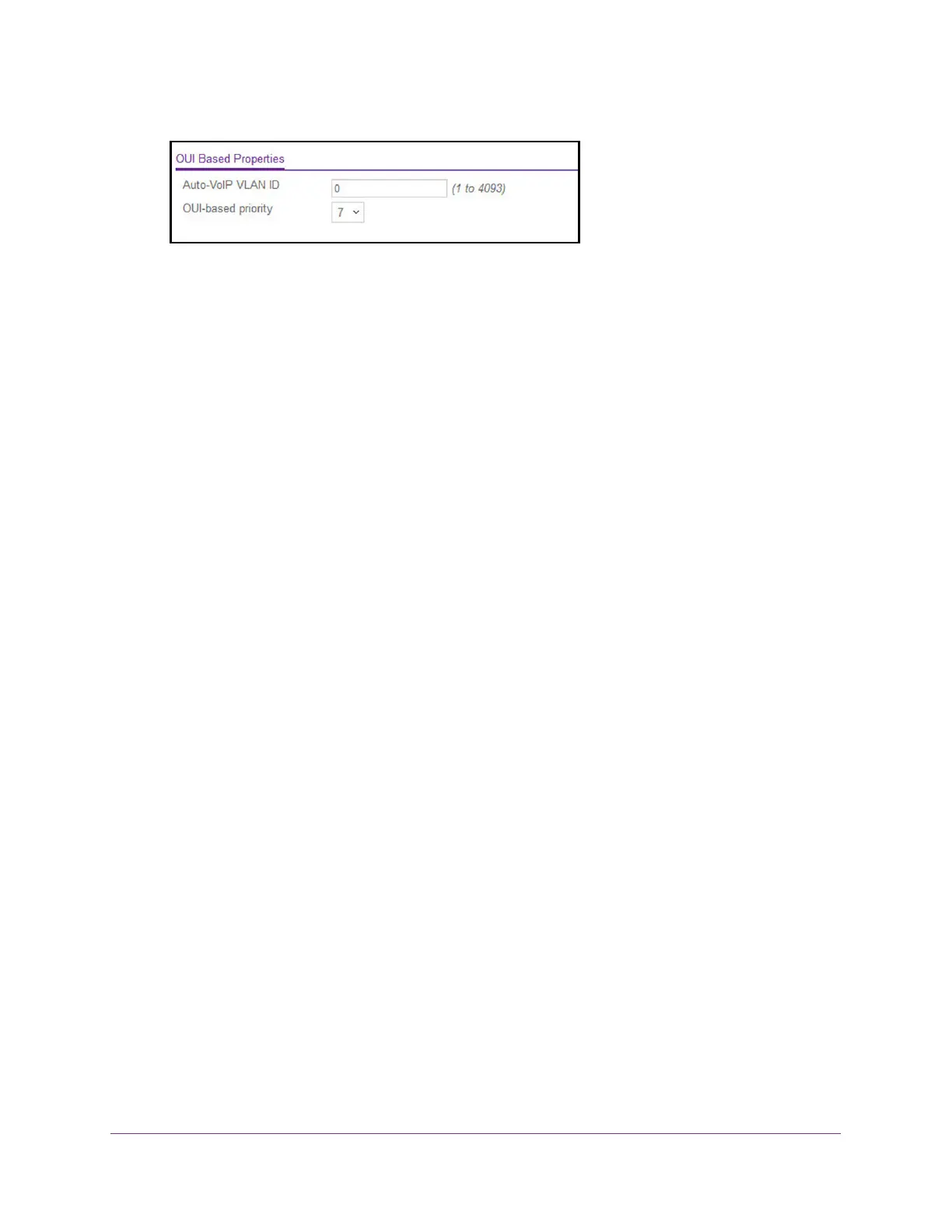

6. In the Auto-VoIP VLAN ID field, enter the VoIP VLAN ID of the switch.
No default VLAN exists for Auto-VoIP, you must create a VLAN for Auto-VoIP.
7. From the OUI-based priority menu, select the OUI-based priority of the switch.
The default value is 7.
8. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.
OUI-Based Port Settings
The port settings page allows you to configure the OUI port settings.
To configure OUI-based port settings:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.
5. Select Switching > Auto-VoIP > OUI-based > Port Settings.
