Configure Quality of Service
260
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual
Configure the DiffServ Service Interface
Use the Service Configuration page to activate a policy on an interface.
Attach a DiffServ Policy to an Interface
To attach a DiffServ policy to an interface:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.

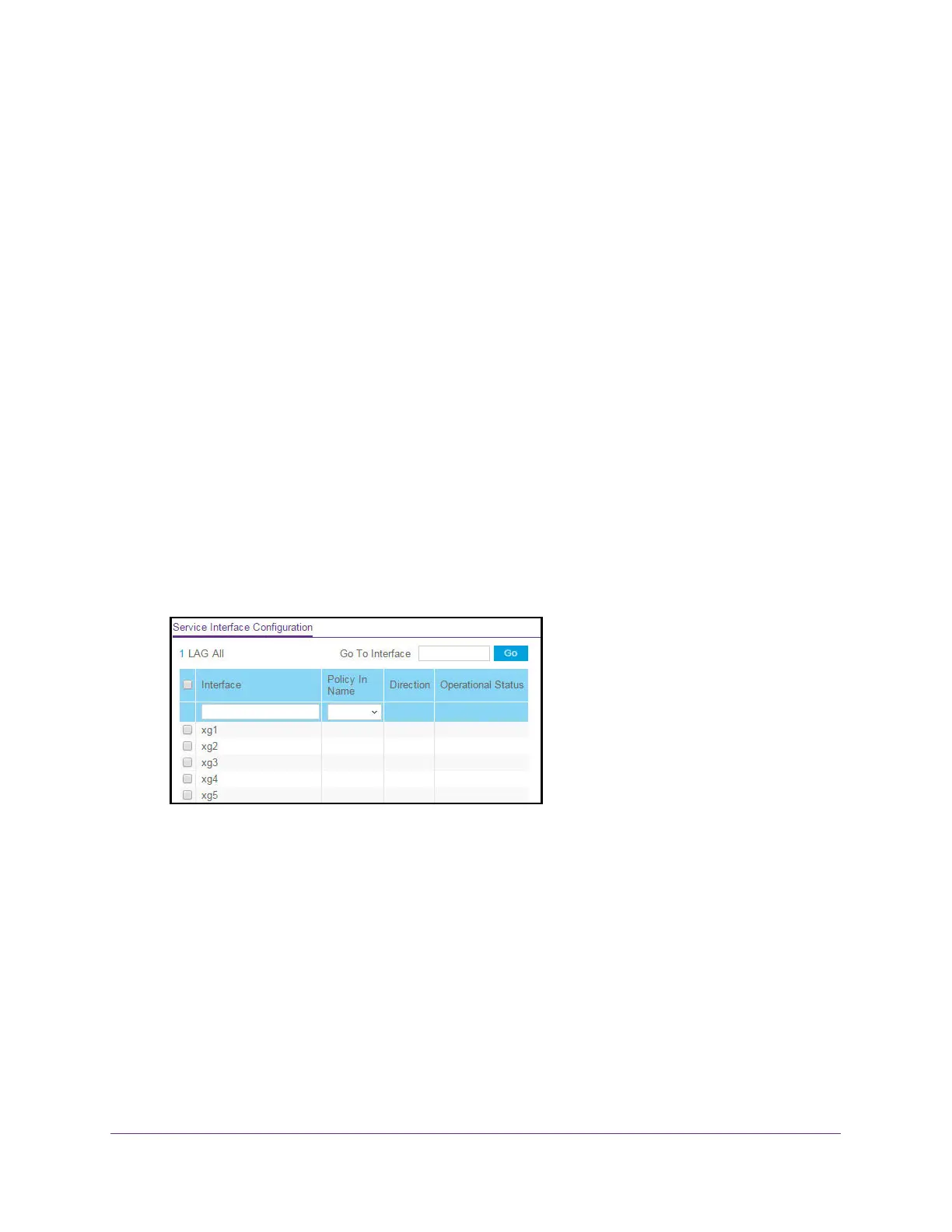

5. Select QoS > DiffServ > Advanced > Service Configuration.
6. Select one or more interfaces by taking one of the following actions:
To configure a single interface, select the check box associated with the port, or type
the port number in the Go To Interface field and click the Go button.
To configure multiple interfaces with the same settings, select the check box
associated with each interface.
To configure all interfaces with the same settings, select the check box in the heading
row.
7. From the Policy Name menu, select a policy name.
8. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.
