XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual

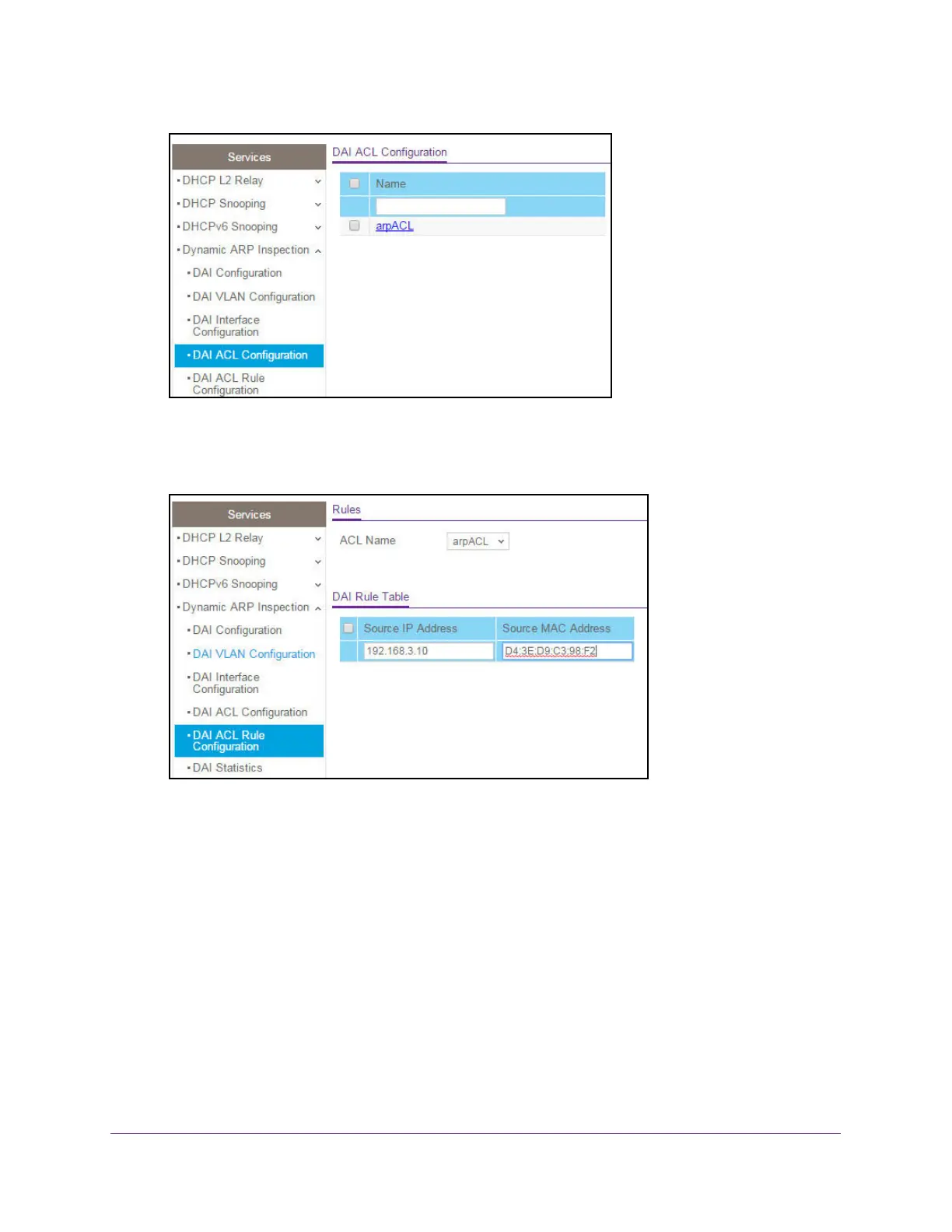

8. Click the ACL name.
The ACL name is a hyperlink to the Dynamic ARP Inspection ACL Rule Configuration
page.
9. From the ACL Name menu, select the DAI ACL to configure.
10. In the Source IP Address field, specify the IP address of a host.
11. In the Source MAC Address field, specify the MAC address of the host that is statically
mapped to the IP address specified in the Source IP Address field.
12. Click the Add button.
13. Repeat Step 10 through Step 12 to add a second rule.
You can add up to 20 static IP address–MAC address mappings to a DAI ACL.
14. Select System> Services > Dynamic ARP Inspection > DAI VLAN Configuration.
