NETGEAR XS708T User Manual

Configure Switching
172
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual

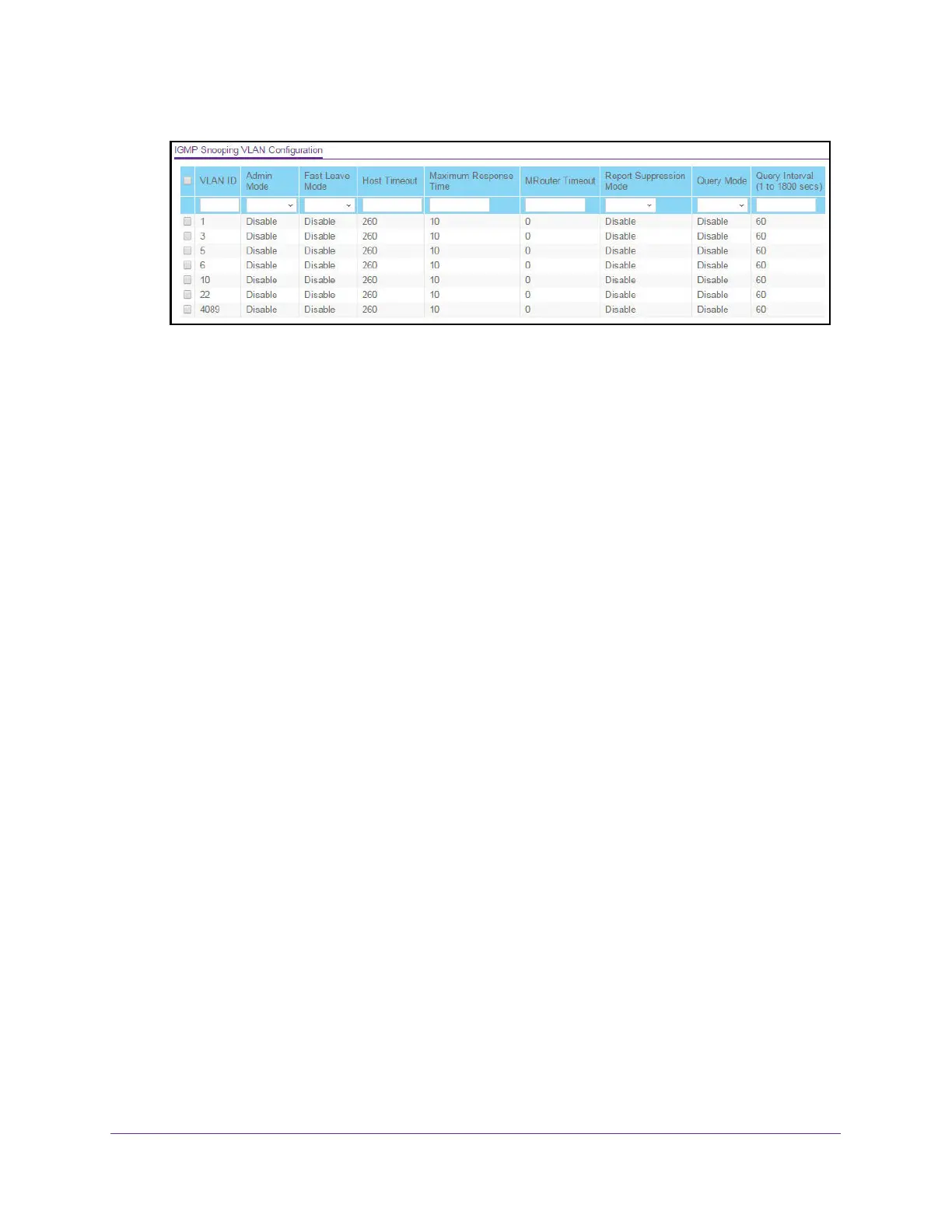

6. To enable IGMP snooping on a VLAN, in the VLAN ID field, enter the VLAN ID.
7. Configure the IGMP snooping values:
• Admin Mode. Enable or disable IGMP snooping for the specified VLAN ID. The
default is Disable.
• Fast Leave Mode. Enable or disable the IGMP snooping fast leave mode for the
specified VLAN ID. The default is Disable.
• Host Timeout. Set the value for group membership interval of IGMP snooping for the
specified VLAN ID. The valid range is Maximum Response Time + 1 to 3600 seconds.
• Maximum Response Time. Set the value for the maximum response time of IGMP
snooping for the specified VLAN ID. The valid range is 1 to Group Membership
Interval –1. This value must be greater than group membership interval value.
• MRouter Timeout. Set the value for multicast router expiry time of IGMP snooping for
the specified VLAN ID. The valid range is 0 to 3600 seconds.
• Report Suppression Mode. Enable or disable IGMP snooping report suppression
mode for the specified VLAN ID. IGMP snooping report suppression allows the
suppression of the IGMP reports sent by the multicast hosts by building a Layer 3
membership table. The results is that only the most essential reports are sent to the
IGMP routers so that the routers can continue to receive the multicast traffic.The
default is Disable.
• Querier Mode. Enable or disable the IGMP querier mode. If proxy querier mode is
disabled, then an IGMP proxy query with source IP 0.0.0.0 is not sent in response to
an IGMP leave packet. The default is Disable.
• Query Interval. Set the IGMP query interval for the specified VLAN ID. The valid
range is 1 to 1800 seconds. The default is 60 seconds.
8. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.

NETGEAR XS708T Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
USB 2.0 ports quantity	1
SFP+ module slots quantity	2
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	8
Certification	CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
Product color	Black
LED indicators	Activity, Link, Power
Number of fans	1 fan(s)
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN
Cable types supported	Cat5e, Cat6, Cat6a, Cat7
Copper ethernet cabling technology	10GBASE-T
Noise level	29.1 dB
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276832 h
Jumbo frames	9000
Latency (10 Gbps)	3.012 µs
MAC address table	16000 entries
Packet buffer memory	2 MB
Number of static routes	32
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Access Control List (ACL) rules	100
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	96 W
Operating altitude	0 - 3000 m
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2980 g
