NETGEAR XS708T User Manual

Configure Switching
183
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.

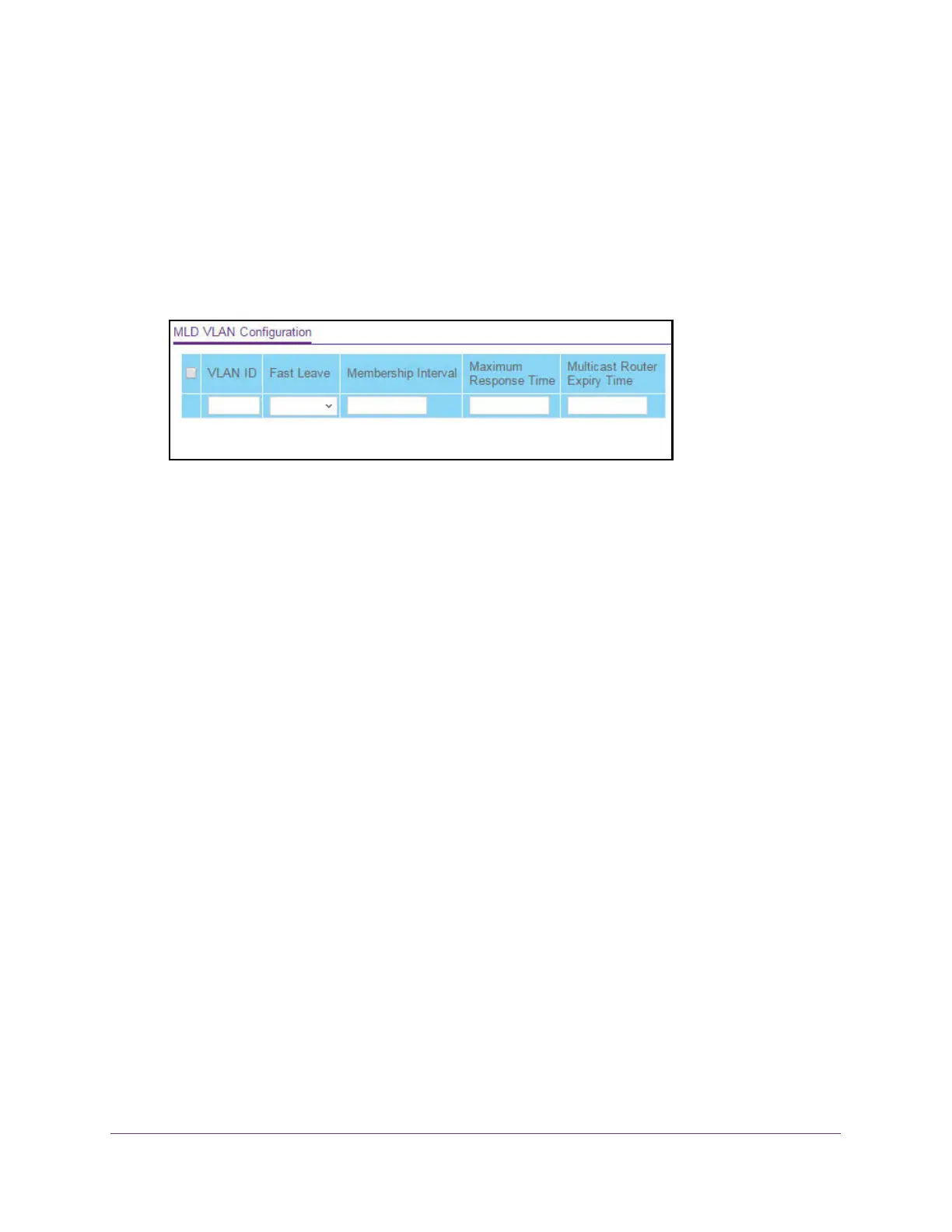

5. Select Switching> Multicast > MLD Snooping > MLD VLAN Configuration.
6. In the VLAN ID field, specify the VLAN IDs for which MLD snooping is enabled.
7. From the Fast Leave menu, select to enable or disable the MLD snooping Fast Leave
mode for the specified VLAN ID.
8. In the Membership Interval field, set the value for the group membership interval of MLD
snooping for the specified VLAN ID.
The valid range is Maximum Response Time + 1 to 3600.
9. In the Maximum Response Time field, set the value for the maximum response time of
MLD snooping for the specified VLAN ID.
The valid range is 1 to Group Membership Interval –1. This value must be less than the
group membership interval value.
10. In the Multicast Router Expiry Time field, set the value for the multicast router expiry time
of MLD snooping for the specified VLAN ID.
The valid range is 0 to 3600.
11. Click the Add button.
MLD snooping is enabled on the specified VLAN.
12. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.

NETGEAR XS708T Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
USB 2.0 ports quantity	1
SFP+ module slots quantity	2
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	8
Certification	CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
Product color	Black
LED indicators	Activity, Link, Power
Number of fans	1 fan(s)
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN
Cable types supported	Cat5e, Cat6, Cat6a, Cat7
Copper ethernet cabling technology	10GBASE-T
Noise level	29.1 dB
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276832 h
Jumbo frames	9000
Latency (10 Gbps)	3.012 µs
MAC address table	16000 entries
Packet buffer memory	2 MB
Number of static routes	32
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Access Control List (ACL) rules	100
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	96 W
Operating altitude	0 - 3000 m
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2980 g
