NETGEAR XS708T User Manual

Manage Device Security
303
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.

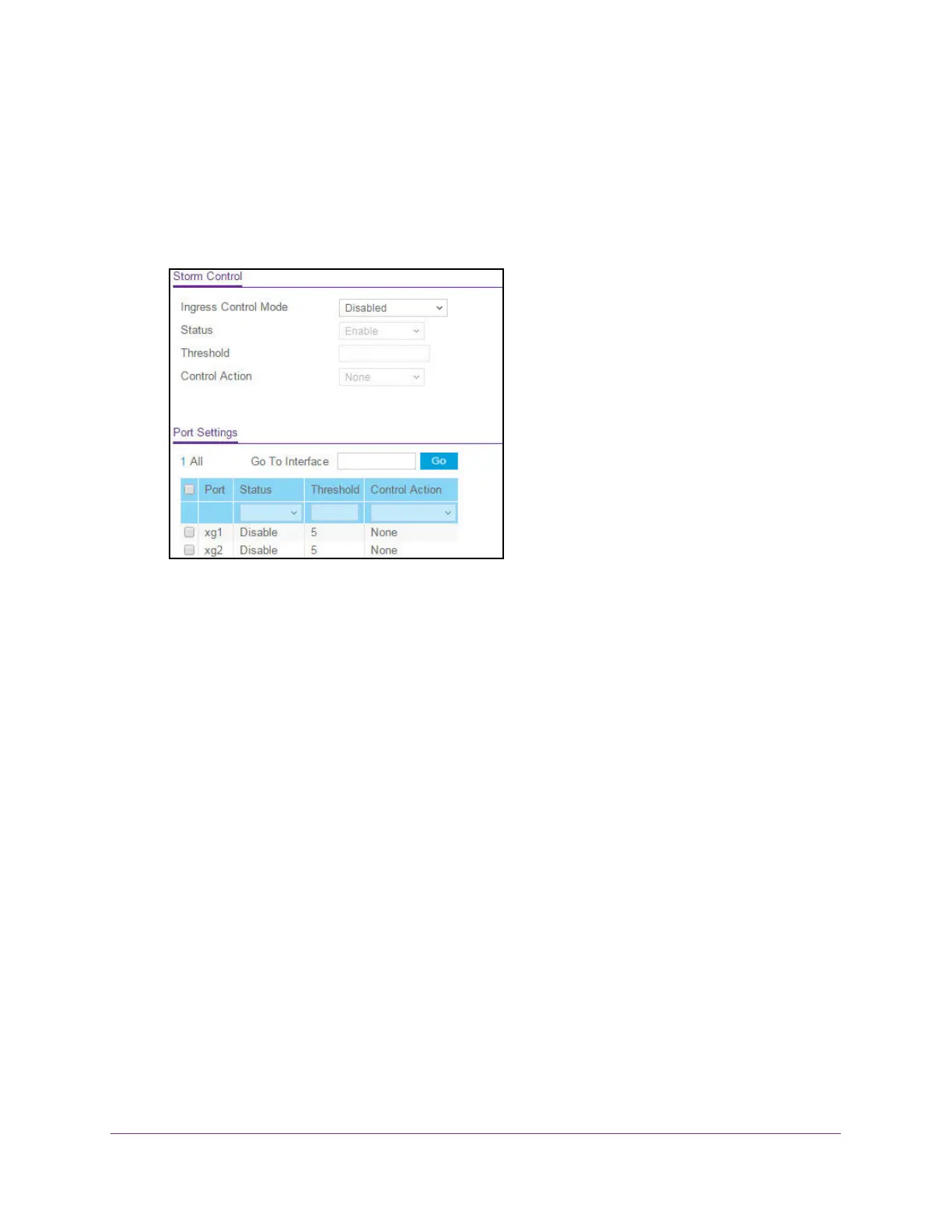

5. Select Security > Traffic Control > Storm Control.
6. In the Port Settings section, select one or more interfaces by taking one of the following
actions:
• To configure a single interface, select the check box associated with the port, or type
the port number in the Go To Interface field and click the Go button.
• To configure multiple interfaces with the same settings, select the check box
associated with each interface.
• To configure all interfaces with the same settings, select the check box in the heading
row.
7. In the Storm Control section, from the Ingress Control Mode menu, select the mode of
broadcast affected by storm control:
• Disabled. Storm control is disabled. This is the default setting.
• Unknown Unicast. If the rate of incoming unknown Layer 2 unicast traffic (that is,
traffic for which a destination lookup failure occurs) increases beyond the configured
threshold on an interface, the traffic is dropped.
• Multicast. If the rate of incoming Layer 2 multicast traffic increases beyond the
configured threshold on an interface, the traffic is dropped.
• Broadcast. If the rate of incoming Layer 2 broadcast traffic increases beyond the
configured threshold on an interface, the traffic is dropped.
8. If the selection from the Ingress Control Mode menu is not Disabled, specify whether the
ingress control mode is enabled by selecting Enable or Disable from the Status menu.
9. In the Threshold field, specify the maximum rate at which unknown packets are forwarded.
The range is a percent of the total threshold between 0–100%. The default is 5%.

NETGEAR XS708T Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
USB 2.0 ports quantity	1
SFP+ module slots quantity	2
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	8
Certification	CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
Product color	Black
LED indicators	Activity, Link, Power
Number of fans	1 fan(s)
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN
Cable types supported	Cat5e, Cat6, Cat6a, Cat7
Copper ethernet cabling technology	10GBASE-T
Noise level	29.1 dB
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276832 h
Jumbo frames	9000
Latency (10 Gbps)	3.012 µs
MAC address table	16000 entries
Packet buffer memory	2 MB
Number of static routes	32
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Access Control List (ACL) rules	100
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	96 W
Operating altitude	0 - 3000 m
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2980 g
