Configure System Information
98
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual

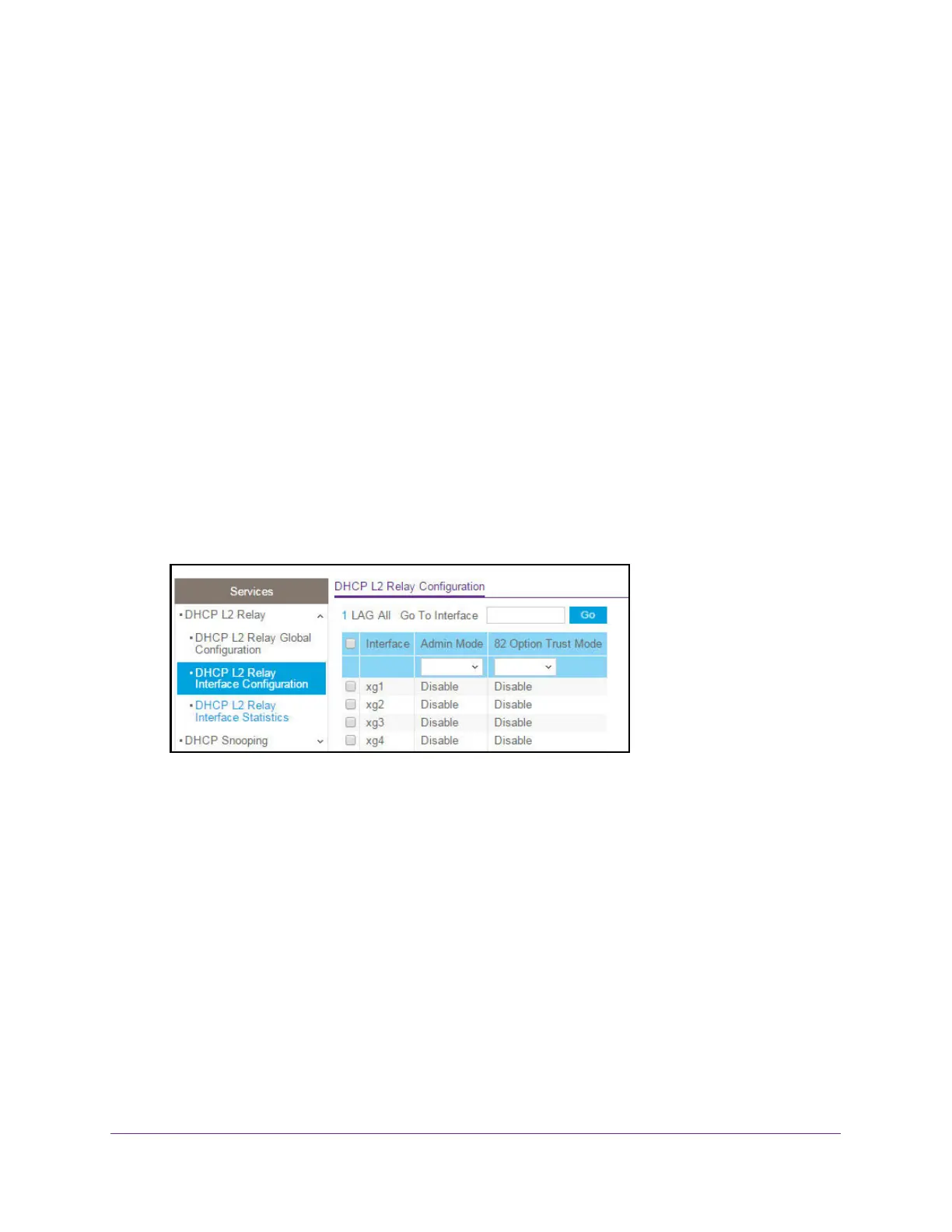

DHCP L2 Relay Interface Configuration
Use this page to view and configure the DHCP L2 relay interface.
To configure DHCP L2 relay interface settings:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.
5. Select System> Services > DHCP L2 Relay > DHCP L2 Relay Interface Configuration.
6. Select one or more interfaces by taking one of the following actions:
To configure a single interface, select the check box associated with the port, or type
the port number in the Go To Interface field and click the Go button.
To configure multiple interfaces with the same settings, select the check box
associated with each interface.
To configure all interfaces with the same settings, select the check box in the heading
row.
7. From the Admin Mode menu, select to enable or disable the DHCP L2 relay on the
selected interface.
The default is Disable.
8. From the 82 Option Trust Mode menu, select to enable or disable an interface to be trusted
for DHCP L2 Relay (Option-82) received.
The default is Disable.
