5 Parameter
BU 0200 en-3118 141
Pos: 30 9 /Anlei tung en/El ektr onik/FU und Star ter/5 . Par amet er/ Par amet erau fli st ung (P 000 .. .)/P 100- P199 /Par amet er P106 – Rampenverrundungen @ 0\mod_1327575116954_388.docx @ 7619 @ @ 1
P106
Ramp smoothing
(Ramp smoothing)
P
0 ... 100 %
{ 0 }
This parameter enables a
smoothing of the acceleration and deceleration ramps. This is
necessary for applications where gentle, but dynamic speed change is important.
Ramp smoothing is carried out for every setpoint change.
The value to be set is based on the set acceleration and deceleration time, however values <10%
have no effect.

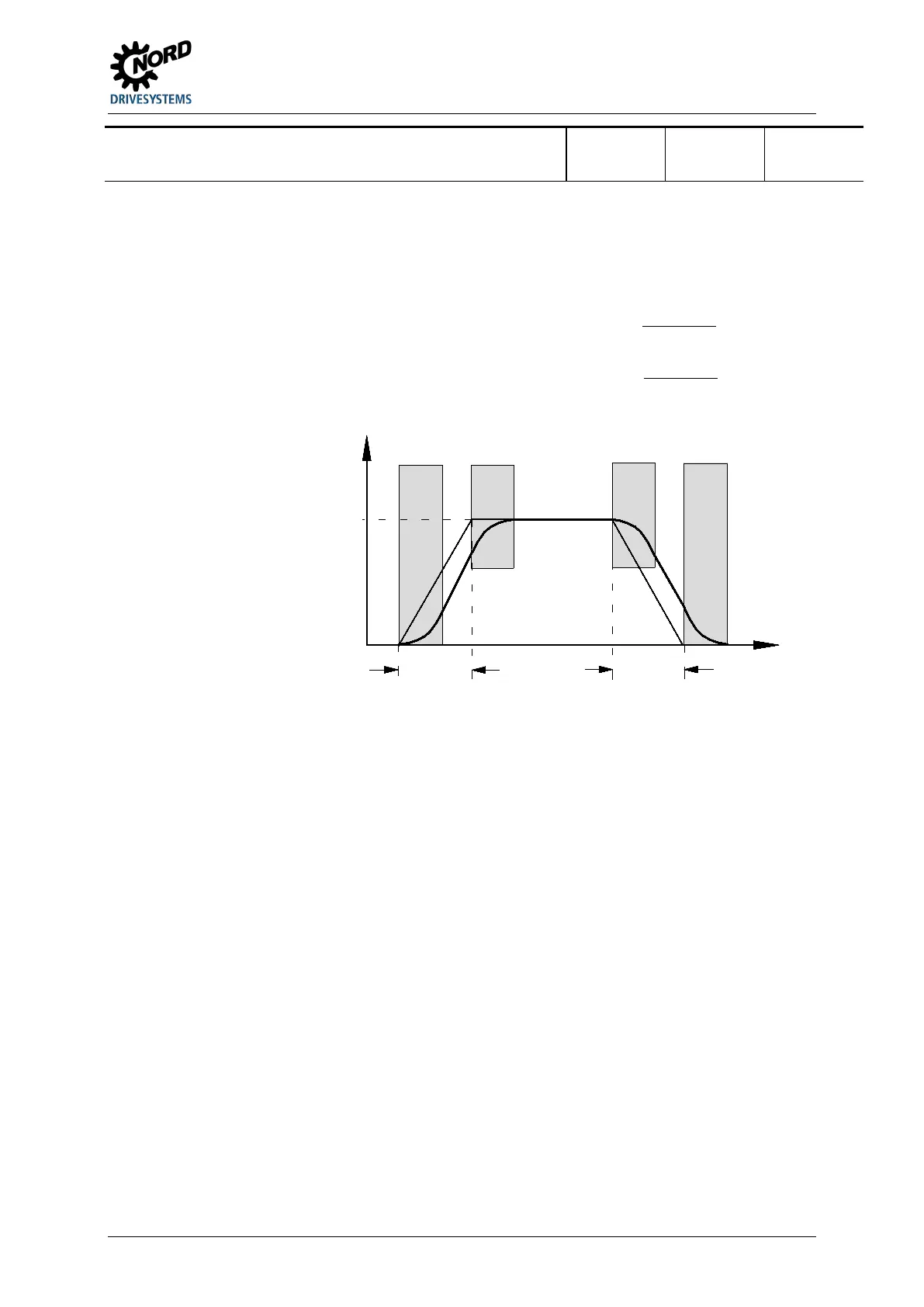

The following then applies for the entire acceleration or deceleration time, including rounding:
[ ]
100%
% P106
ttt
P102P102TIME ONACCELERATI tot
â‹…+=
[ ]
100%
% P106
ttt
P103P103TIME
ONDECELERATI tot
â‹…+=
Currently
10 – 100% from P102
Currently
10 – 100% from P103
Pos: 31 0 /Anlei tung en/El ektr onik/FU und Star ter/5 . Par ameter/ Par ameter aufli stung (P000 .. .)/P1 00-P1 99/Par amet er P106 – Rampenverrundungen_Ergänzung @ 18\mod_1498740702027_388.docx @ 2360098 @ @ 1
Note:
Under the following conditions ramp rounding is switched off
linear ramp with extended times:
• Acceleration values (+/-) less than 1 Hz/s
• Acceleration values (+/-) greater than 1 Hz/ms
• Rounding values less than 10 %
