Routing and splicing the fiber cable 7-9
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 7-1 (continued)
Routing the OSP fiber cable directly to the FPP

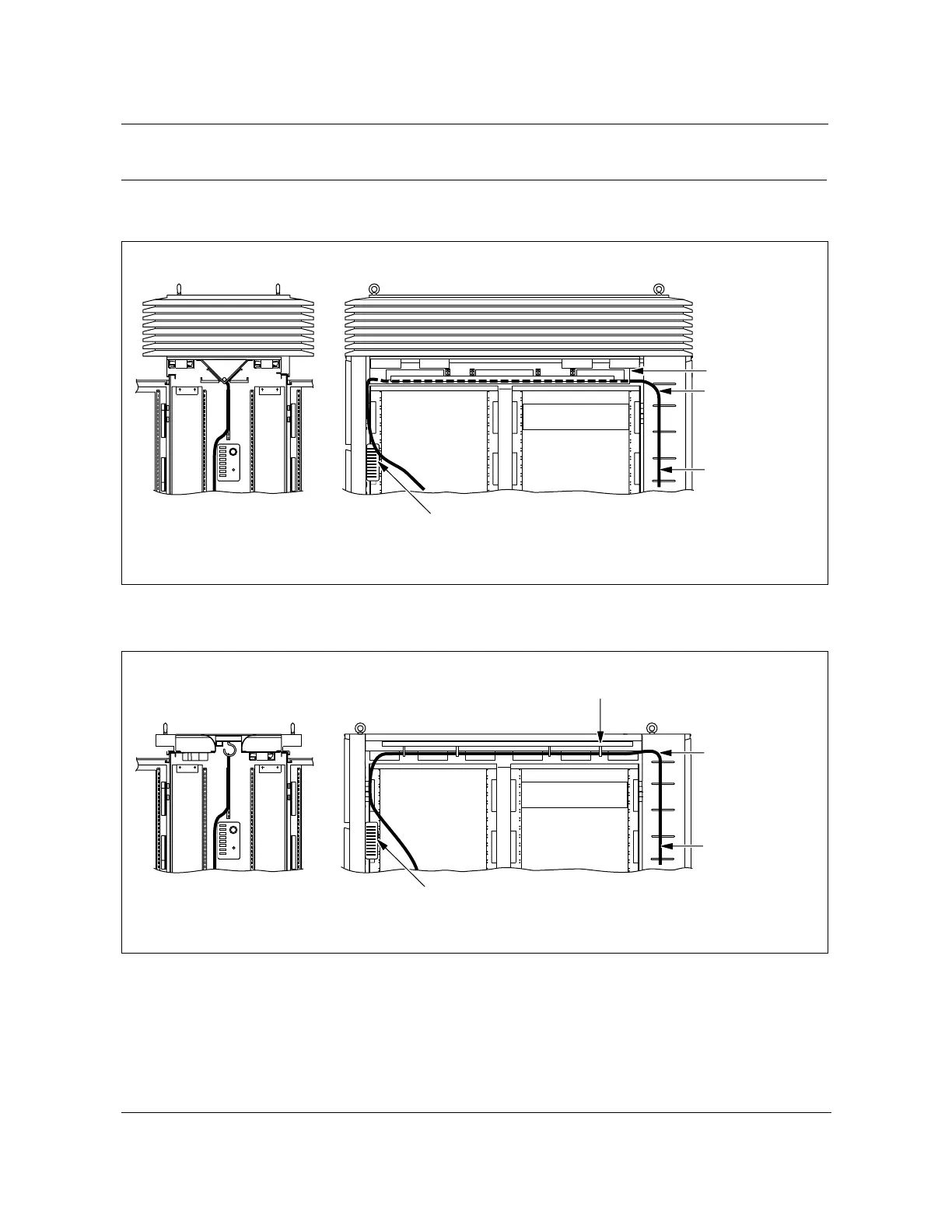

Figure 7-2
Tie wrap the fiber cable to the ceiling of the heat exchanger roof assembly
FW-15127
Figure 7-3
Tie wrap the fiber cable to the ceiling of the air induction roof assembly
FW-15128
—continued—
Rear view
Maintain at least
minimum bend
radius
3.0 in. (76 mm)
OSP fiber cable
Thermostat
Left inside view
V- trough
TerminationFrontRear AC
FW-15127
FPP
Rear view
Cable rings
Maintain at least
minimum bend
radius
of 3.0 in. (76 mm)
OSP fiber cable
Thermostat
Left inside view
TerminationFrontRear AC
FW-15128
FPP
To Next Page
