7-10 Routing and splicing the fiber cable
AccessNode 323-3001-210 Issue 1.0
Procedure 7-1 (continued)
Routing the OSP fiber cable directly to the FPP
Step Action
5 Loop the fiber down the inside wall of the AC compartment on the rear side
of the baffle to the bottom of the wall.
6 Route the fiber across the top of the batteries and up the inside wall of the
termination compartment (see Figure 7-4).

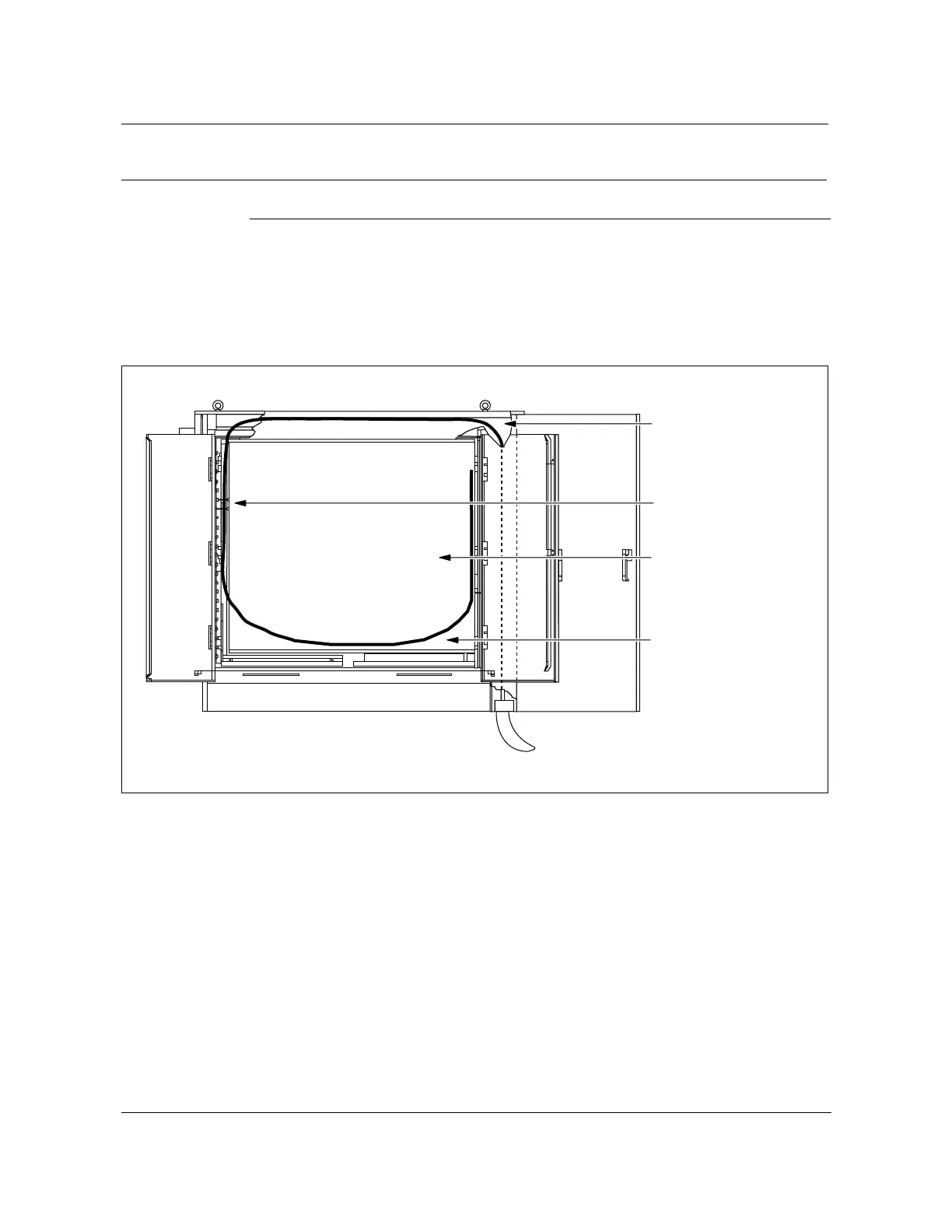

Figure 7-4
Routing of fiber cable to fiber distribution/patch panel rear view
FW-15129
—continued—
Upper entrance slot
Use cable-ties above
the thermostat
approximately as shown
Service loop no lower
than the bottom of the
swing frames
Cabinet rear (swing frames removed)
Interior air baffle
FW-15129
