7-12 Routing and splicing the fiber cable
AccessNode 323-3001-210 Issue 1.0
Procedure 7-1 (continued)
Routing the OSP fiber cable directly to the FPP
Step Action
9 Measure the length of the fiber cable to establish the point at which the cable
is to be butted.
Note:
The cable butt should be 1/2-inch (1.27 cm) above the bonding and
grounding bracket mounted on the FPP (see Figure 7-6).
10 Butt the fiber cable.
11 Protect the fibers with buffer tubing as specified by local practices or job
specifications.

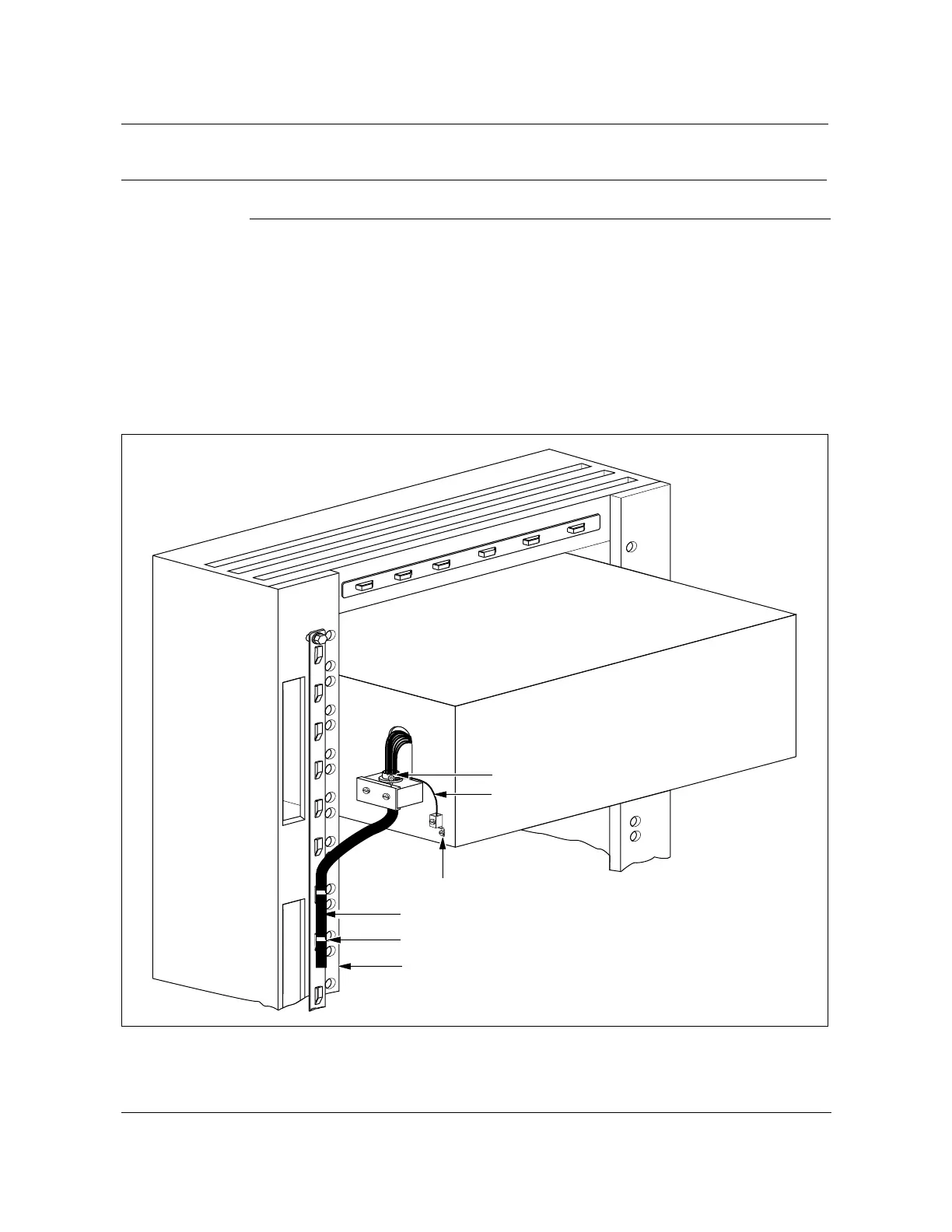

Figure 7-6
Butt and ground the fiber cable at the FPP (left rear view)
FW-15131
—continued—
OSP fiber cables
Tie-wrap
Ground lug
Bonding clamp
Swing frame
Ground wire
FW-15131
