Nortel SONET AccessNode 800A Series User Manual

Routing and splicing the fiber cable 7-13
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 7-1 (continued)
Routing the OSP fiber cable directly to the FPP
Step Action
12 Tie wrap the cable to the strip on the inner side of the swing frame to within
6 inches (15.4 cm) of the bonding and grounding bracket.
13 Form the ground lead into the bonding and grounding bracket (see Figure 7-6
on page 7-12).
14 Tighten all of the bracket connections to secure the cable and ground lead.
15 Route the buffer tubing with the fibers inside into the FPP at the fiber entry
hole on the side of the panel (see Figure 7-6 on page 7-12).
Note: Maintain at least the minimum bend radius (3.0 inches/76 mm).
16 Secure the buffer tubing with the fibers inside in the FPP at the cable tie strap
located in the inside right rear of the FPP (see Figure 7-7).

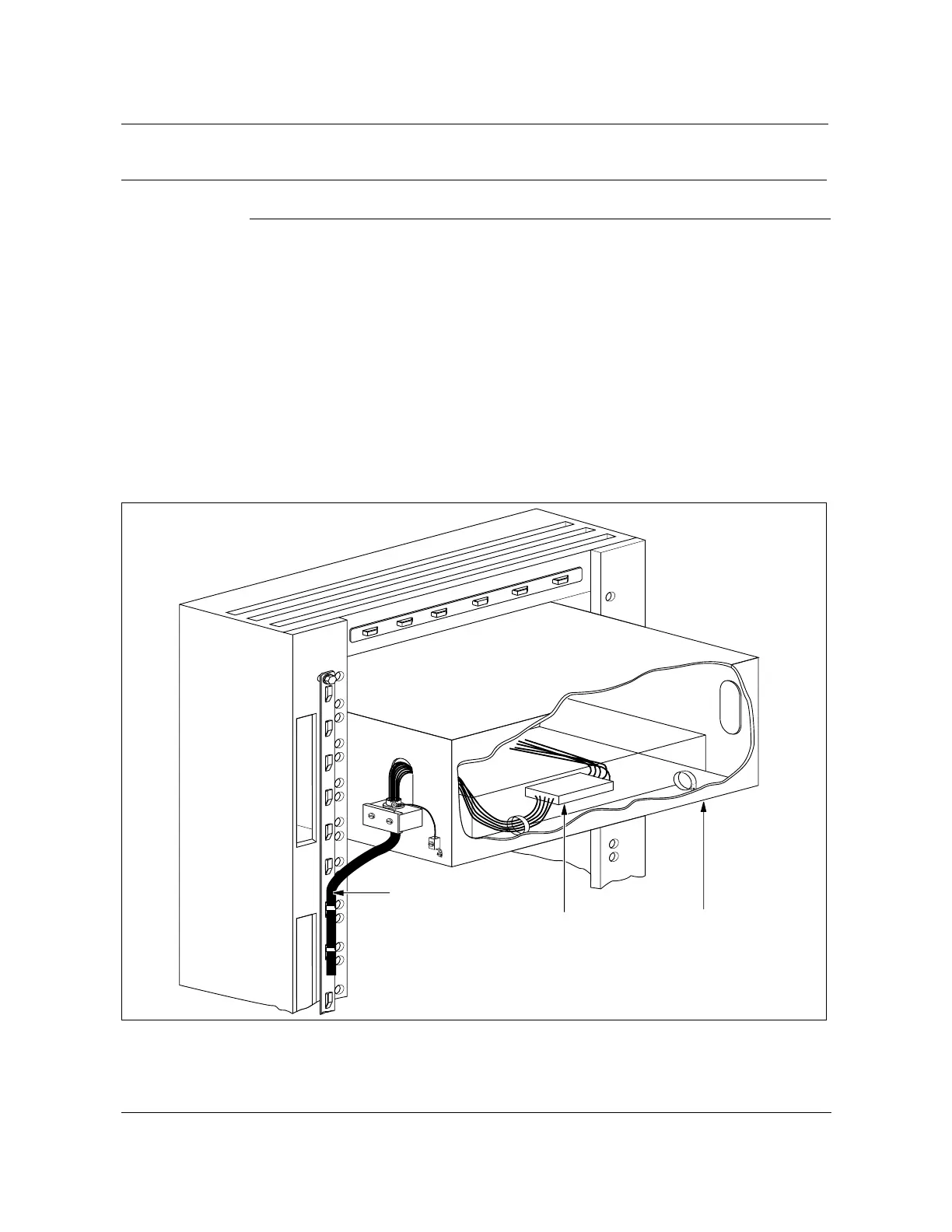

Figure 7-7
Fiber cable tie strap in the FPP
FW-15132
—continued—
FW-15132
OSP fiber cable
Splices
Fiber patch panel
