7-40 Routing and splicing the fiber cable
AccessNode 323-3001-210 Issue 1.0
Procedure 7-4 (continued)
Routing fiber to the ABM when no FPP is installed
Step Action
8 Route the tubing down the inside wall of the AC compartment as shown in
Figure 7-22.
9 Route the tubing to the front side of the baffle.
10 Route the tubing to the rear of the ABM shelf in the front right swing frame.

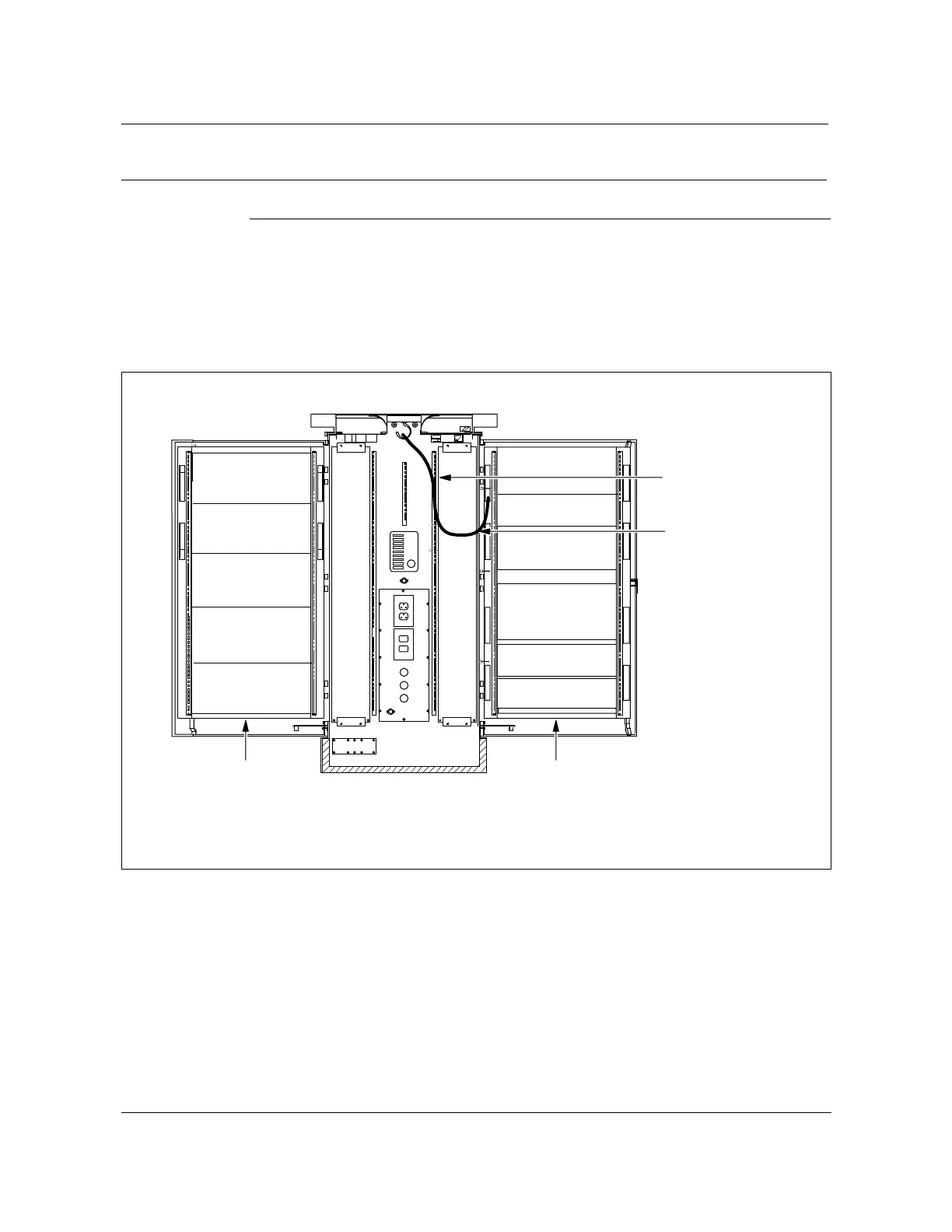

Figure 7-22
Routing the fibers down the inside wall of the AC compartment
FW-15146
—continued—
Front
Inside view facing AC compartment
Rear
DSX
Battery breaker
panel
DC distribution
shelf
Rectifier
shelf
Left rear equipment
swing frame open
Right front equipment
swing frame open
RPTR
FW-15146
Route the split flex
tubing against
the tie-down strip when
routing to the ABM.
Form the service loop
before entering the swing
frame cabling cutout
To Next Page
