Routing and splicing the fiber cable 7-41
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 7-4 (continued)
Routing fiber to the ABM when no FPP is installed
Step Action
11 Route the tubing through the swing frame cabling cutout on the hinge side of
the swing frame to the front of the ABM shelf as shown in Figure 7-23.
Note:
Leave a sufficient service loop in the routing to accommodate the swing
fame opening and closing without putting undue pressure or tension on the
tubing.

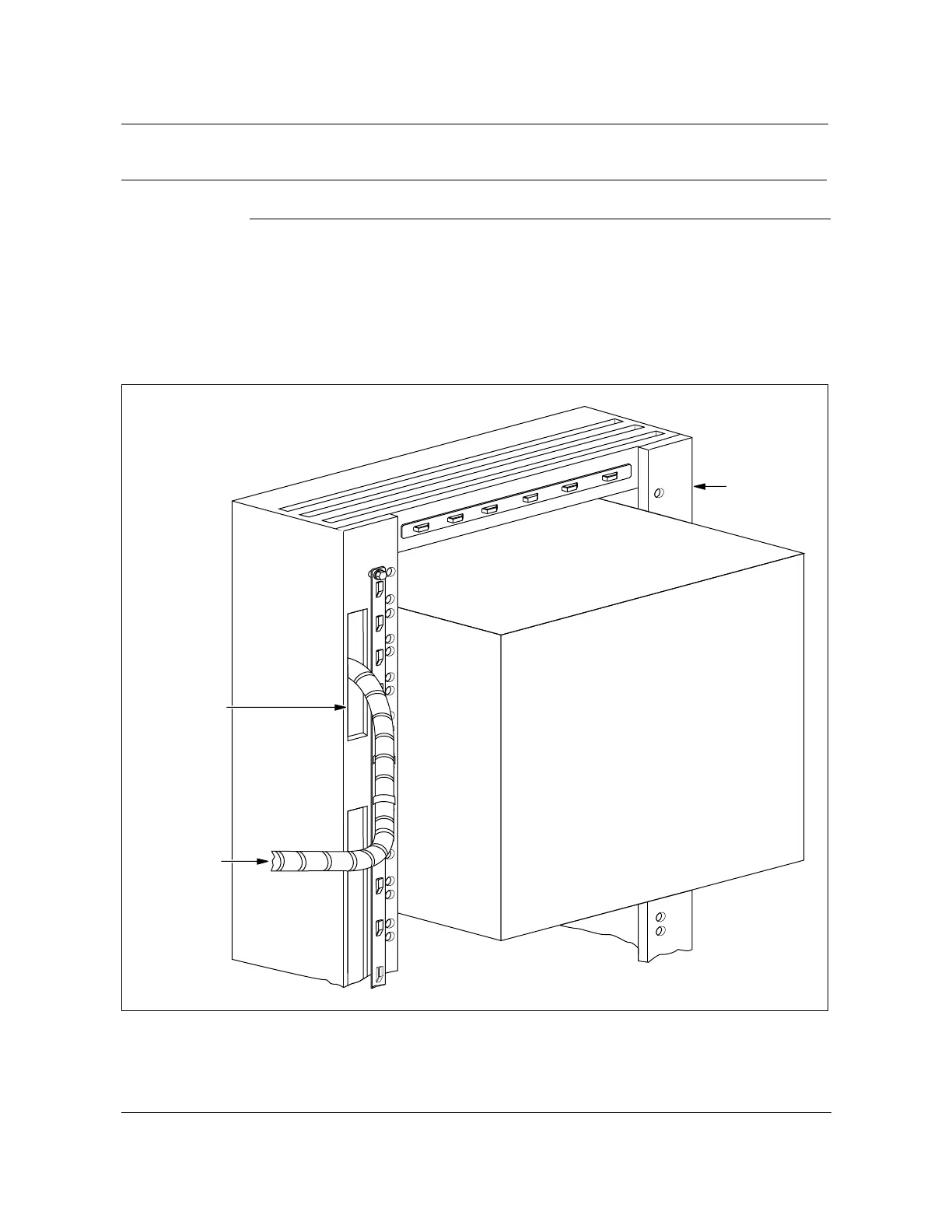

Figure 7-23
Routing the fibers into the ABM shelf swing frame
FW-15147
—continued—
Swing frame
ABM
shelf
Swing frame
cabling cutout
OSP patch
cords or
pigtails
in split
flex tubing
FW-15147
