7-42 Routing and splicing the fiber cable
AccessNode 323-3001-210 Issue 1.0
Procedure 7-4 (continued)
Routing fiber to the ABM when no FPP is installed
Step Action
12 Route the tubing across the top of the ABM shelf (see Figure 7-24).
Note:
Maintain at least the minimum bend radius (3.0 inches/76 mm) for the
fiber pigtails or patch cords installed.
13 Butt the tubing at a length of 1 inch (2.54 cm) inside the ABM cable trough.
14 Insert 1/2-inch (13 mm) of one end of the tubing into the cable trough on the
top of the ABM shelf.
15 Extend the fiber patch cords along the cable trough at the top edge of the
ABM shelf as shown in Figure 7-24.

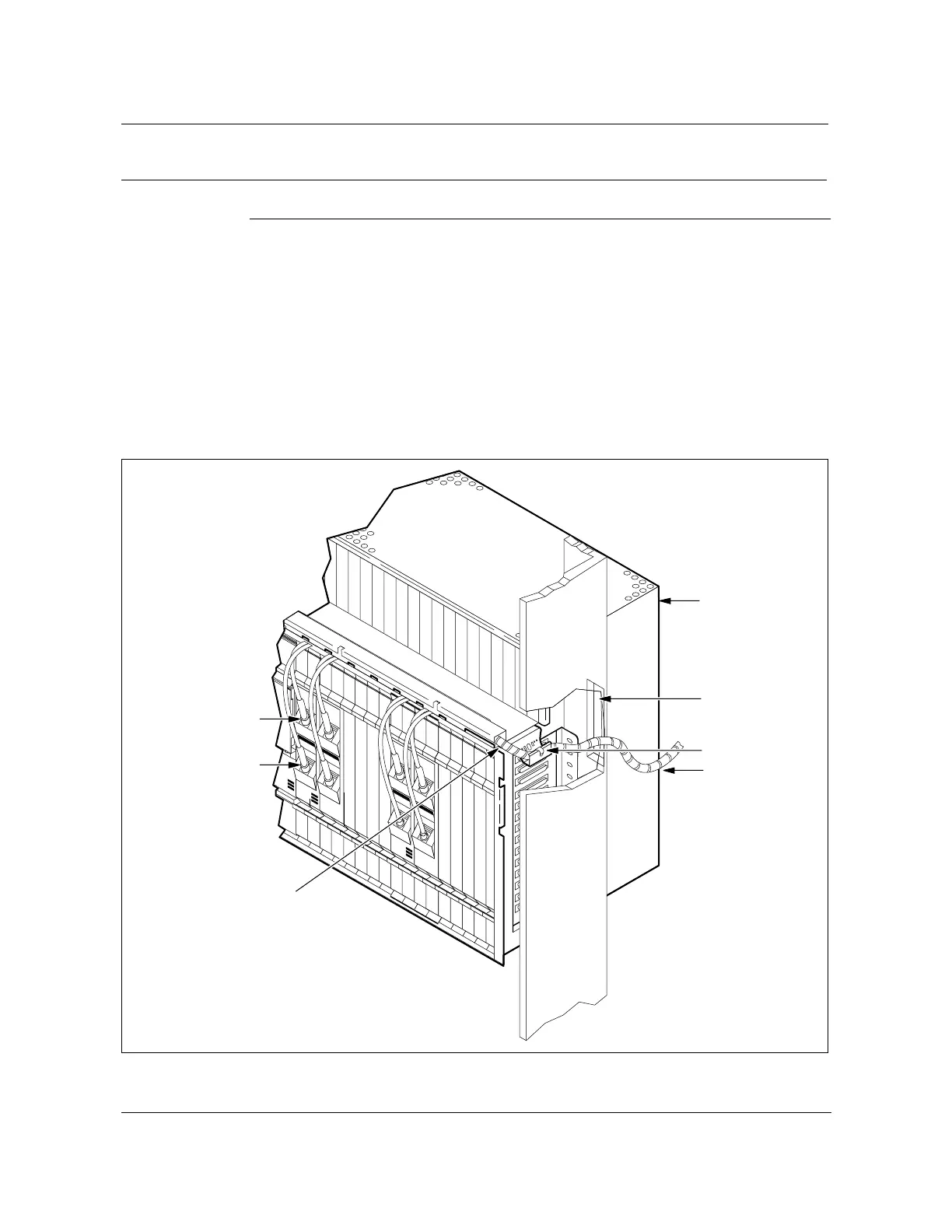

Figure 7-24
Routing the fibers into the ABM shelf to the OC-3 or OC-12 card
FW-15310
—continued—
Rx
Tx
Spiral
wrap
tubing
Tie-wrap
Insert approximately
1/2-inch (13 mm)
Swing frame
cutout
ABM shelf
FW-15310
