Installing the pad 1-13
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 1-1 (continued)
Preparing the poured-in-place cabinet mounting pad

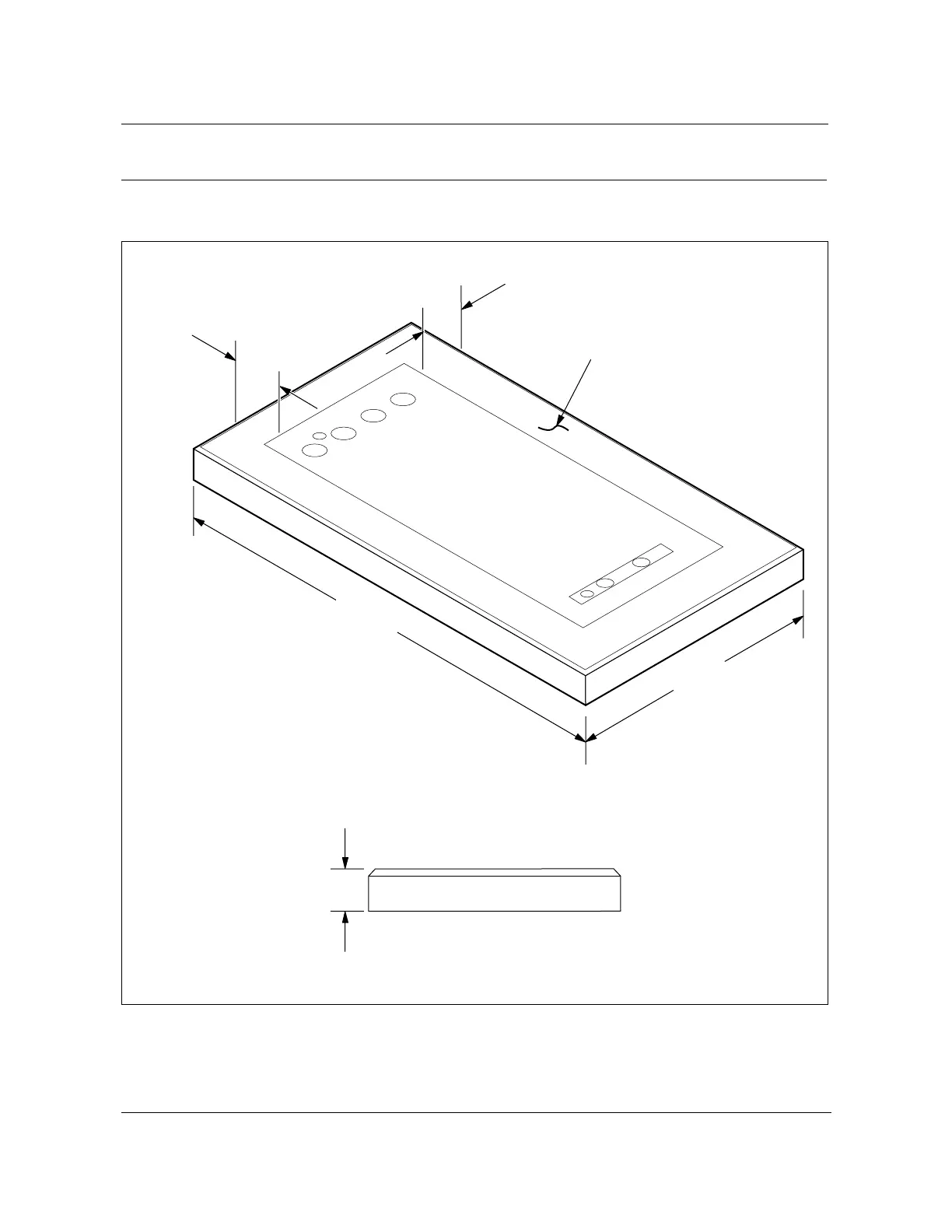

Figure 1-5
Load box, flat, narrow concrete pad (reference drawing P0743183)
FW-15104
—continued—
50.00 in.
90.00 in.
(127.00 cm)
(228.60 cm)
10.00 in.
(25.40 cm)
End View
10.00 in.
(25.40 cm)
9.00 in.
(22.86 cm)
FW-15104
Flat
surface
Sloped surface
all around
