1-14 Installing the pad
AccessNode 323-3001-210 Issue 1.0
Procedure 1-1 (continued)
Preparing the poured-in-place cabinet mounting pad

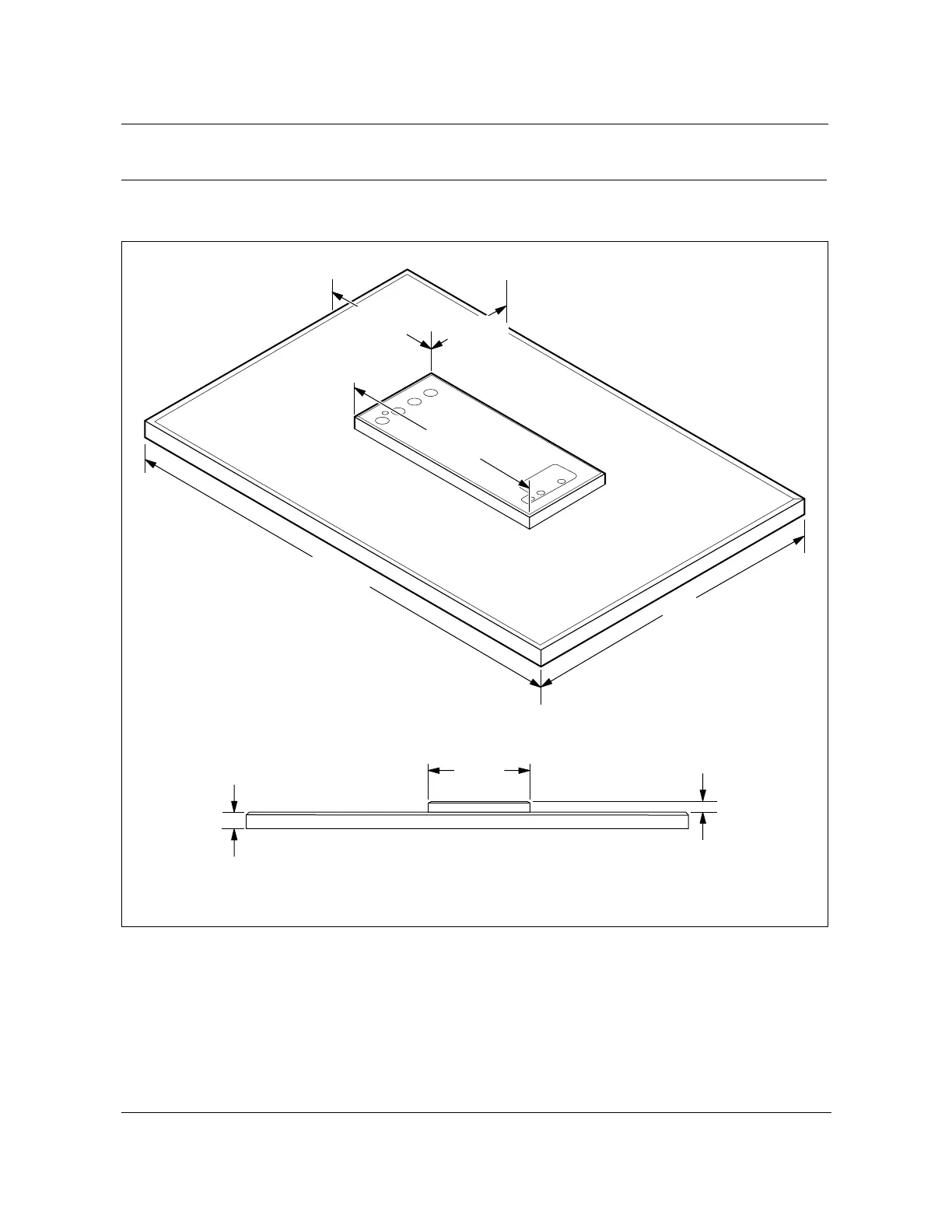

Figure 1-6
Power pedestal (ac), elevated, wide concrete pad (reference drawing P0743297)
FW-15105
—continued—
90.00 in.
140.00 in.
(228.60 cm)
(355.60 cm)
End View
4.00 in.
(10.16 cm)
6.00 in.
(15.24 cm)
32.00 in.
(81.28 cm)
30.00 in.
(76.20 cm)
80.00 in.
(203.20 cm)
(REF.)
FW-15105
29.00 in.
(73.66 cm)
