Where X = starting byte

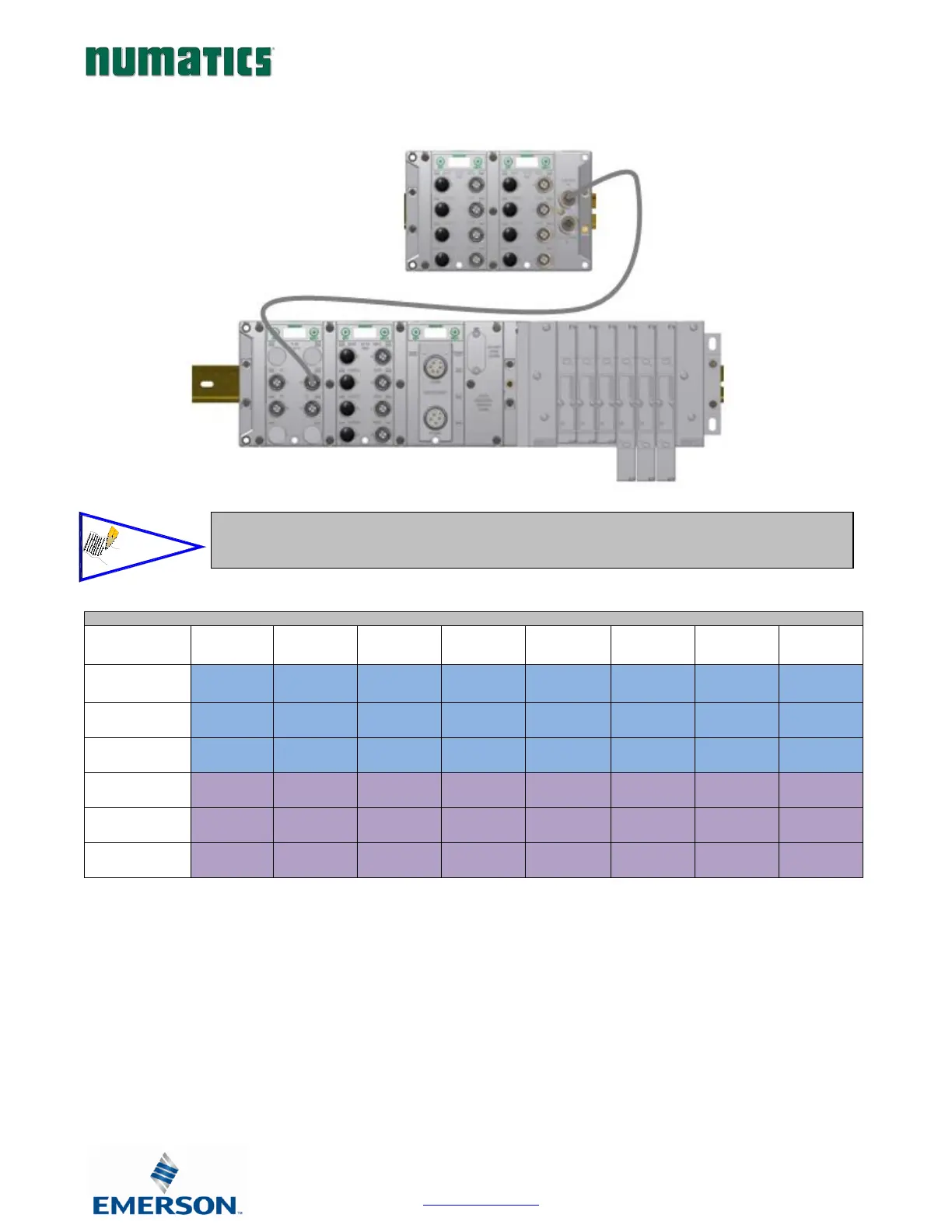

Example I/O Mapping of Attached Modules
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
(Required)
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
Input 0
X + 1
(Required)
Input 15
Input 14
Input 13
Input 12
Input 11
Input 10
Input 9
Input 8
X + 2
(Selectable)
Conn. H
SCP Status
Conn. G
SCP Status
Conn. F
SCP Status
Conn. E
SCP Status
Conn. D
SCP Status
Conn. C
SCP Status
Conn. B
SCP Status
Conn. A
SCP Status
X + 3
(Required)
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
Input 0
X + 4
(Required)
Input 15
Input 14
Input 13
Input 12
Input 11
Input 10
Input 9
Input 8
X + 5
(Selectable)
Conn. H
SCP Status
Conn. G
SCP Status
Conn. F
SCP Status
Conn. E
SCP Status
Conn. D
SCP Status
Conn. C
SCP Status
Conn. B
SCP Status
Conn. A
SCP Status
The Sub-bus hub module does not produce mapped diagnostics. The data table in this example
represents what is physically attached to the HUB module. This will change as modules are added
or removed.
