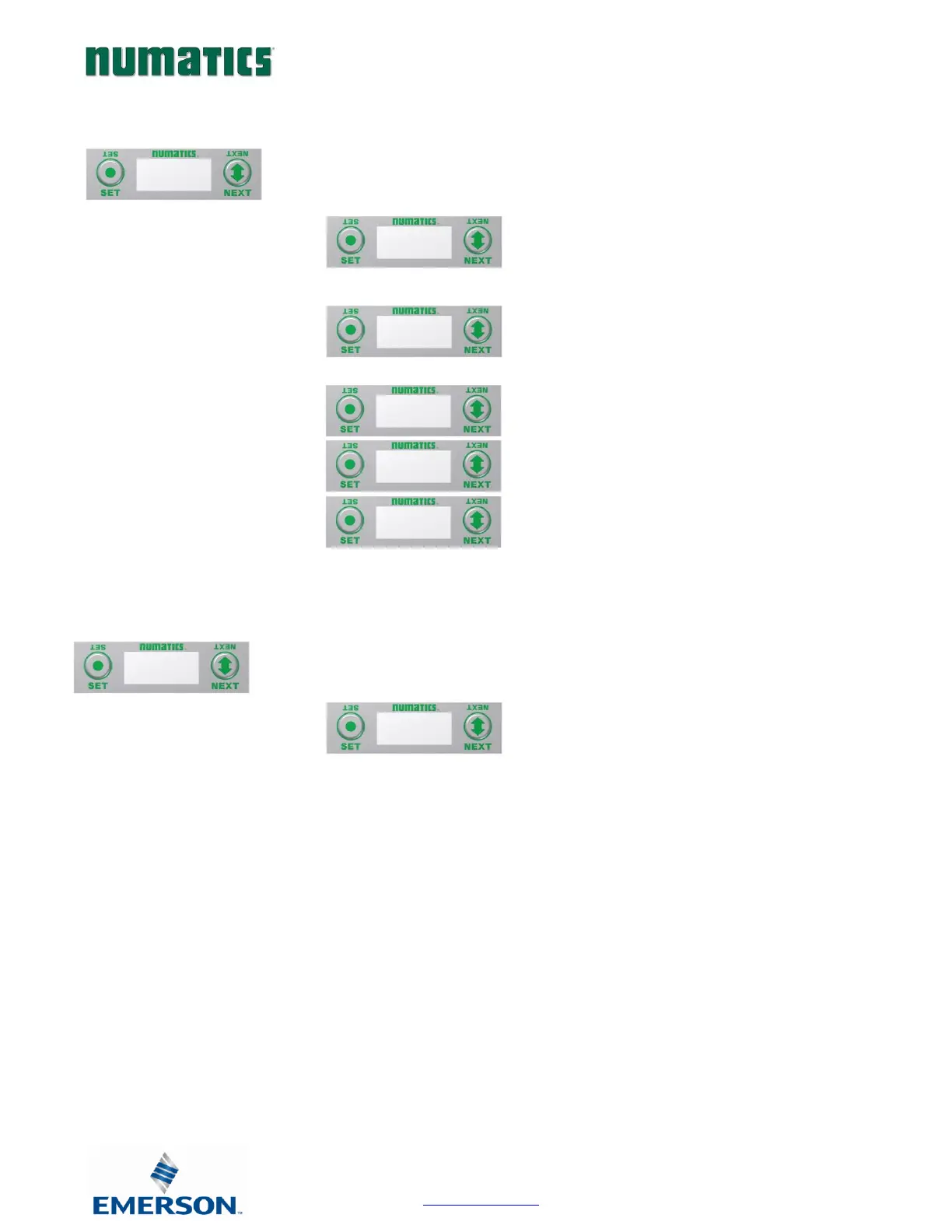

Diagnostics
5) Allows the user to refernce Part No., Firmware Rev.,
and Branch Connections.
A) Press the NEXT button to enter the
Diagnostics sub-menu.
The Part Number screen is displayed
(reference only).
B) Press the NEXT button to advance to
the Firmware revision screen (reference
only).
C) Press the NEXT button to advance to
the Branch Connections screen.
D) Press the SET button to enter the
Branch Connections sub-menu.
E) Press the NEXT button to advance
through the Branches.
Each Branch screen indicates identifys the module numbers that are currently connected to that Branch.
6) Directs the user to the Numatics website.
A) Press the SET button for website
address.
