G3 Series EtherNet/IP
TM
DLR Technical Manual
13-132
TDG3EDM1-6EN 3/18
Subject to change without notice
www.asco.com/g3

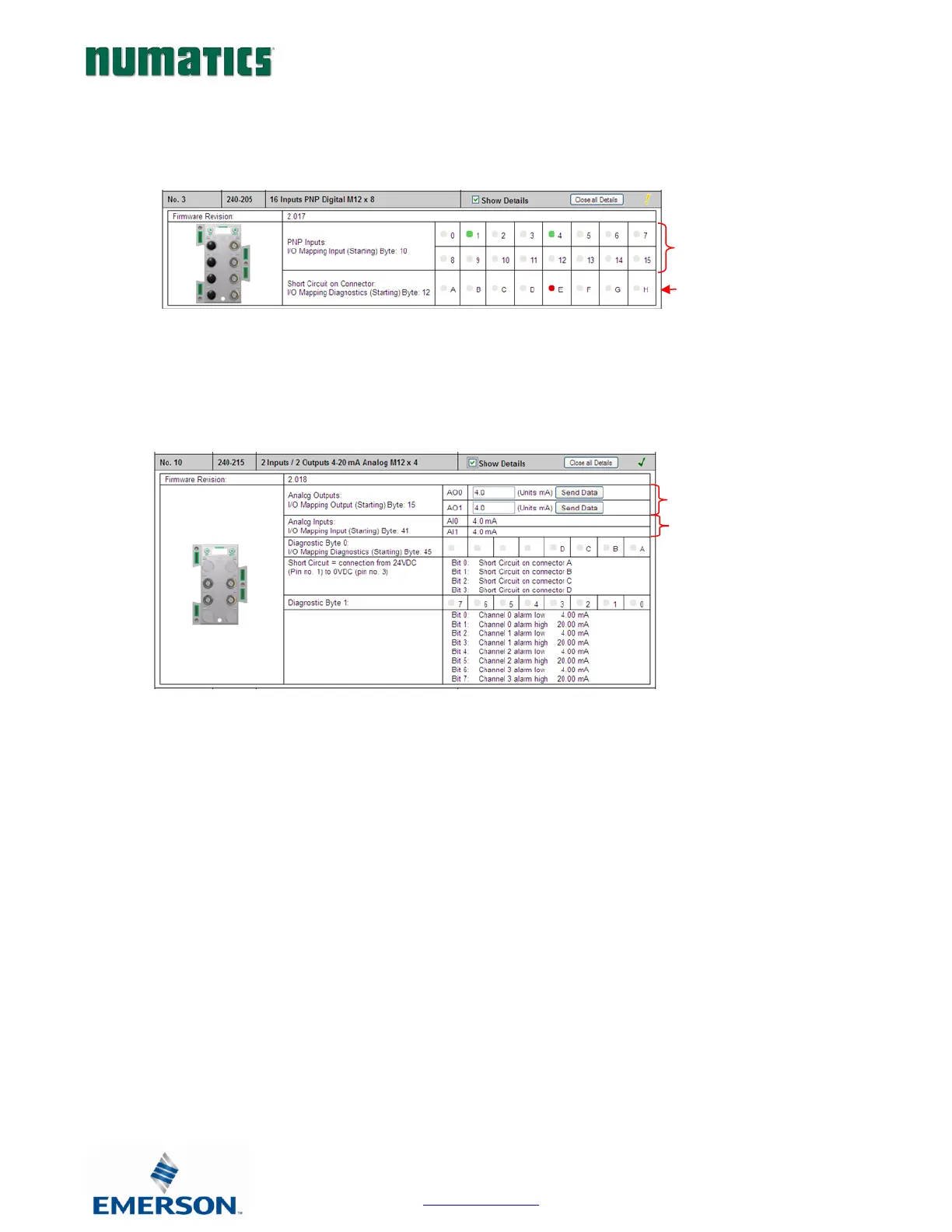

Show Details:
Shows input
signal status
Shows diagnostic
status of source power
to sensor,
“Connector E shorted”
Shows input
signal status
Analog output
forcing capability,
can be disabled
with password
