G3 Series EtherNet/IP
TM
DLR Technical Manual
13-131
TDG3EDM1-6EN 3/18
Subject to change without notice
www.asco.com/g3

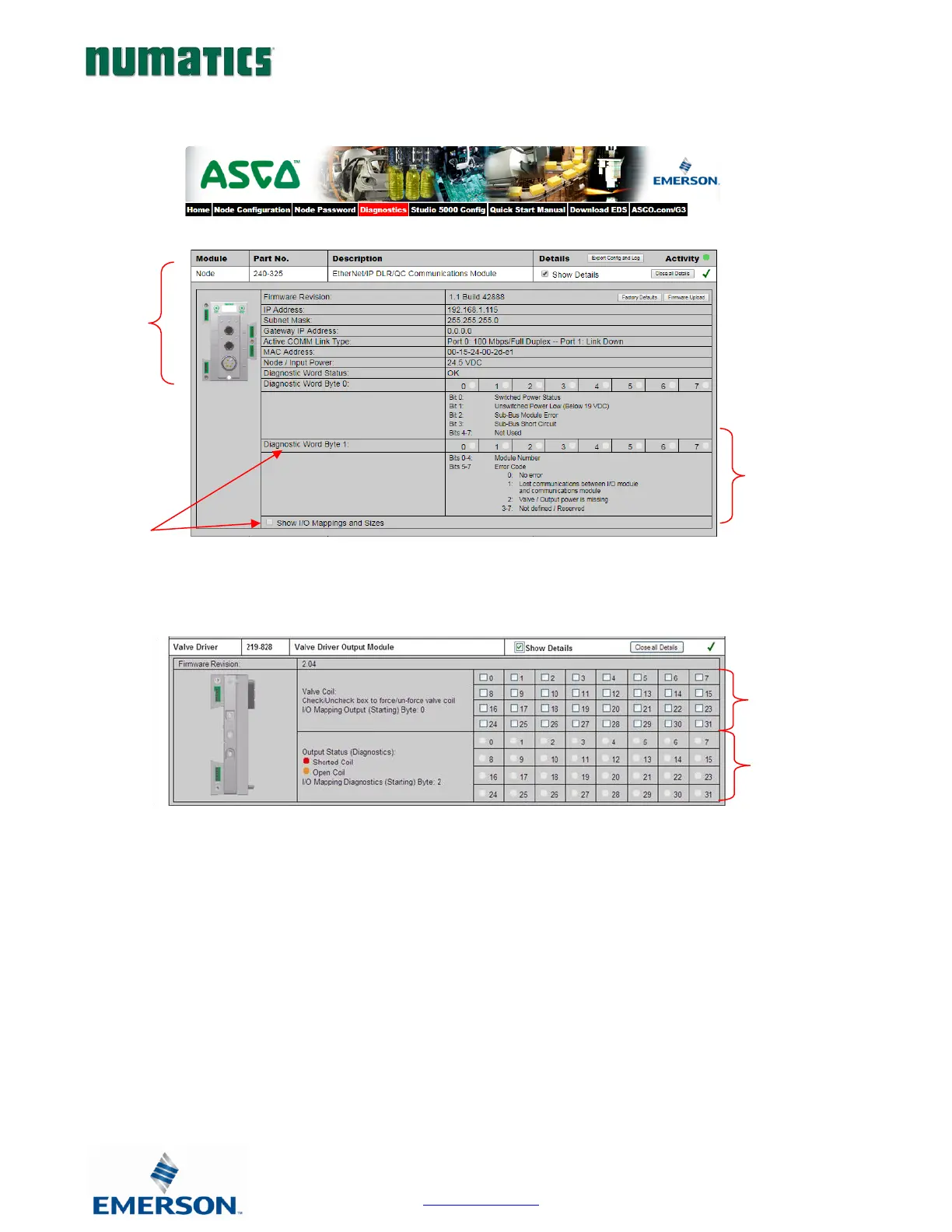

Show Details:
Diagnostic word
information with bit
definitions presently
shows: Error on
Sub-bus, module 16
not communicating.
Relevant node
information
including
firmware
revision
Mapping
position of
“Diagnostic”
word.
Shows diagnostic
status of whether
coils are shorted
or open.
Valve coil forcing
capability. Can
be disabled with
password
