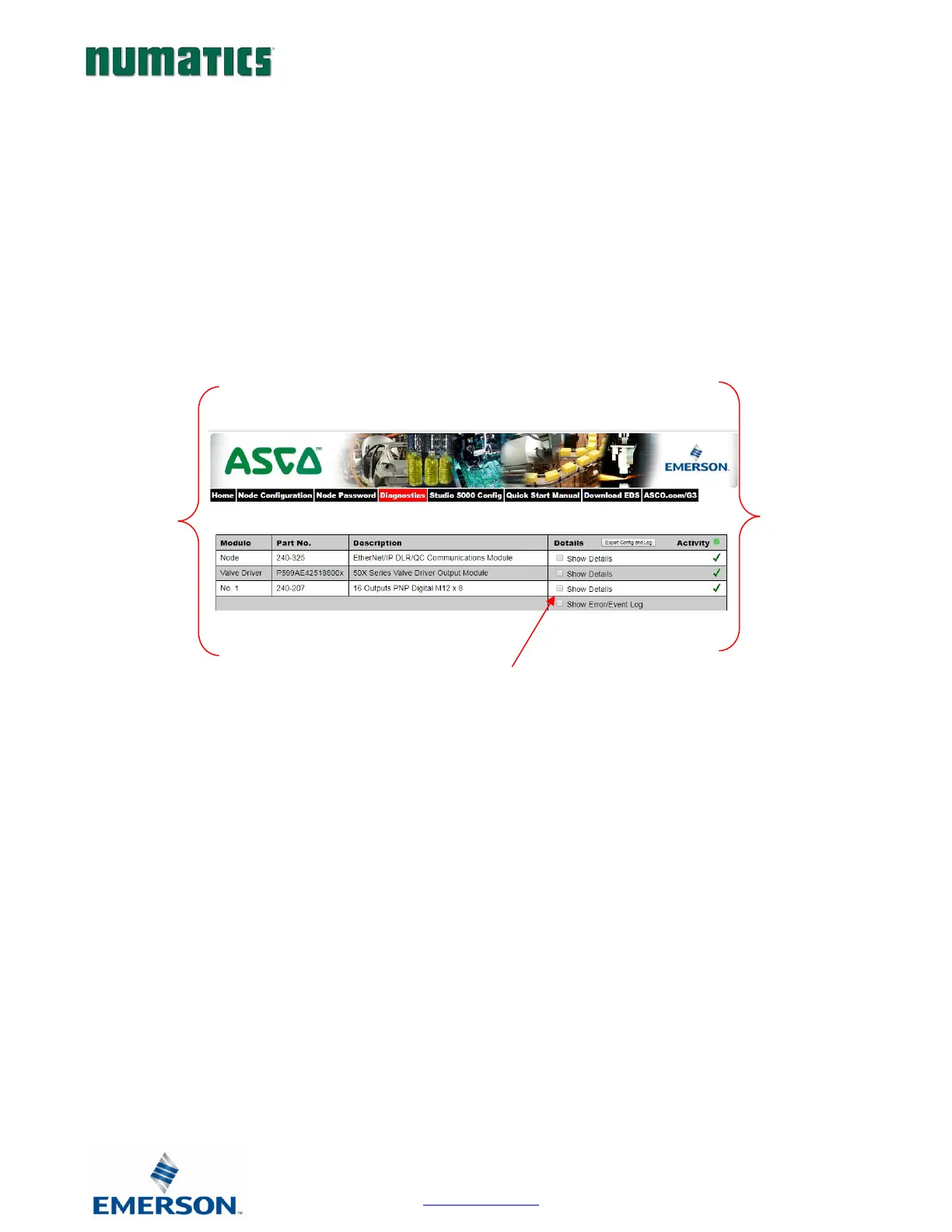

Diagnostics
The “Diagnostics” window allows the user to monitor different values. These values include, “MAC Address”, “Serial Number”,
“Firmware Revision”, and “Valve Diagnostic Table”. The “Valve Diagnostic Table” enables the user to check the status of the
valve side outputs.
Actual
Configuration of
modules with part
numbers and
descriptions
including
distributed
modules
Reports
module status:
✓ = OK
! = Attention
X = Lost comm.
Selects which module details will be shown,
more than 1 can be selected simultaneously.
