G3 Series EtherNet/IP
TM
DLR Technical Manual
15-151
TDG3EDM1-6EN 3/18
Subject to change without notice
www.asco.com/g3

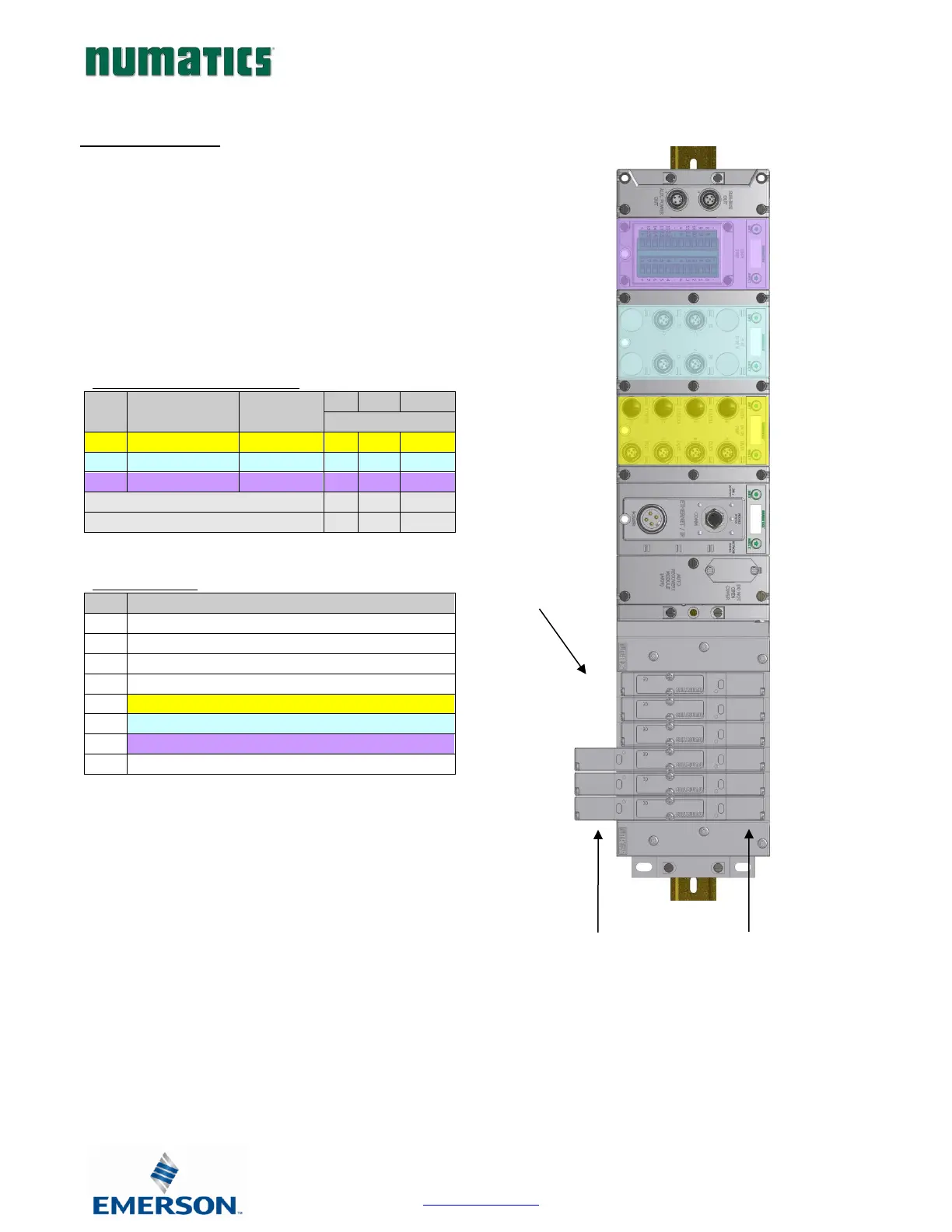

Manifold I/O Configuration
Pos
No.
Module Type
Part No.
In
Out
Diag
Bytes
1
16I PNP
240-205
2
0
1
2
4AI Analog
240-212
8
0
2
3
16I PNP
240-203
2
0
1
Diagnostic Word
0
0
2
Local Valves:
0
4
4
Total:
12
4
10
How to Order
Qty
Part Number
1
AK3EF00003NDRM
3
051BA4Z2MN00061
3
051BB4Z2MN00061
1
G3EP103D0G32
1
240-205
1
240-212
1
240-203
ASSEMBLED
Assumed Settings
15.6 Example No. 3
- Double Z-Boards
TM
used with all valves
- I/O Modules and mapping schemes are identified by
their corresponding color.
- I/O Status bits are enabled
- Diagnostic Word is enabled
When the 14 End
Solenoid is
energized, the 4 port
is pressurized
When the 12 End
Solenoid is
energized, the 2 port
is pressurized
0
2
4
6
8
10
1
3
5
7
9
11
Valve Coil
Number
