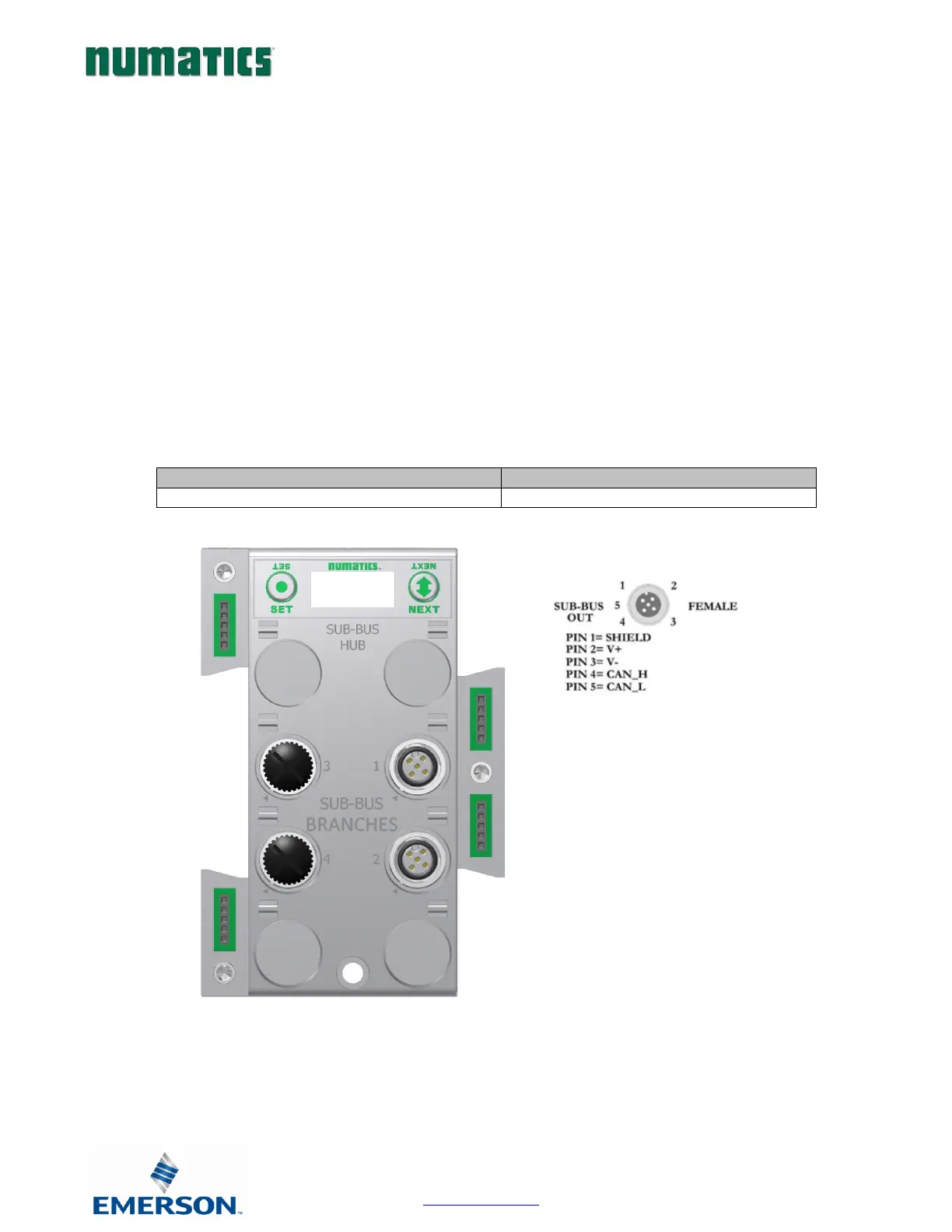

Sub-Bus Hub Module
• Used when distributing the Sub-Bus to another assembly.
• SUB-BUS OUT - 5 pin M12 female communication connector.
• Used to distribute the Sub-Bus to the next Sub-Bus assembly.
• Carries 24 VDC power (up to 3A) for electronics of the next module.
• Cannot connect a Hub to a branch of another Hub
• Each branch of the Hub can accommodate a sub-bus cable length of 30 meters.
The G3 HUB module allows for branch distribution from the I/O side of the G3 System and can be
integrated into the existing G3 Series Sub-Bus configuration. Auto Addressing allows for trouble free set
up and configuration. Input, Output, as well as Valve manifolds can be attached to the available four
Branches on a HUB module. Each G3 System can support up to two HUB modules, allowing for maximum
flexibility. The HUB module is transparent to the I/O side of the G3 and does not reserve one of the
potential sixteen positions.
