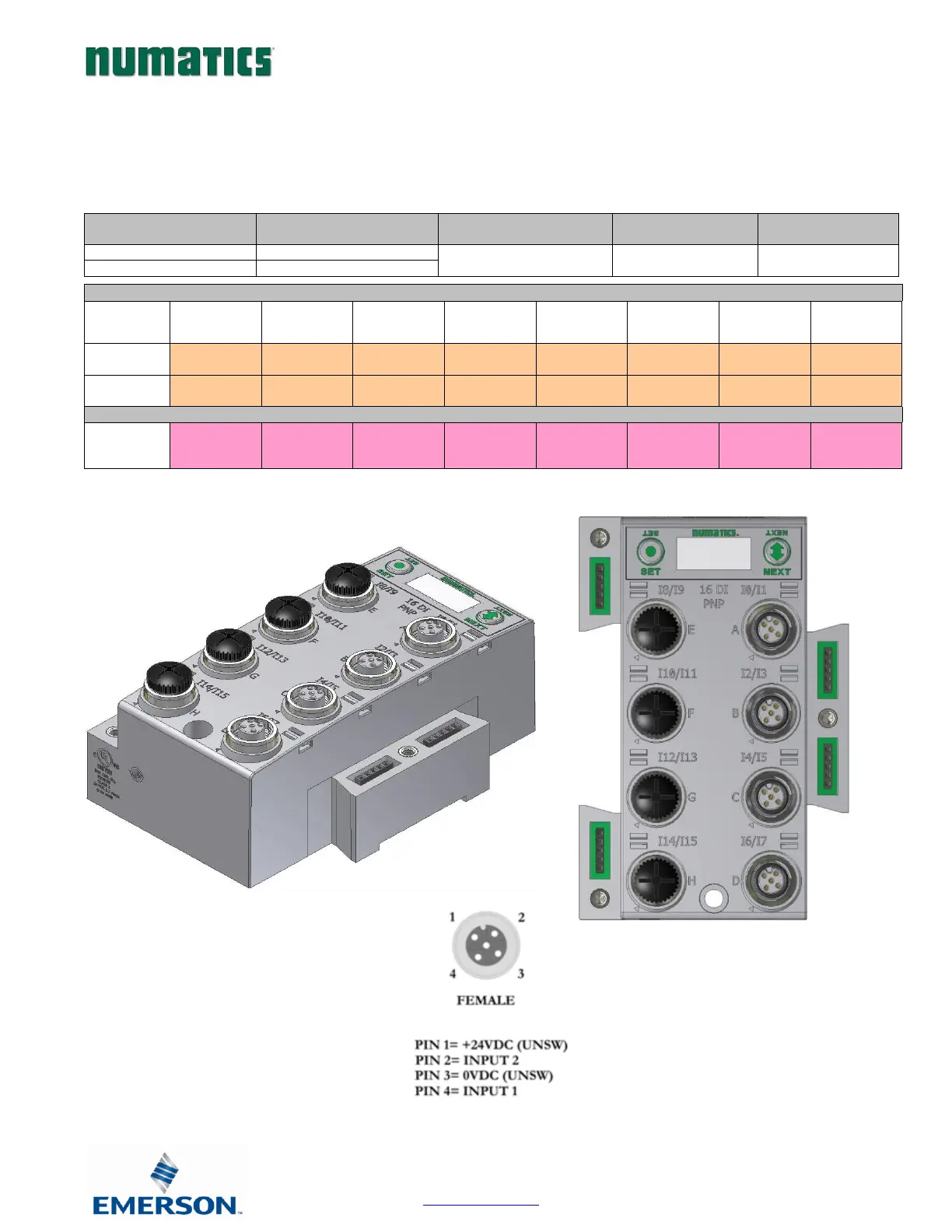

Two Digital Inputs per Connector – M12 Female Modules
Module
Part No.
I/O Type
Short Circuit Protection
Short Circuit
Protection Status Bits
Input Points
240-209
NPN (Sinking)
YES – Visual
YES – Optional
16
240-205
PNP (Sourcing)
Input Mapping
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
(Required)
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
Input 0
X+1
(Required)
Input 15
Input 14
Input 13
Input 12
Input 11
Input 10
Input 9
Input 8
Diagnostics
X
(Selectabl
e)
Conn. H
SCP Status
Conn. G
SCP Status
Conn. F
SCP Status
Conn. E
SCP Status
Conn. D
SCP Status
Conn. C
SCP Status
Conn. B
SCP Status
Conn. A
SCP Status
