Numatics G3 Series - Page 65

G3 Series EtherNet/IP
TM
DLR Technical Manual
7-65
TDG3EDM1-6EN 3/18
Subject to change without notice
www.asco.com/g3
240-203
PNP (Sourcing)
YES
Visual and
Logical Status Bits
4 user enabled bits
monitor Short Circuits on
the four different + voltage
connections of terminal
strip
16
240-204
NPN (Sinking)

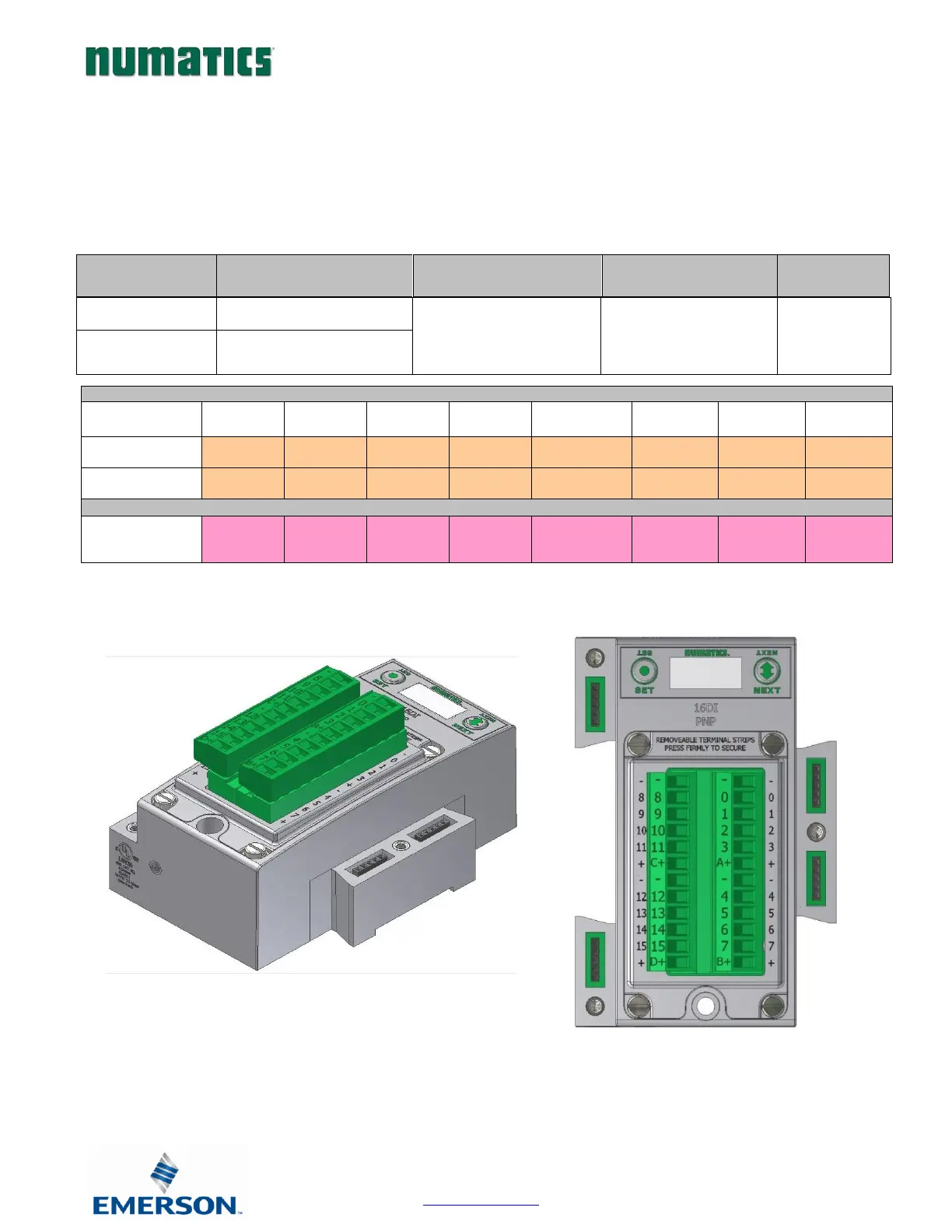

Sixteen Digital Inputs – Terminal Strip Modules
Specifications
- Wire Range: 12 to 24 AWG
- Strip Length: 7mm
- Tightening Torque: 0.5 Nm
Module
Part No.
I/O Type
Short Circuit Protection
Short Circuit Protection
Status Bits
Input Points
Input Mapping
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
(Required)
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
Input 0
X+1
(Required)
Input 15
Input 14
Input 13
Input 12
Input 11
Input 10
Input 9
Input 8
Diagnostics
X
Allocated
and
Reserved
Allocated
and
Reserved
Allocated
and
Reserved
Allocated
and
Reserved
SCP Status
1 = Fault
+D
SCP Status
1 = Fault
+C
SCP Status
1 = Fault
+B
SCP Status
1 = Fault
+A
