Numatics G3 Series - Page 66

G3 Series EtherNet/IP
TM
DLR Technical Manual
7-66
TDG3EDM1-6EN 3/18
Subject to change without notice
www.asco.com/g3
240-316
PNP (Sourcing)
YES
YES
8
Input Mapping
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
Input 0
Diagnostic Telegram
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
(Selectable)
Input 7
SCP Status
Input 6
SCP Status
Input 5
SCP Status
Input 4
SCP Status
Input 3
SCP Status
Input 2
SCP Status
Input 1
SCP Status
Input 0
SCP Status

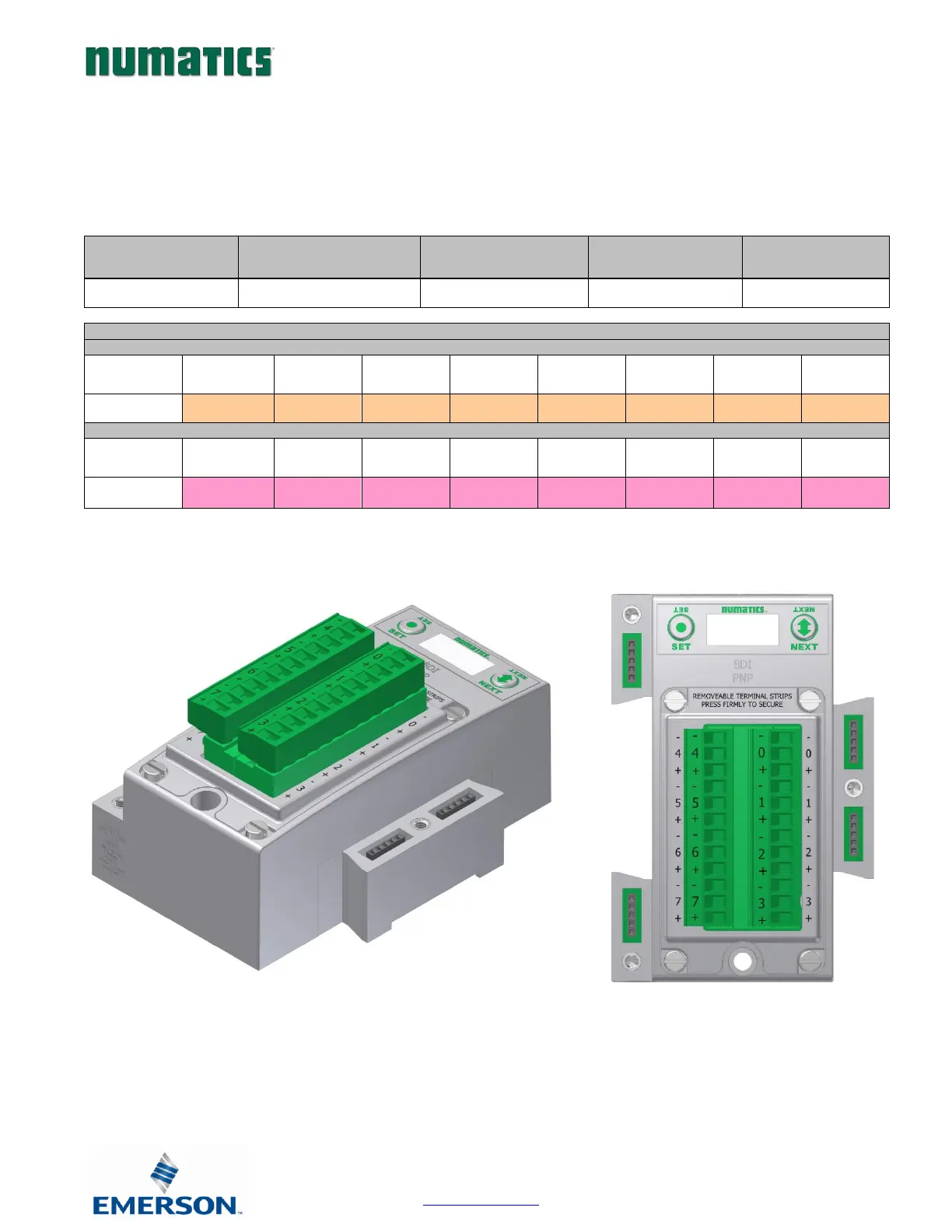

Eight Digital Inputs – Terminal Strip Modules
Specifications
- Wire Range: 12 to 24 AWG
- Strip Length: 7mm
- Tightening Torque: 0.5 Nm
Module
Part No.
I/O Type
Short Circuit Protection
Short Circuit Protection
Status Bits
Input Points
