Nvidia JETSON NANO Product Design Guide

Power
NVIDIA Jetson Nano DG-09502-001_v2.1 | 13

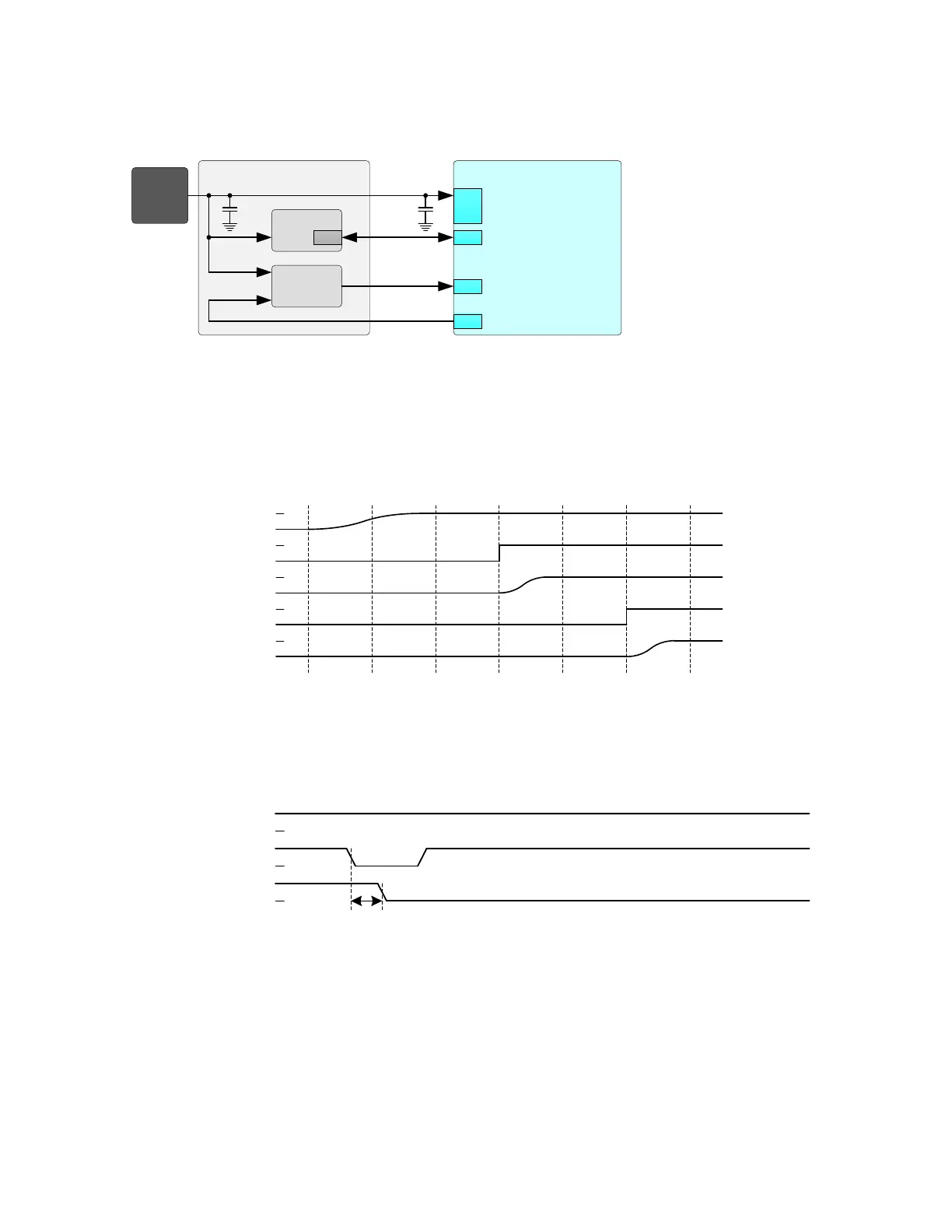

Figure 5-2. System Power and Control Block Diagram
Carrier Board
Main 5V
Power
Source
Sup plies
Jetson Nano
Power
Logic
POWER_EN
251
↓
260
237
233
SHUTDOWN_REQ*
239
SYS_RESET*
VDD_IN
EN
Figure 5-3. Power Up Sequence
POWER_E N
VDD_IN
Carrier Board Supplies
Module P ower
SYS_RESET*
Power-up Sequence (No Power Button – Auto-Power-On Enabled)
Figure 5-4. Power Down – Initiated by SHUTDOWN_REQ* Assertion)
POWER_E N
SHUT DOW N_R EQ*
VDD_IN
T < 10uS

Nvidia JETSON NANO Specifications

General

GPU	128-core NVIDIA Maxwell
Memory	4 GB LPDDR4
Storage	16 GB eMMC 5.1
Video Encode	4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Dimensions	100 mm x 80 mm x 29 mm
CPU	Quad-core ARM Cortex-A57
Video Decode	4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
Connectivity	Gigabit Ethernet
Display	HDMI 2.0
USB	USB 3.0
Other	GPIO, I2C, SPI, UART
Operating System	Linux
Power	5V
Camera	12x (MIPI CSI-2) DPHY lanes
