USB and PCI Express

NVIDIA Jetson Nano DG-09502-001_v2.1 | 21

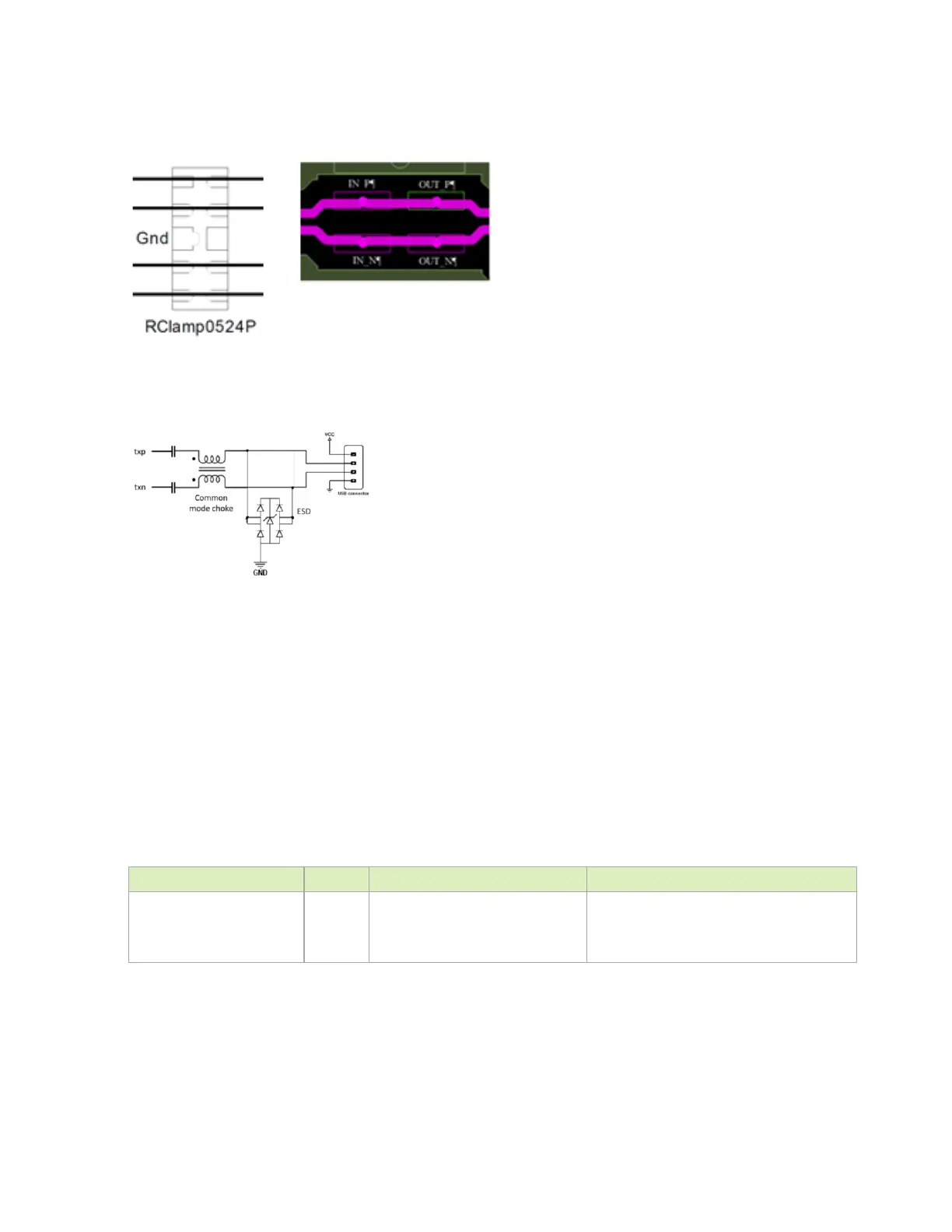

Figure 6-5. ESD Layout Recommendations

Figure 6-6. Component Order

6.1.3 Common USB Routing Guidelines

If routing to USB device or USB connector includes a flex or 2nd PCB, the total routing

including all PCBs/flexes must be used for the max trace and skew calculations.

Keep critical USB related traces away from other signal traces or unrelated power

traces/areas or power supply components.

Table 6-6. Tegra USB 2.0 Signal Connections

Jetson Nano Ball Name Type Termination Description

USB[2:0]_D_P

USB[2:0]_D_N

DIFF I/O 90Ω common mode chokes close to

connector. ESD Protection between

choke and connector on each line to

GND

USB Differential Data Pair: Connect to USB

connector, Mini-Card socket, hub or another

device on the PCB.
