Nvidia JETSON NANO - Figure 7-13. Add-On Components - Bottom; Figure 7-14. AC Cap Void; Figure 7-15. RPD, Choke, FET Placement; Figure 7-16. ESD Footprint

84 pages

To Next Page

To Previous Page

Display

NVIDIA Jetson Nano DG-09502-001_v2.1 | 42

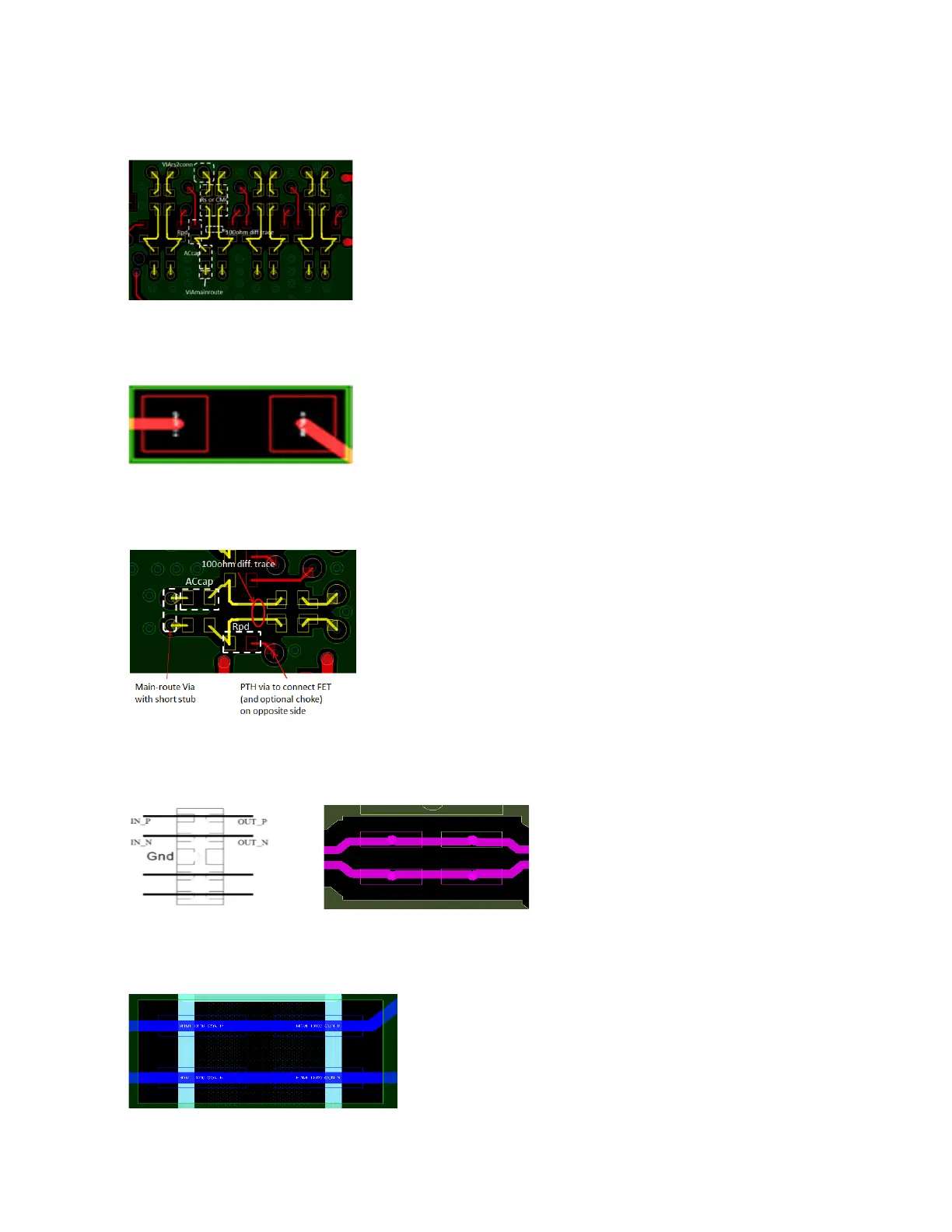

Figure 7-13. Add-on Components – Bottom

Figure 7-14. AC Cap Void

Figure 7-15. RPD, Choke, FET Placement

Figure 7-16. ESD Footprint

Figure 7-17. ESD Void
