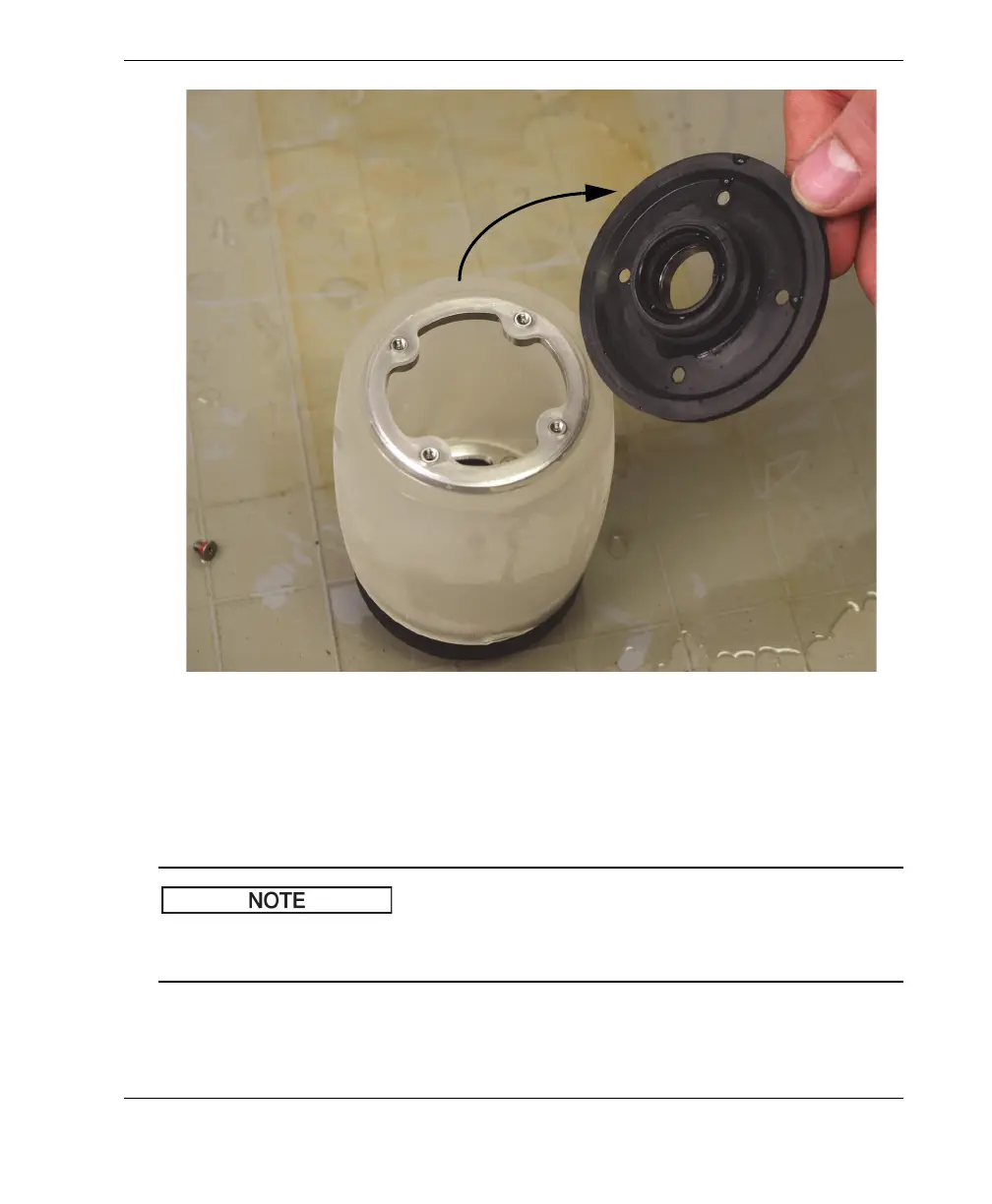

Figure 6-25 Removing the acoustic wheel plain flange
3. The four captive retaining screws of the ring that holds the flange with the liquid-
control valves are accessed from inside the liquid chamber. Loosen these retaining
screws (see Figure 6-26 on page 100).
Do not remove the four screws on the outside of the flange on the probe-cable side.
These screws are covered with a sticker and are never to be removed from this flange.
