Olympus RollerFORM - Figure 6-35 Installing the Bushing on the End of the Probe-Axle

DMTA-20073-01EN, Rev. C, November 2015
Chapter 6 108

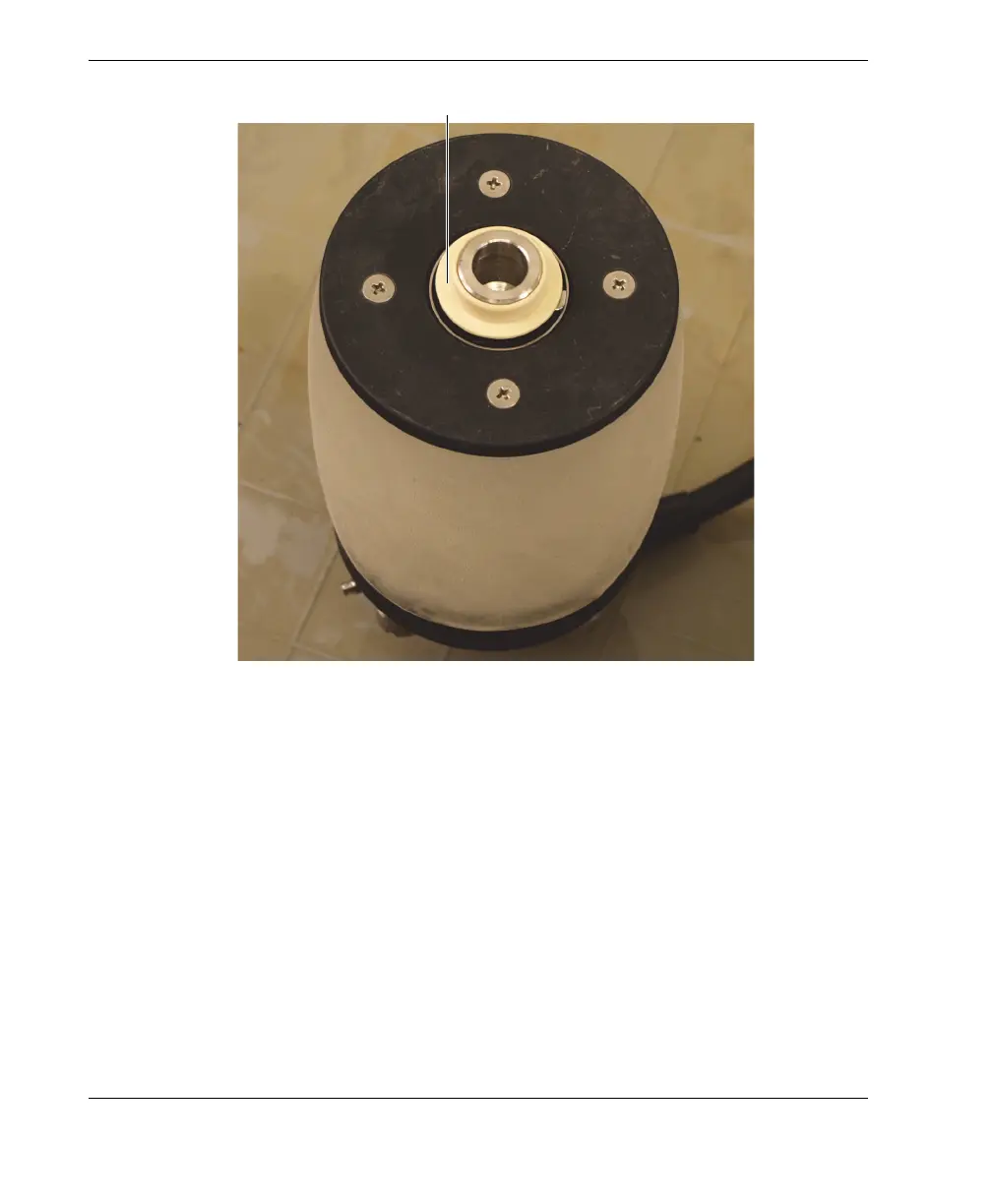

Figure 6-35 Installing the bushing on the end of the probe-axle
3. Install the acoustic wheel in the seats on the RollerFORM frame. Take care to
insert it with the probe cable on the side of the alternate encoder holder (see
Figure 6-36 on page 109).
Bushing on the end of the probe-axle
