Olympus RollerFORM - Figure 6-27 Pushing a Ring out of Its Retaining Groove; Figure 6-28 Removing a Ring out of the Tire

DMTA-20073-01EN, Rev. C, November 2015
Maintenance 101

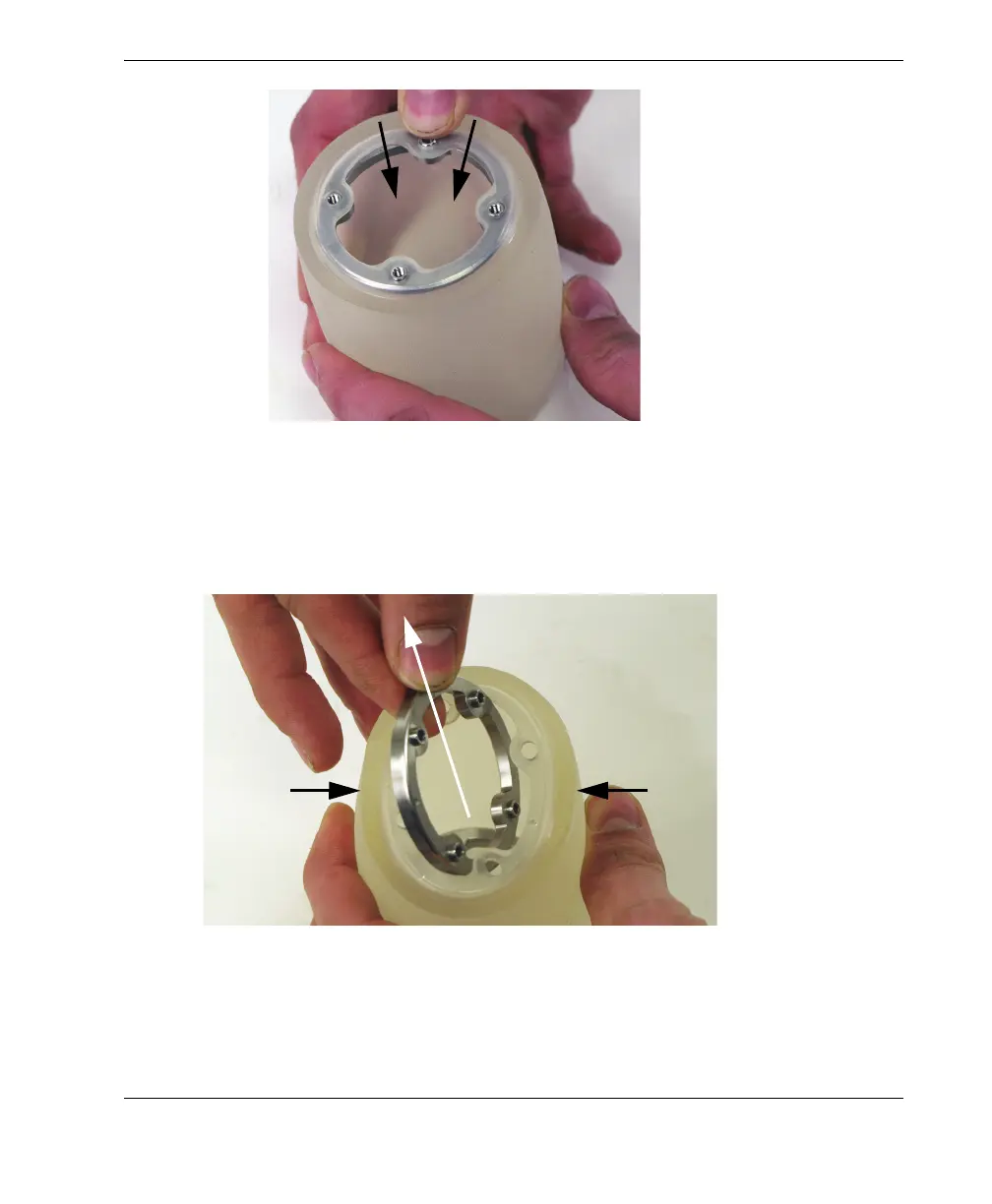

Figure 6-27 Pushing a ring out of its retaining groove
b) Turn the freed stainless steel ring at a 90-degree angle inside the tire, to align
it parallel to the tire’s axis inside the tire (see Figure 6-28 on page 101).
Figure 6-28 Removing a ring out of the tire
Pushing the tire lip and
the ring inward
Squeezing the tire to
widen the opening
and pulling out the
ring
