Olympus RollerFORM - Figure 8-1 Rollerform - Exploded View; Table 6 Rollerform Spare Parts

DMTA-20073-01EN, Rev. C, November 2015
Chapter 8 144

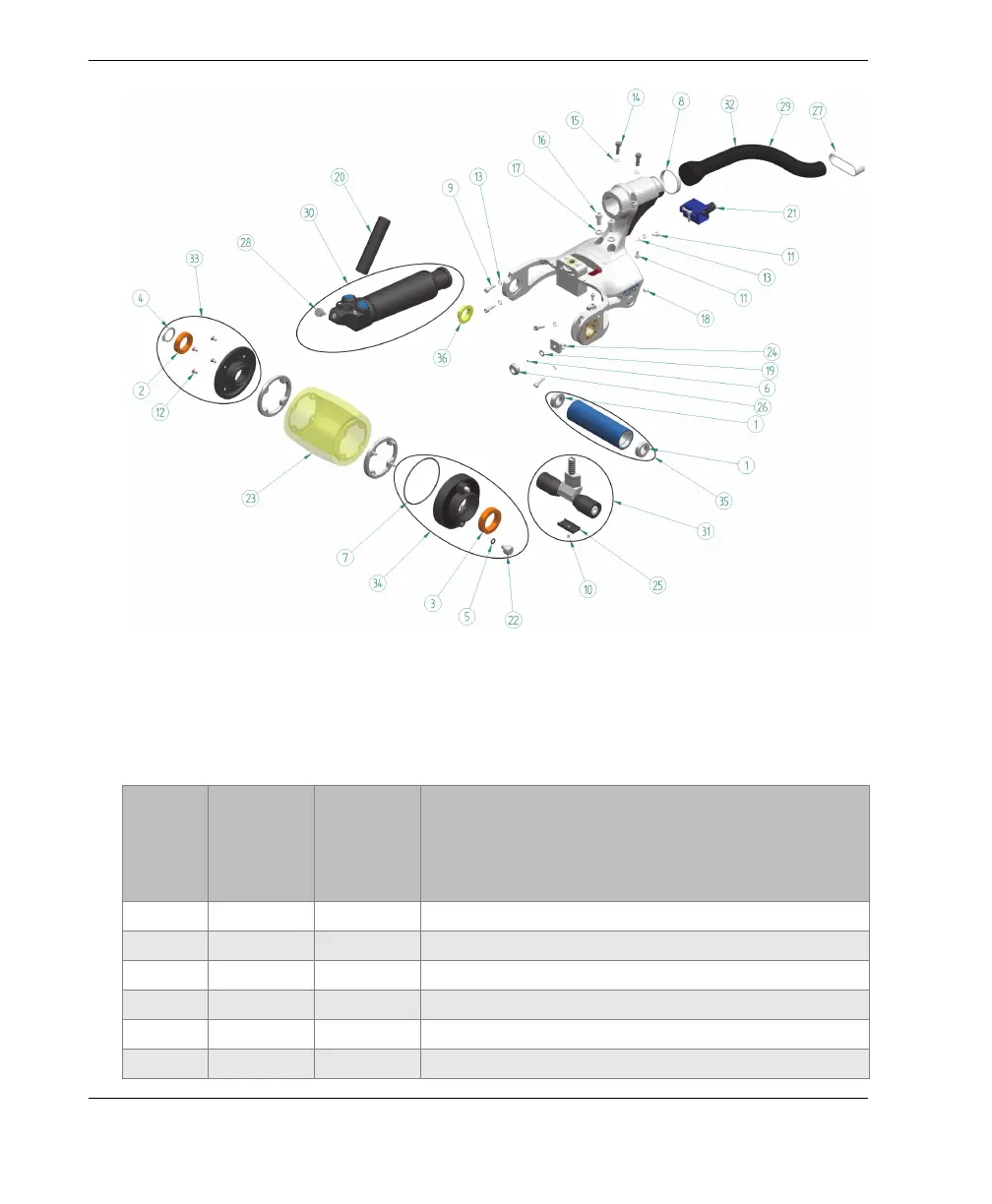

Figure 8-1 RollerFORM — Exploded view
Table 6 RollerFORM spare parts
Drawing
number
Item
number
Quantity
(included
in kit
KITX0409
[Q7750007])
Description
1 Q8300190 — BEARING ID10MM OD19MM W5MM
2 Q8300191 — BEARING ID-17MM OD-26MM W-5MM SEALED
3 Q8300192 — BEARING ID-22MM OD-31MM W-7MM SEALED
4 Q8300193 5 STAINLESS EXTERNAL RETAINING RING 16MM
5 Q8300194 2 O-RING ID-4MM OD-7MM W-1.5MM
6 Q8300223 2 O-RING ID-1.5MM OD-3.5MM W-1MM
