Olympus RollerFORM User Manual

DMTA-20073-01EN, Rev. C, November 2015
Maintenance 133

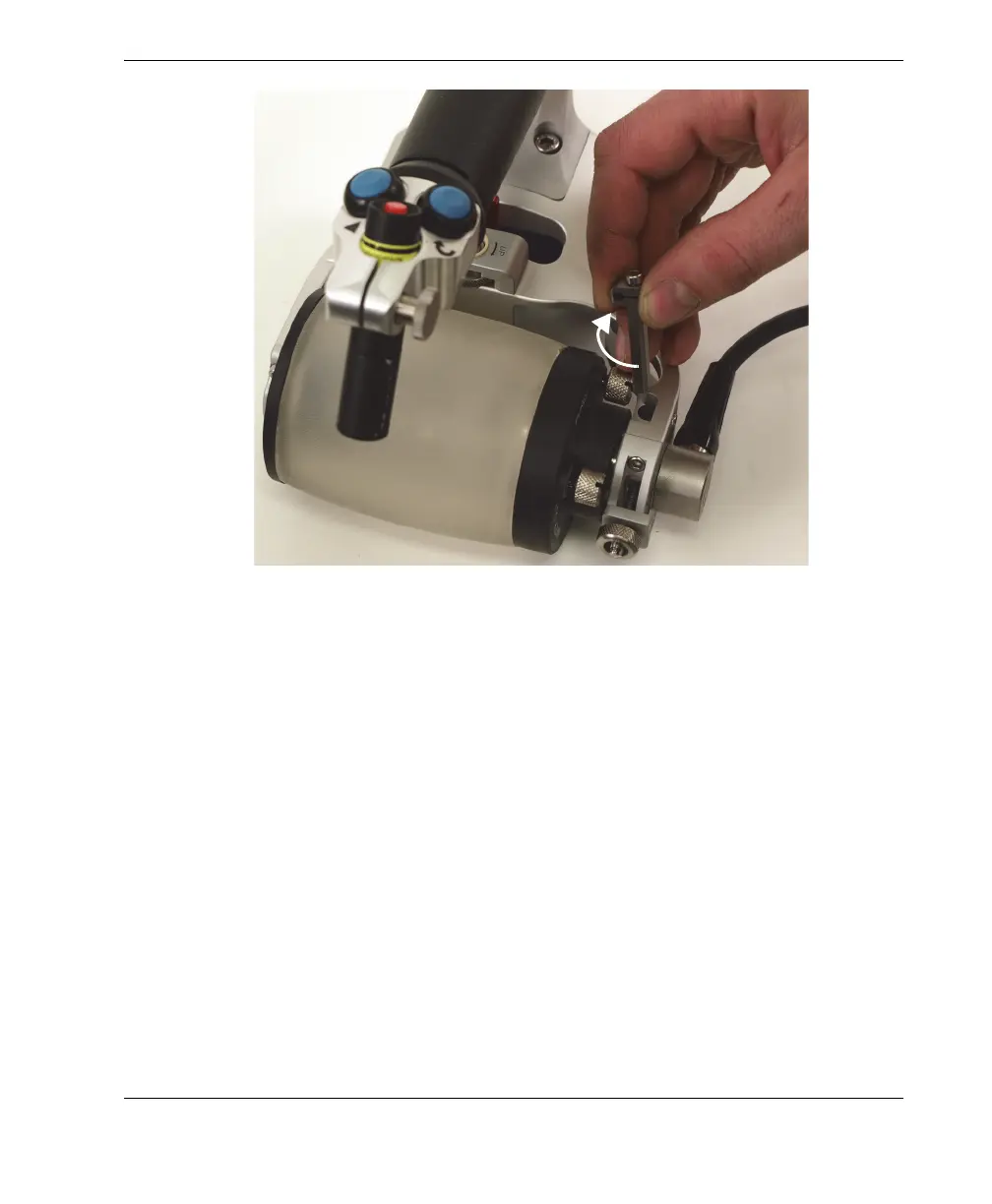

Figure 6-59 Removing and pivoting the alternate encoder holder 90°
10. Pivot the alternate encoder holder 90° so that the encoder retainer hole is aligned
with the RollerFORM’s movement axis, reinsert the encoder holder in the storage
cavity, and then tighten the retaining screw that fixes the encoder holder to the
acoustic wheel mount.
11. Install the Mini-Wheel encoder on the encoder holder (see Figure 6-60 on
page 134).
