Figure 6-10 Installing the external retaining C-clip on the probe-axle end
3. Still holding the acoustic wheel vertically, rest it on a hard and flat surface (probe-
cable side down), and then use the C-clip installation tool to gently push down on
the C-clip to ensure that it is properly seated in the groove (see Figure 6-11 on
page 83).
You should hear a clicking sound when the C-clip enters the groove.
The C-clip installation tool is included with the RollerFORM, and is a sleeve with a
hollow center that goes around the end of the probe-axle, used to apply down force
directly on the c-clip to push it in place in the groove.

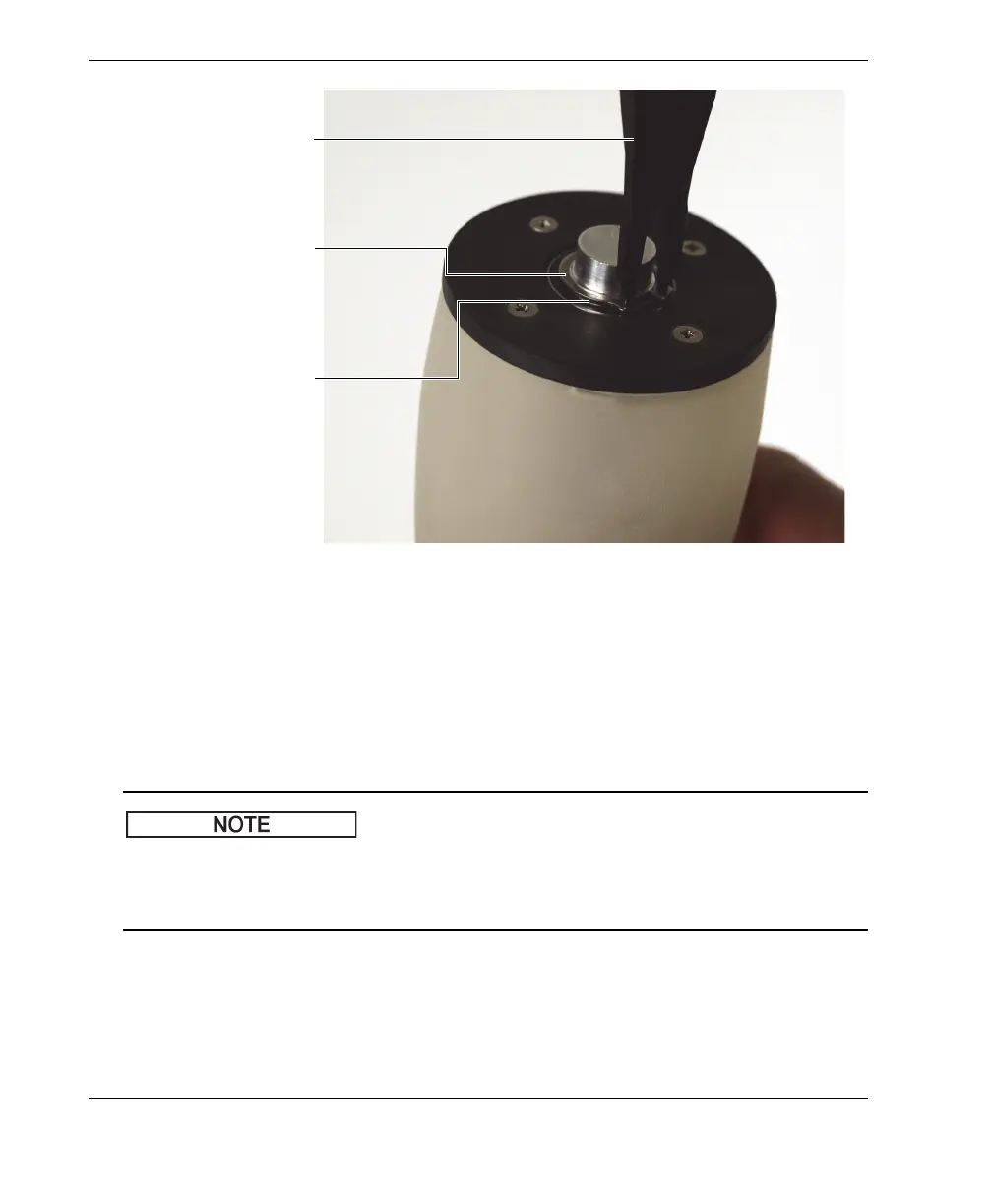

Retaining C-clip on
shoulder above the
groove on the end of the
probe-axle
Retaining C-clip pliers
Groove on the end of the
probe-axle
