Olympus RollerFORM - Figure 6-2 Removing the Acoustic Wheels Holding Brackets

DMTA-20073-01EN, Rev. C, November 2015
Maintenance 73

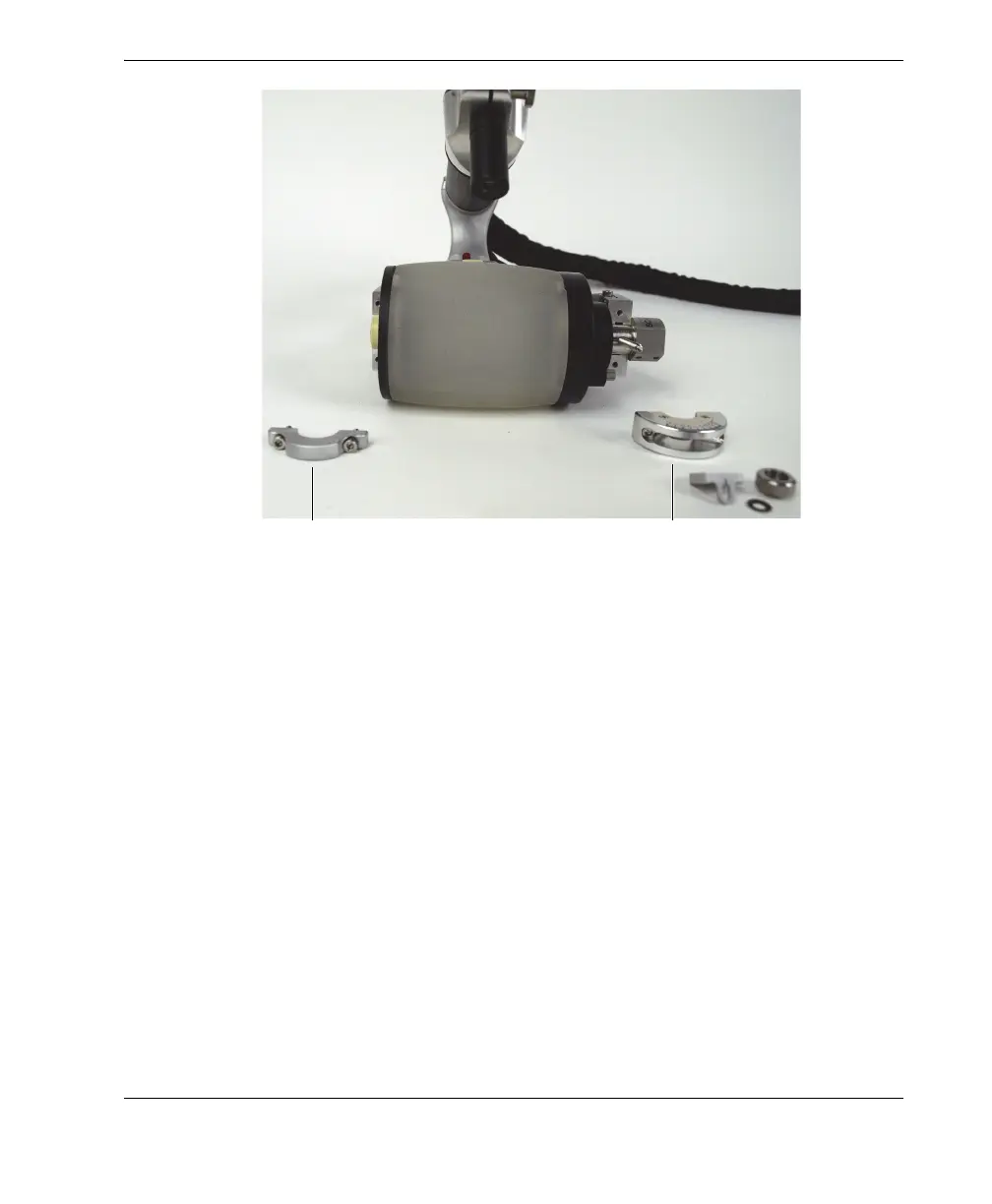

Figure 6-2 Removing the acoustic wheel’s holding brackets
3. Remove the acoustic wheel from the RollerFORM frame, taking care not to pull or
pinch the probe cable (see Figure 6-3 on page 74).
Probe-cable side tire-holding bracket with two
half-bushings and angle markings
Tire-holding bracket on the
plain flange side
