Olympus RollerFORM - Figure 6-47 Tightening the Screw of the Alternate Encoder Holder

DMTA-20073-01EN, Rev. C, November 2015
Chapter 6 120

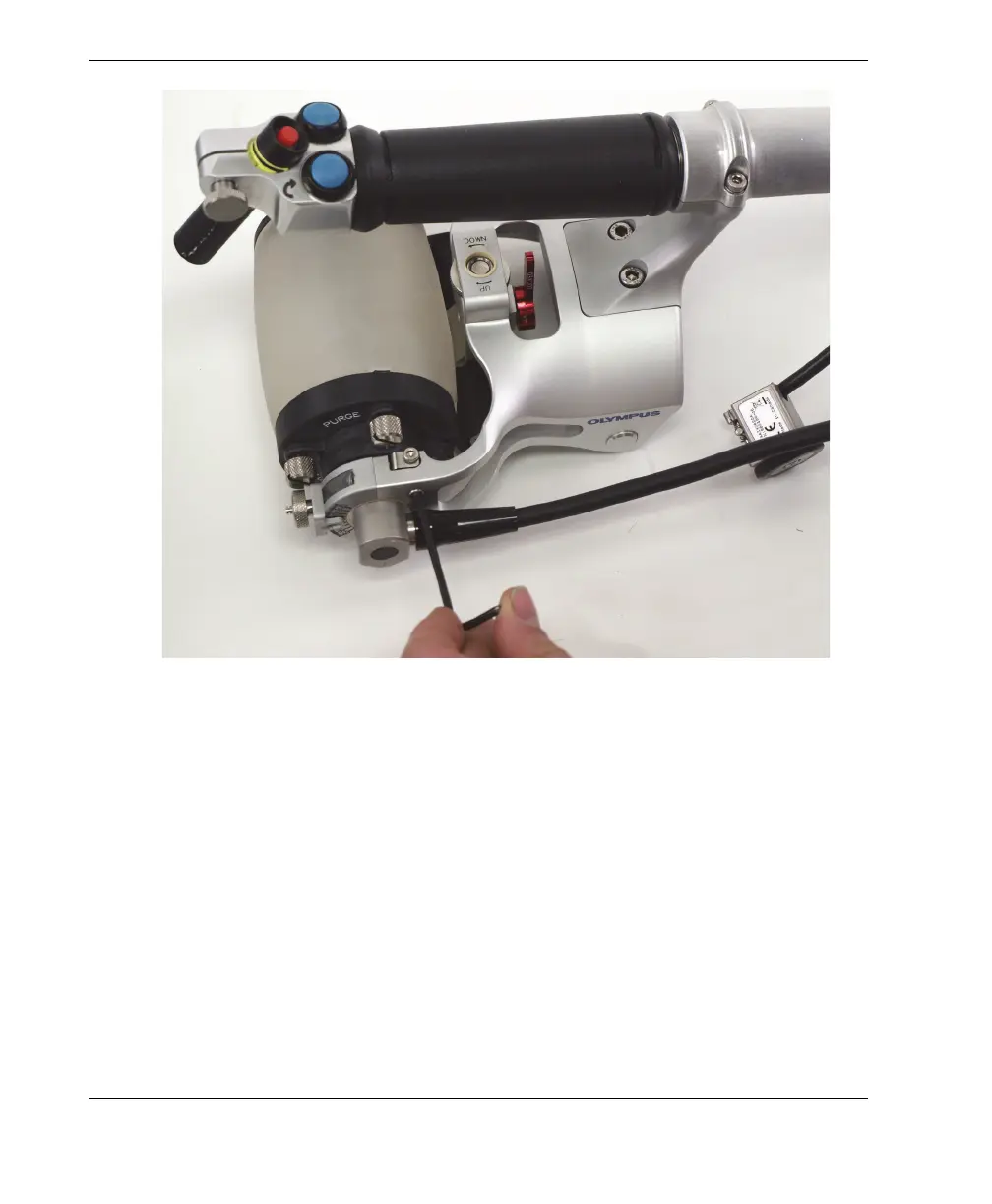

Figure 6-47 tightening the screw of the alternate encoder holder
The Mini-Wheel encoder’s removal procedure is complete. To install a Mini-Wheel
encoder, see “Installing the Mini-Wheel Encoder on the Rear Roller” on page 121.
