DMTA-20073-01EN, Rev. C, November 2015
Maintenance
89

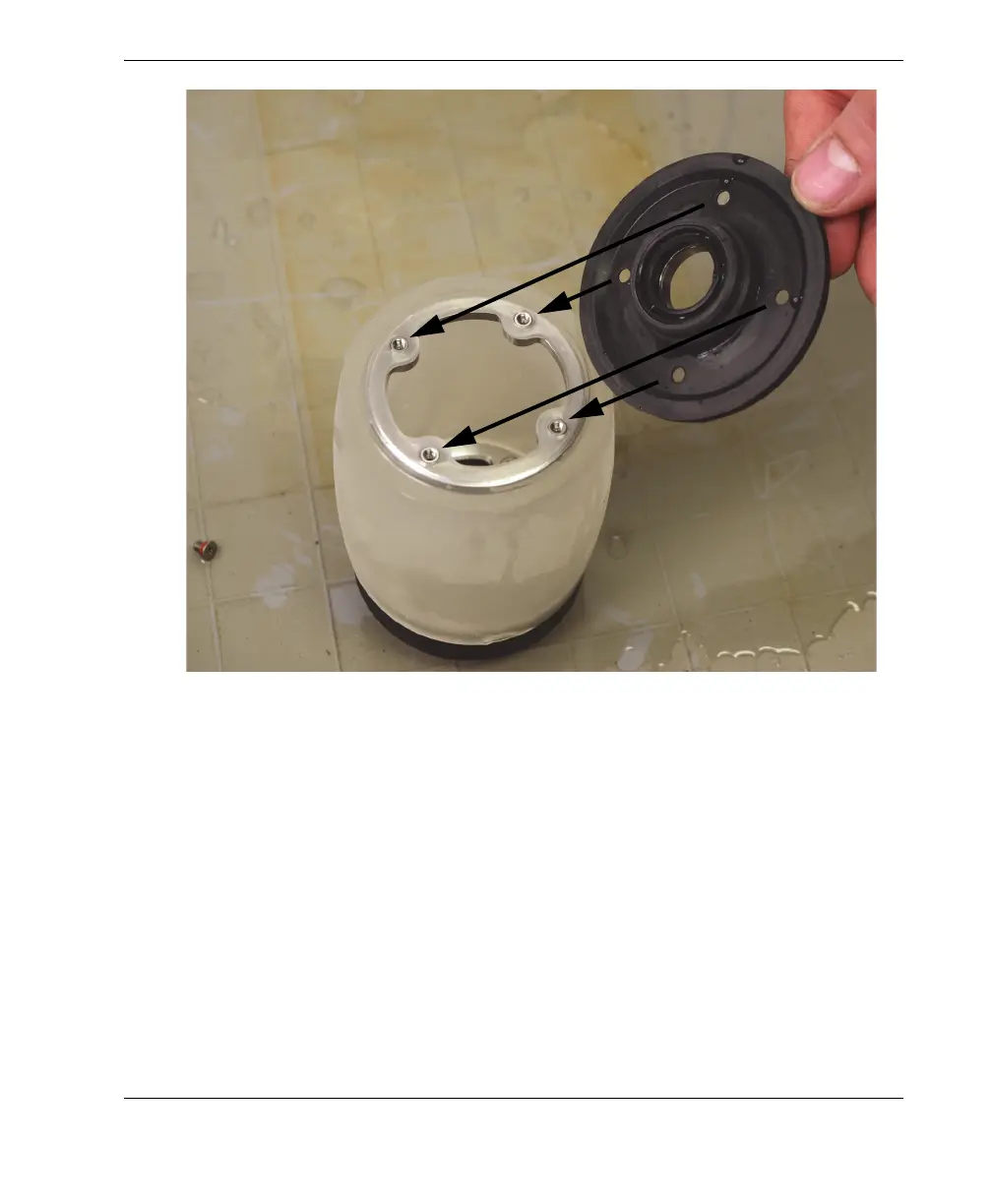

Figure 6-16 Installing the plain flange
6. Install the four screws and their gaskets on the flange, and, using a cross pattern,
tighten the four screws, first lightly, and then tightly.
7. Install the probe inside the acoustic wheel. For more information, see “Installing
the Probe in the Acoustic Wheel” on page 80.
8. Install the acoustic wheel on the RollerFORM. For more information, see
“Installing the Acoustic Wheel on the RollerFORM Scanner” on page 107.
9. Fill the liquid chamber. For more information, see “Filling the Acoustic Wheel’s
Liquid Chamber” on page 39.
