Olympus RollerFORM User Manual

DMTA-20073-01EN, Rev. C, November 2015
Chapter 6 80

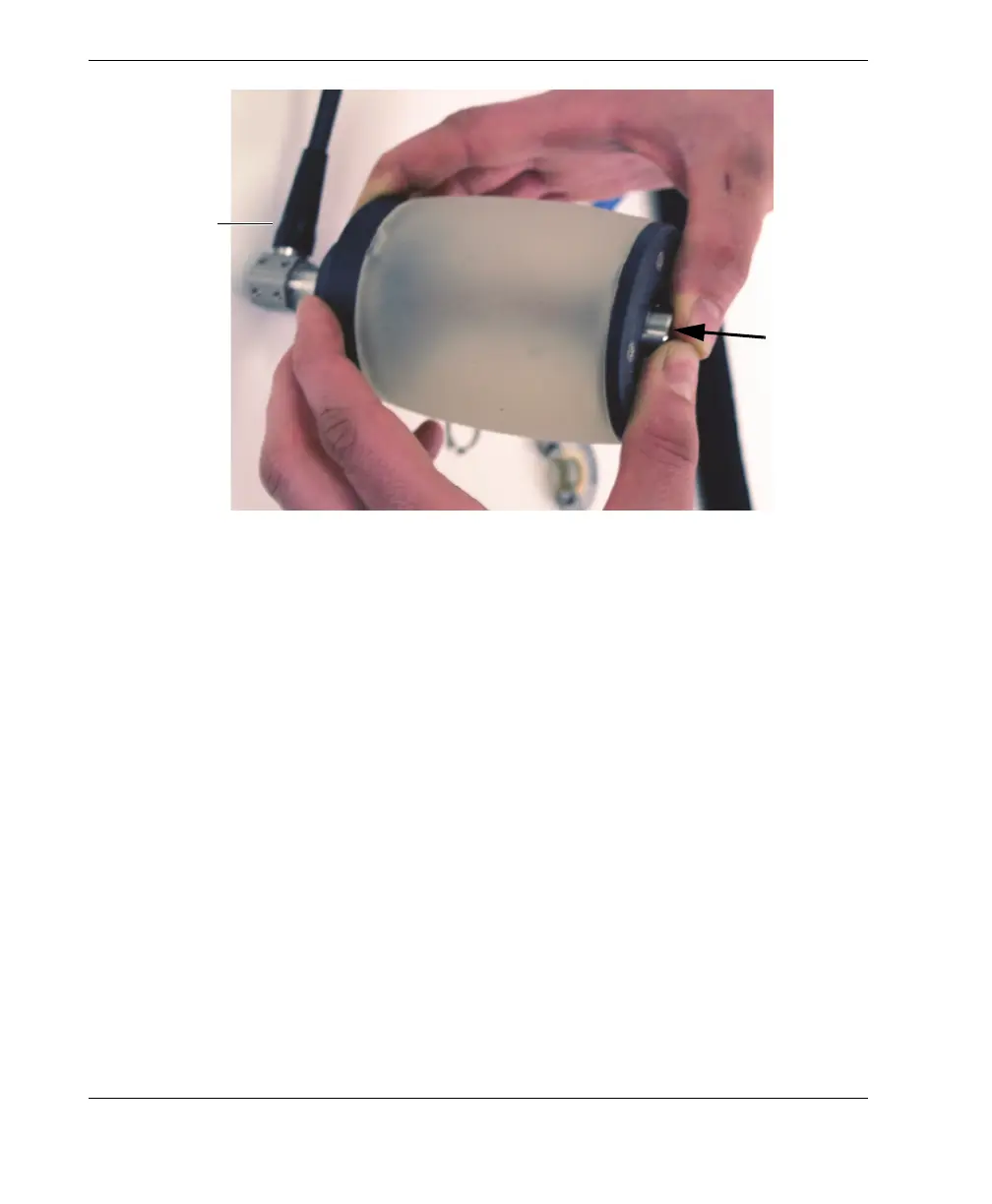

Figure 6-8 Pushing the probe-axle out of the acoustic wheel
6.3.2 Installing the Probe in the Acoustic Wheel
When installing the probe-axle in the RollerFORM’s acoustic wheel, take great care
not to damage the probe elements.
To install the probe-axle in the acoustic wheel
1. Insert the axle containing the probe inside the acoustic wheel through the flange
with liquid-control valves (see Figure 6-9 on page 81).
Carefully thread the axle-end through to the flange on the opposite side of the
acoustic wheel, and insert it into the hole.
Probe cable
Push the
probe-axle
out of the
acoustic
wheel.
